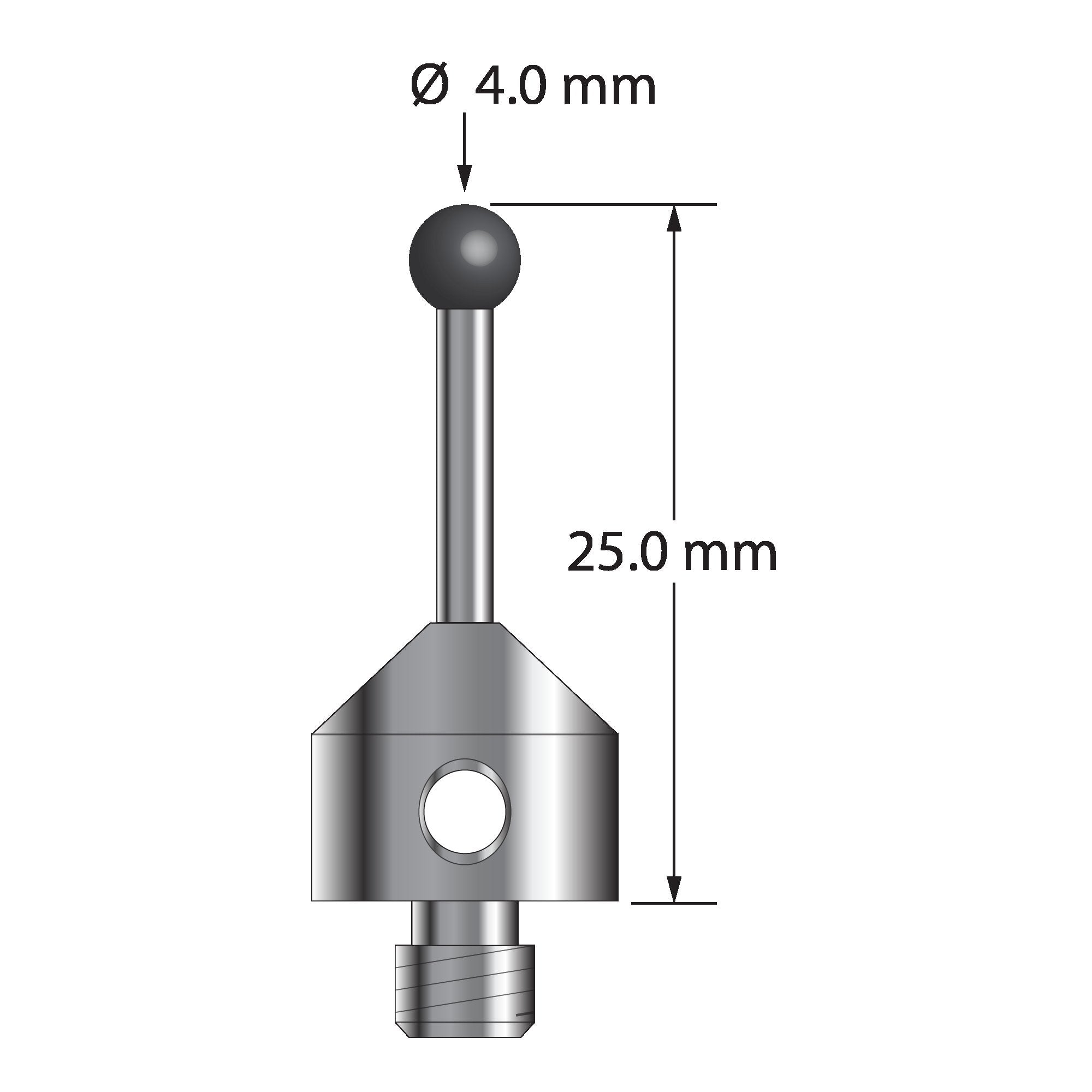

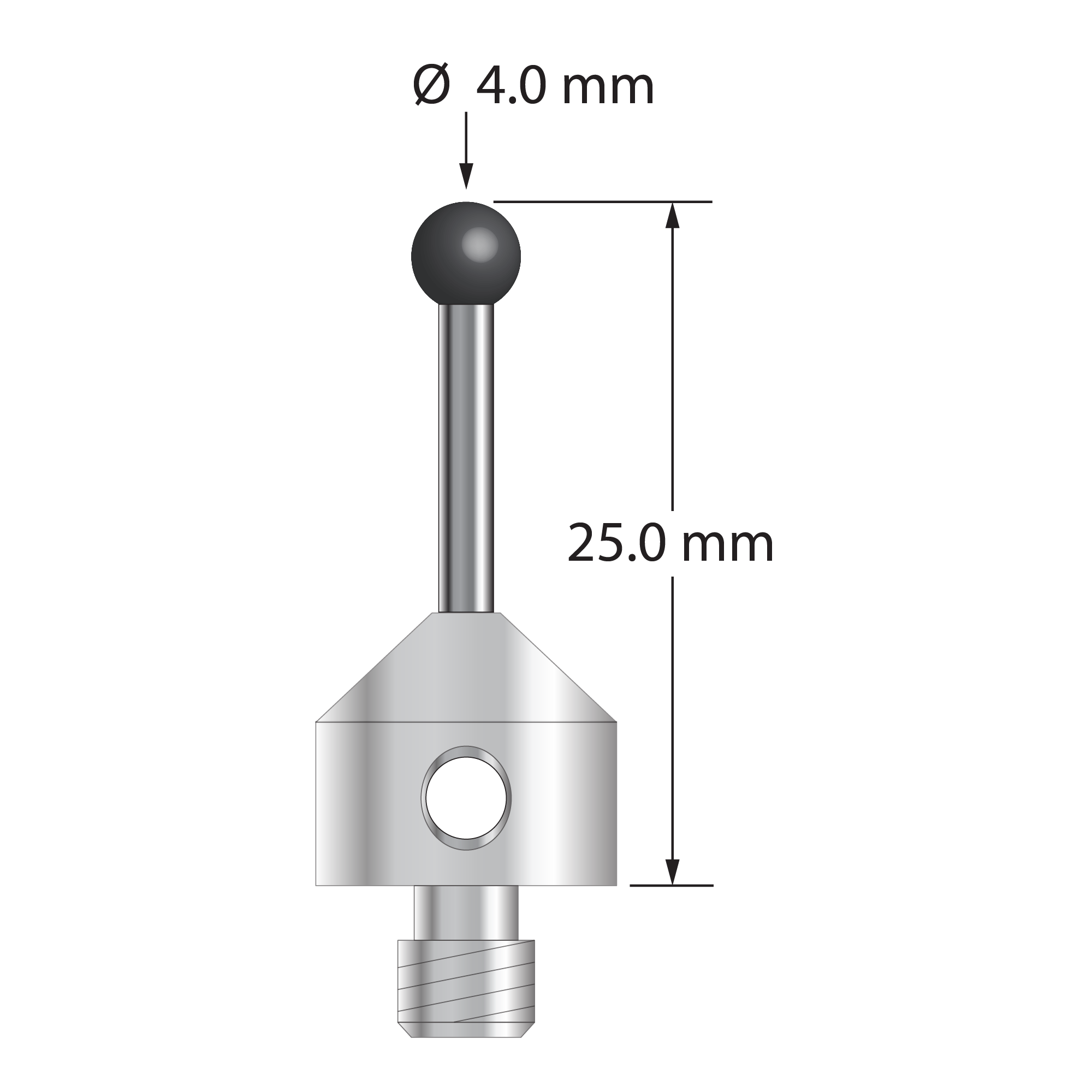

M5 stylus with 4.0 mm diameter silicon nitride ball, 2.0 mm diameter carbide stem, and 11.0 mm diameter x 10.0 mm long stainless steel base. Overall stylus length is 25.0 mm. Stylus weight is 6.42 grams. Compare to Zeiss 626105-0405-025.

Dimensions

ball diameter: 4.0

base diameter: 11.0

length 1: 25.0

length 2: 15.0

stem diameter: 2.0

Materials

ball material: Silicon Nitride

base material: Stainless Steel

stem material: Carbide
