ATG-4022

$65.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
{% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

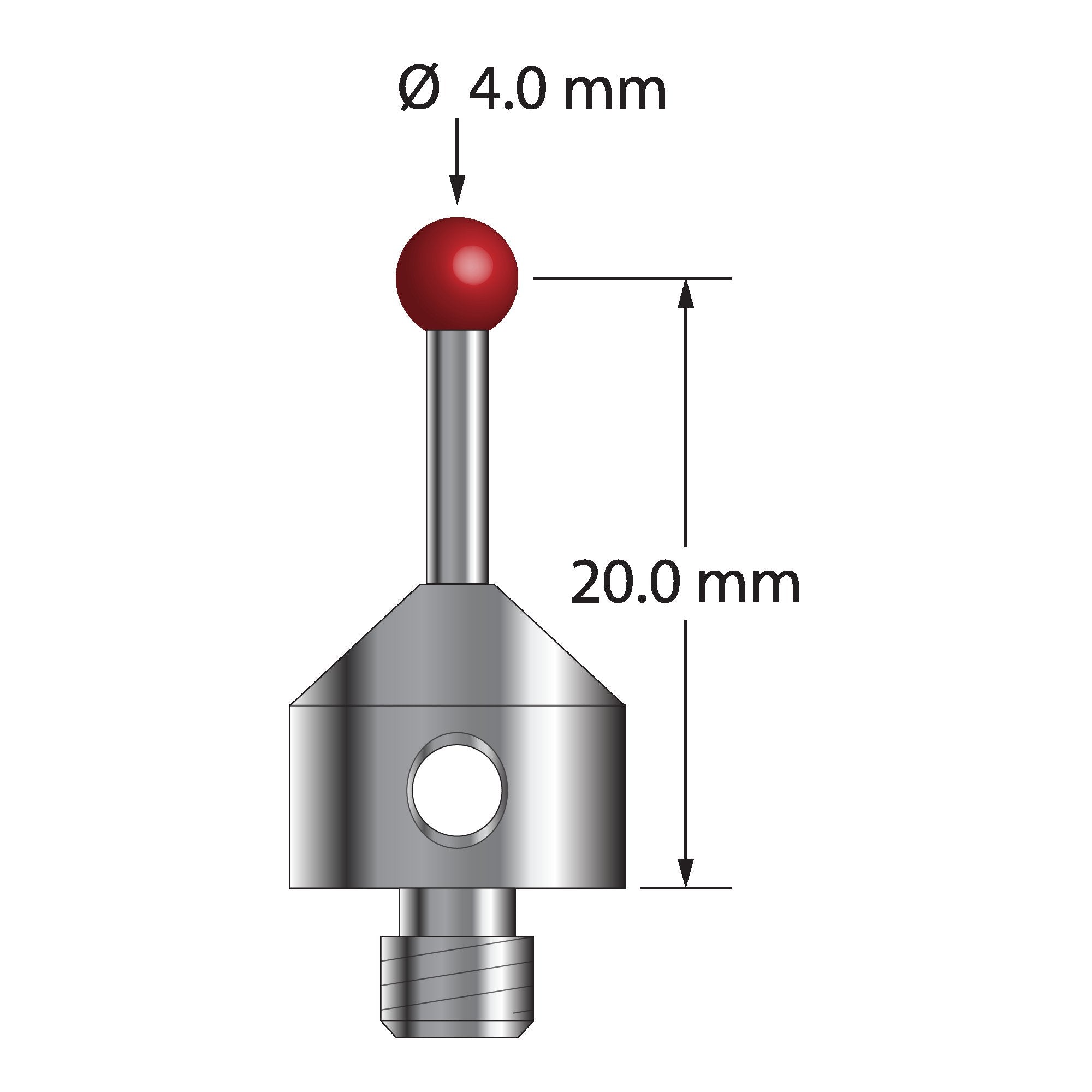

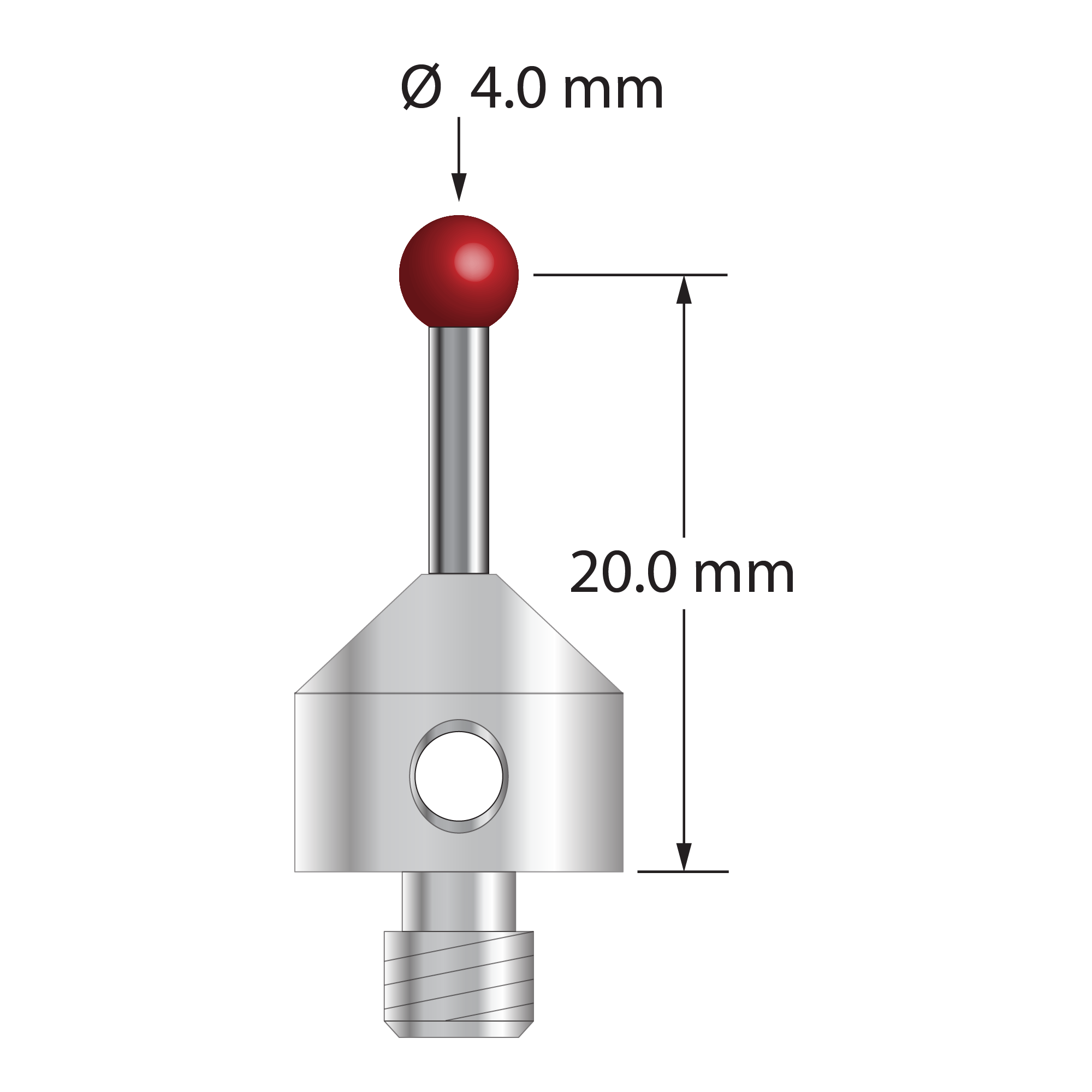

M5 stylus, 4.0 mm ruby ball, 2.0 mm diameter carbide stem, 11.0 mm diameter x 10.0 mm long stainless steel base. Stylus length to ball center is 20.0 mm. Stylus weight is 5.91 grams. Compare to Renishaw A-5003-5209 and Zeiss 626115-0400-022.

Dimensions

ball diameter: 4.0
base diameter: 11.0
length 1: 22.0
length 2: 12.0
stem diameter: 2.0

Materials

ball material: Ruby
base material: Stainless Steel
stem material: Carbide
