Q-Mark Probe Styli: Orders Placed by Noon PT Ship Out Same-Day* | Ultra-Fast Service | Always Guaranteed | Proudly USA Made

ATG-40150

Name: ATG-40150
Brand: Q-Mark Manufacturing Inc.
Price: 225.0 USD
Availability: InStock

$225.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

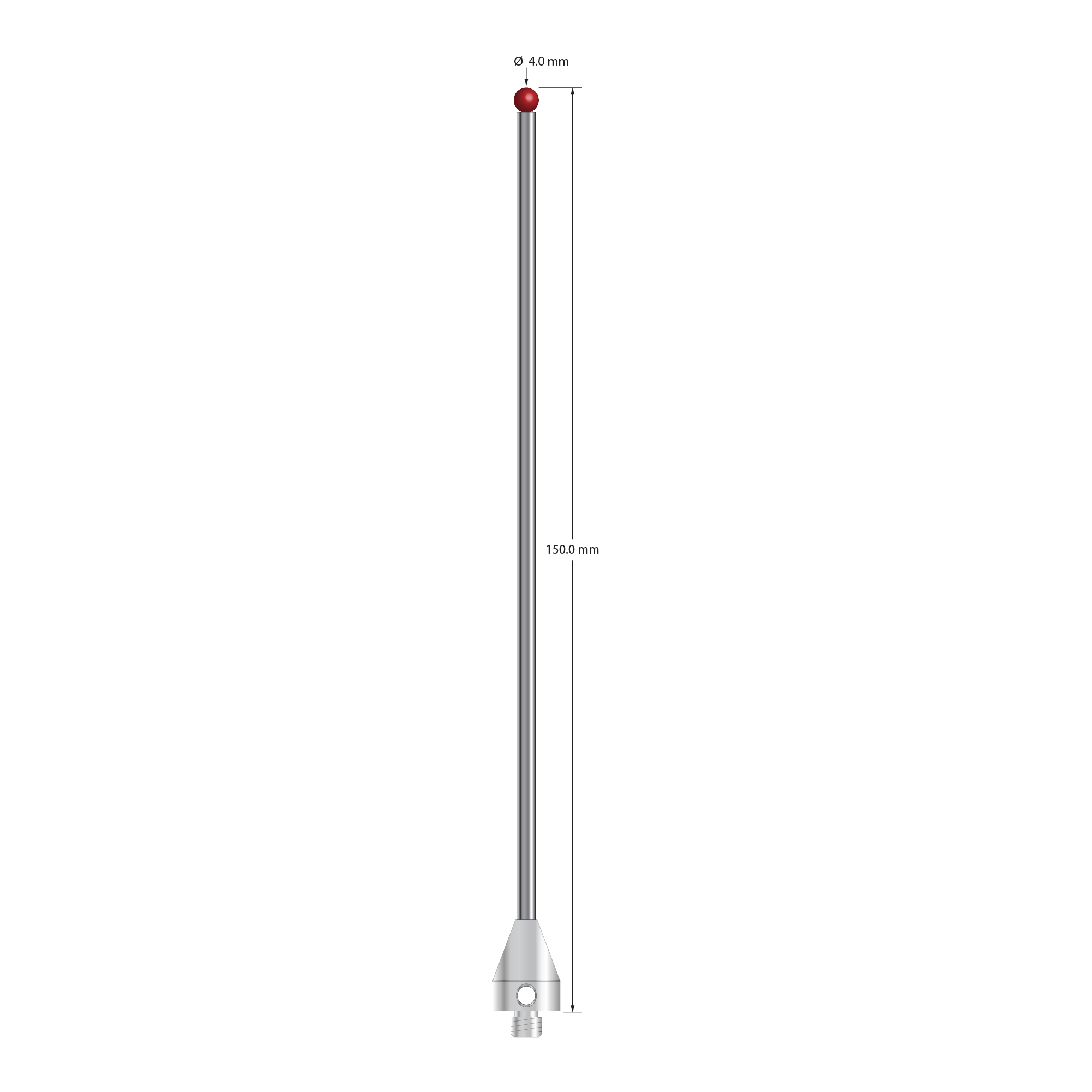

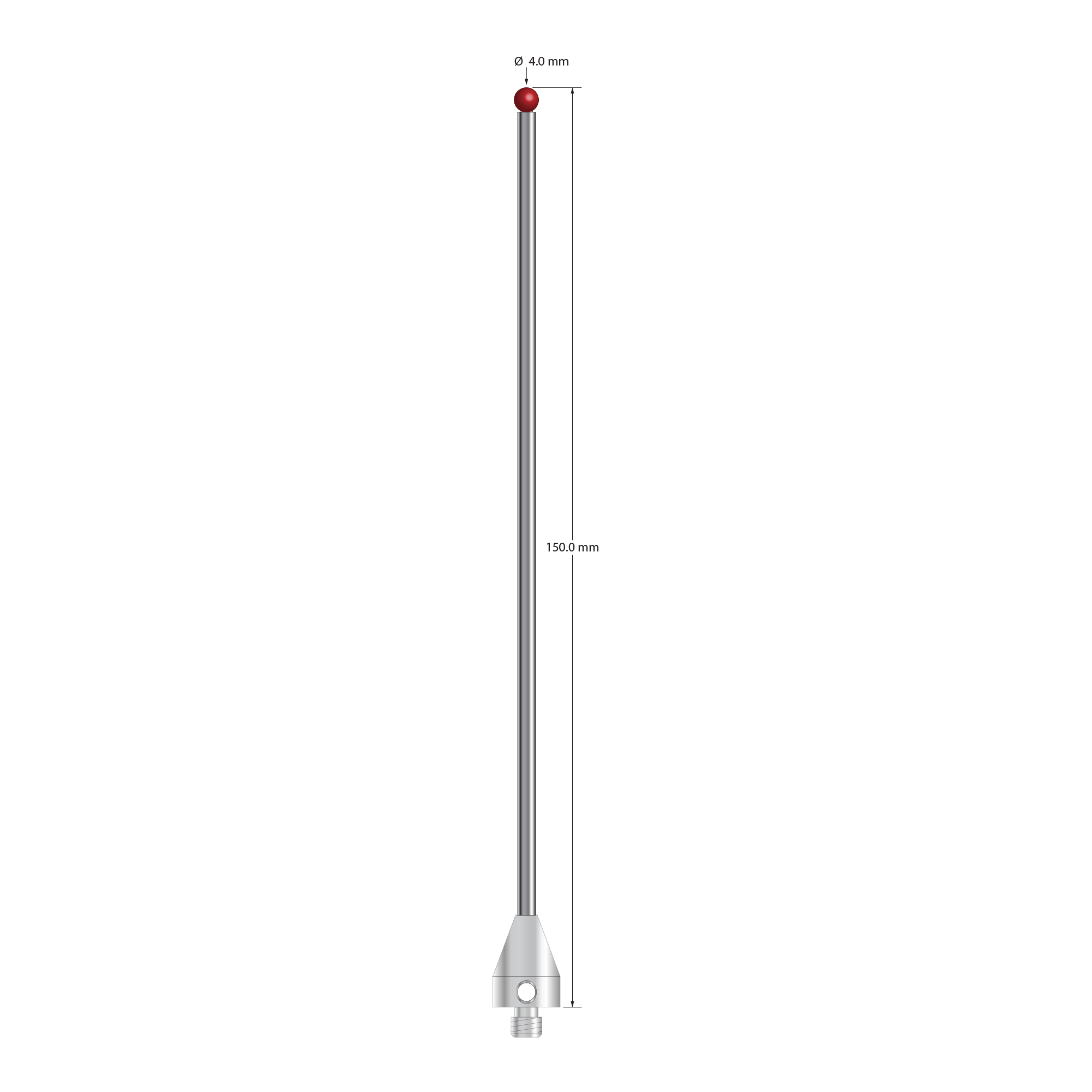

M5 stylus with 4.0 mm diameter ruby ball, 3.0 mm diameter carbide stem, and 11.0 mm diameter x 15.0 mm long stainless steel base. Overall stylus length is 150.0 mm. Stylus weight is 21.14 grams. Compare to Zeiss 626115-0400-150.

Dimensions

ball diameter: 4.0

base diameter: 11.0

length 1: 150.0

length 2: 135.0

stem diameter: 3.0

Materials

ball material: Ruby

base material: Stainless Steel

stem material: Carbide
