Q-Mark Probe Styli: Orders Placed by Noon PT Ship Out Same-Day* | Ultra-Fast Service | Always Guaranteed | Proudly USA Made

ATG-3058

Name: ATG-3058
Brand: Q-Mark Manufacturing Inc.
Price: 39.0 USD
Availability: InStock

$39.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

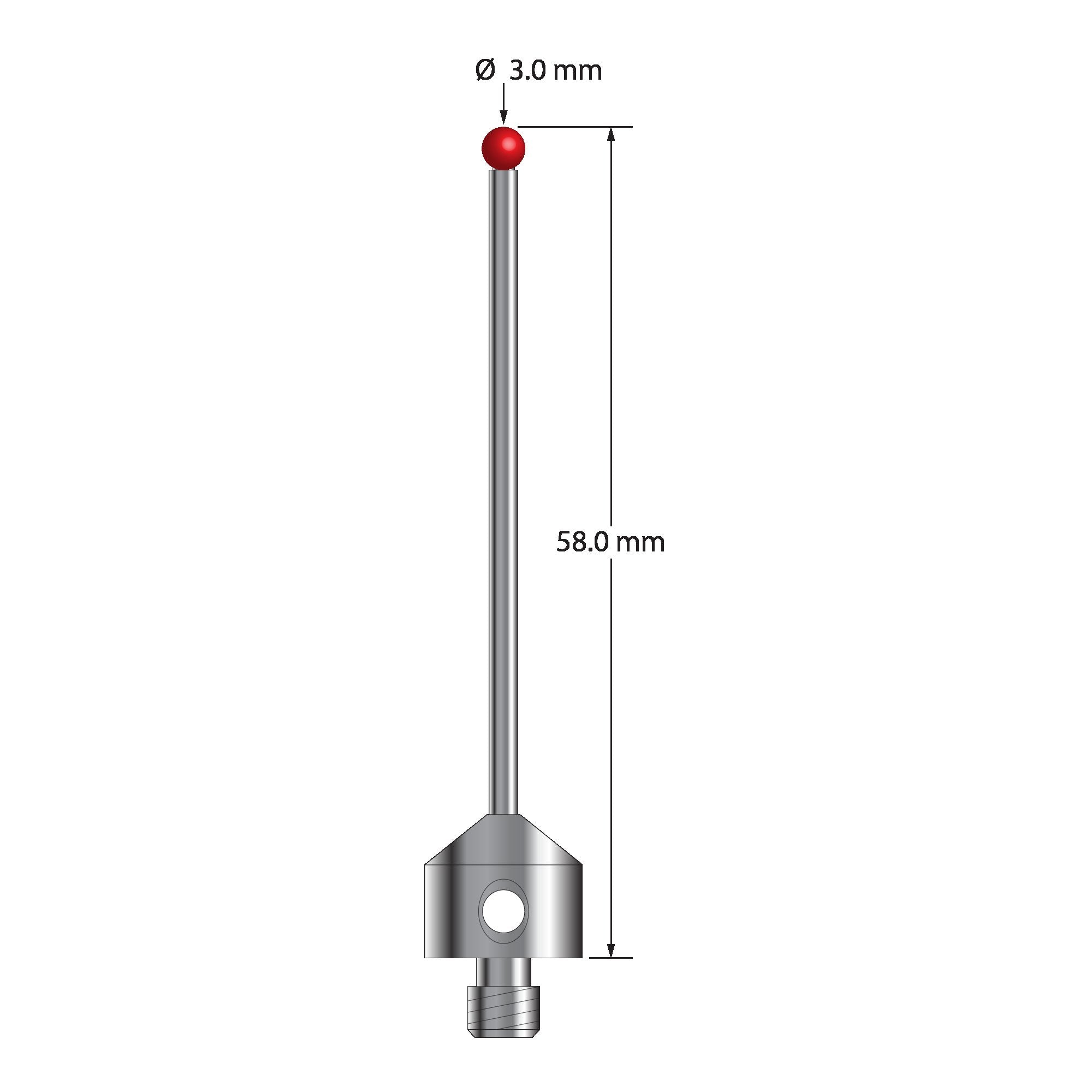

M5 stylus with 3.0 mm diameter ruby ball, 2.0 mm diameter carbide stem, 11.0 mm diameter x 10.0 mm long stainless steel base. Overall stylus length is 58.0 mm. Stylus weight is 7.86 grams. Compare to Zeiss 600342-8021-000 and Renishaw A-5555-0021.

Dimensions

ball diameter: 3.0

base diameter: 11.0

length 1: 58.0

length 2: 48.0

stem diameter: 2.0

Materials

ball material: Ruby

base material: Stainless Steel

stem material: Carbide
