ATG-3050-TX-SN

$128.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
{% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

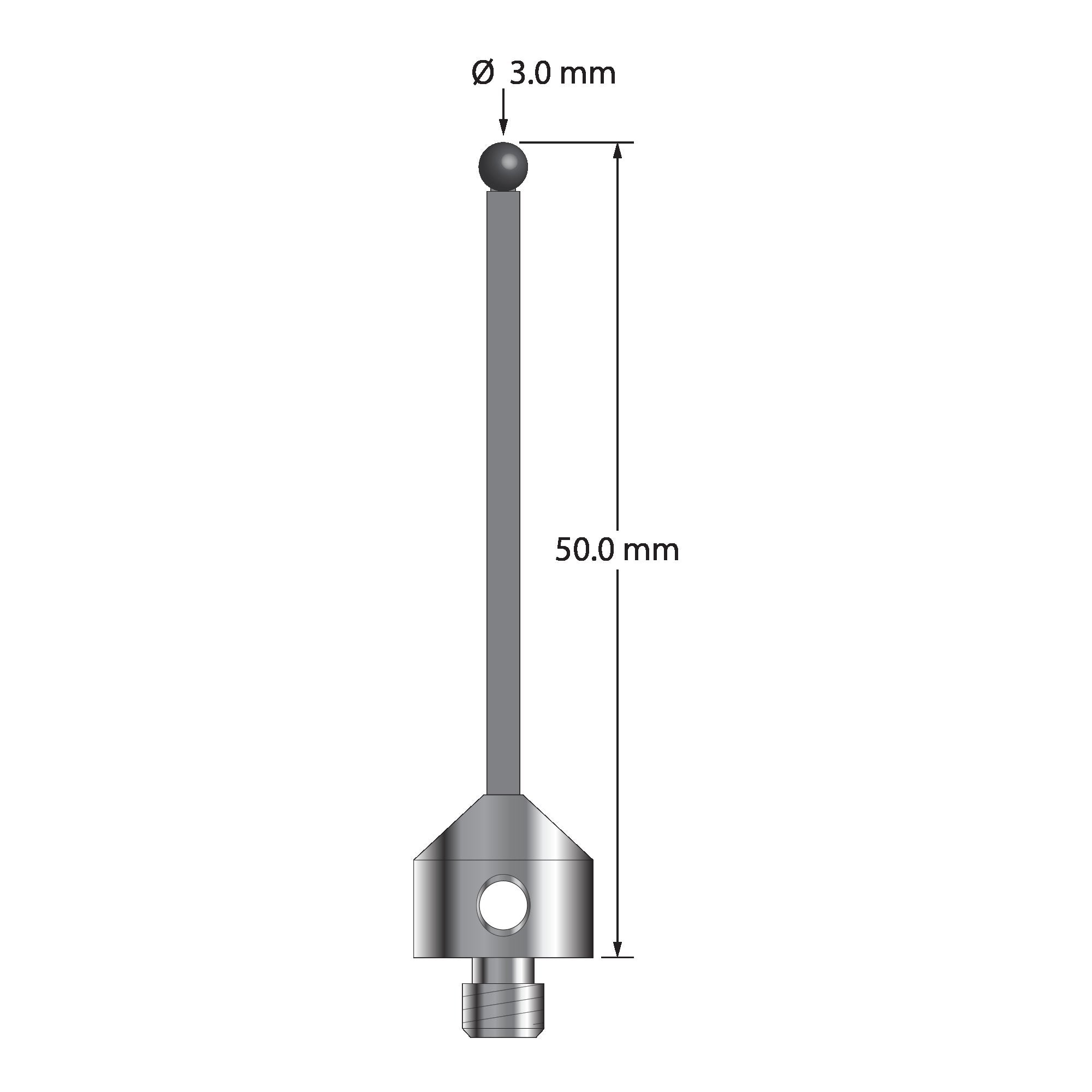

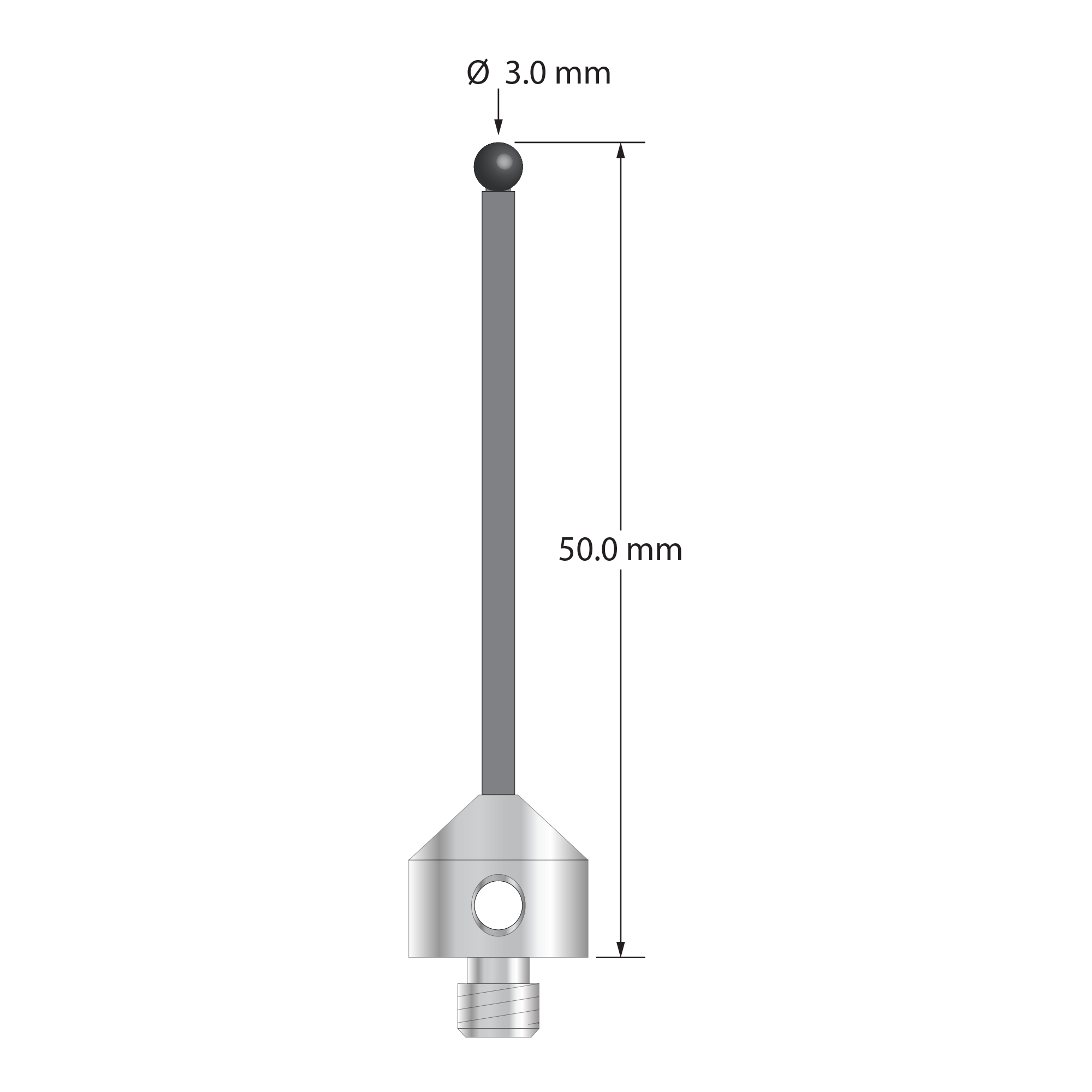

Low weight M5 stylus with 3.0 mm diameter silicon nitride ball, 2.0 mm diameter Therm-X carbon fiber stem, and 11.0 mm diameter x 10.0 mm long titanium base. Overall stylus length is 50.0 mm. Stylus weight is 3.45 grams.

Dimensions

ball diameter: 3.0
base diameter: 11.0
length 1: 50.0
length 2: 40.0
stem diameter: 2.0

Materials

ball material: Silicon Nitride
base material: Titanium
stem material: Carbon Fiber
