ATG-3036

Name: ATG-3036
Brand: Q-Mark Manufacturing Inc.
Price: 55.0 USD
Availability: InStock

$55.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

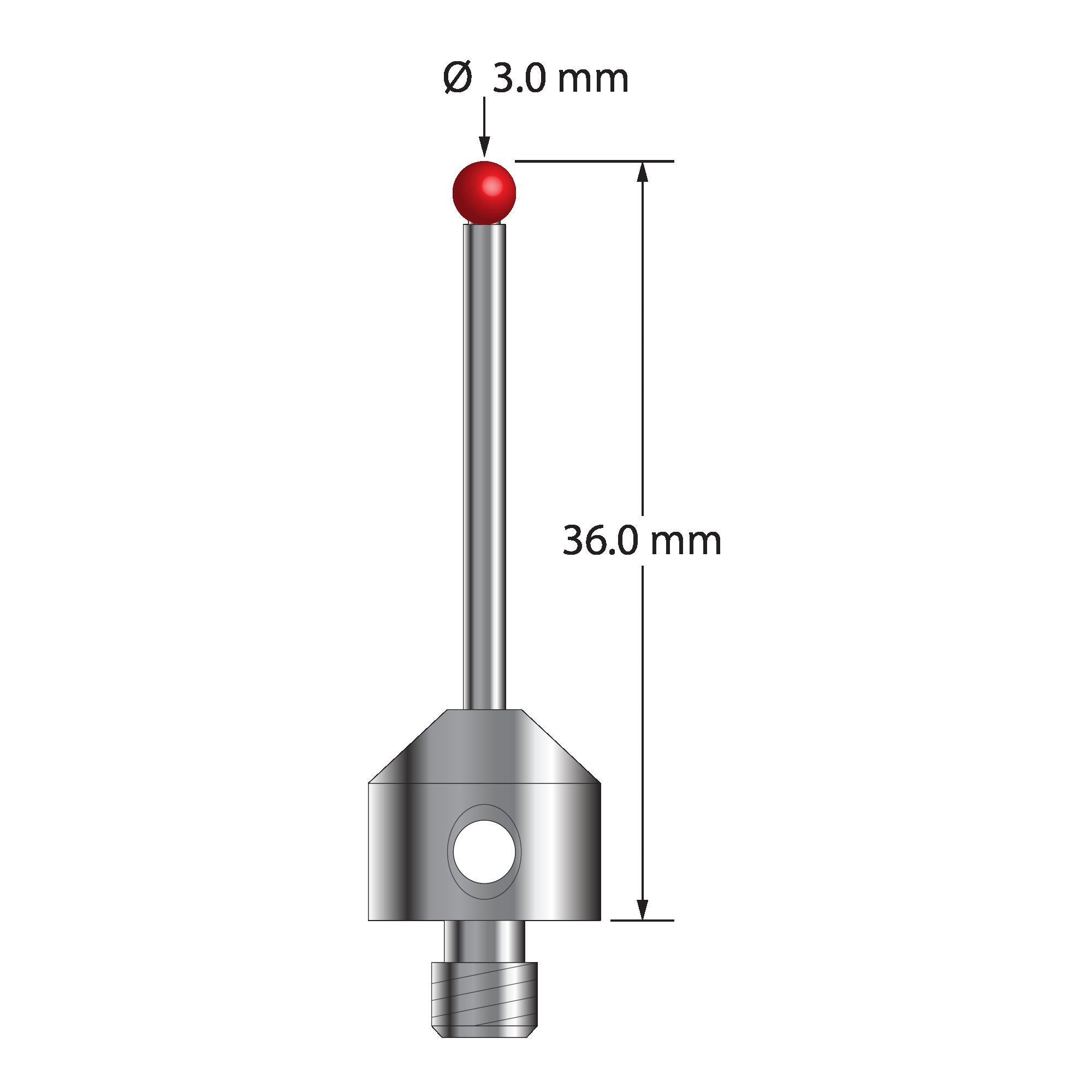

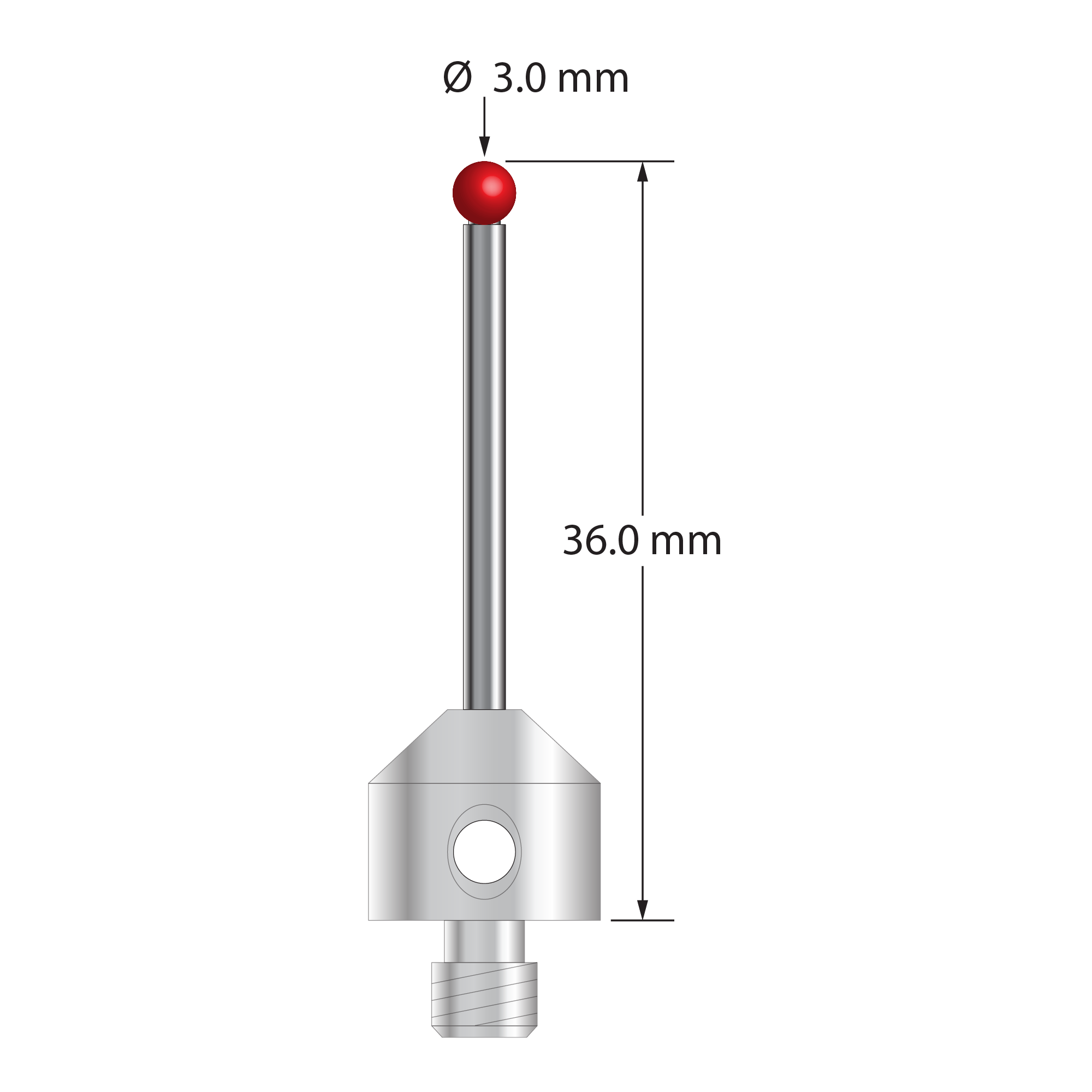

M5 stylus with 3.0 mm diameter ruby ball, 2.0 mm diameter carbide stem, and 11.0 mm diameter by 10.0 mm long stainless steel base. Overall stylus length is 36.0 mm. Stylus weight is 6.89 grams. Compare to Zeiss 626105-0304-036.

Dimensions

ball diameter: 3.0

base diameter: 11.0

length 1: 36.0

length 2: 26.0

stem diameter: 2.0

Materials

ball material: Ruby

base material: Stainless Steel

stem material: Carbide
