Q-Mark Probe Styli: Orders Placed by Noon PT Ship Out Same-Day* | Ultra-Fast Service | Always Guaranteed | Proudly USA Made

ATG-3033-TX

Name: ATG-3033-TX
Brand: Q-Mark Manufacturing Inc.
Price: 95.0 USD
Availability: InStock

$95.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

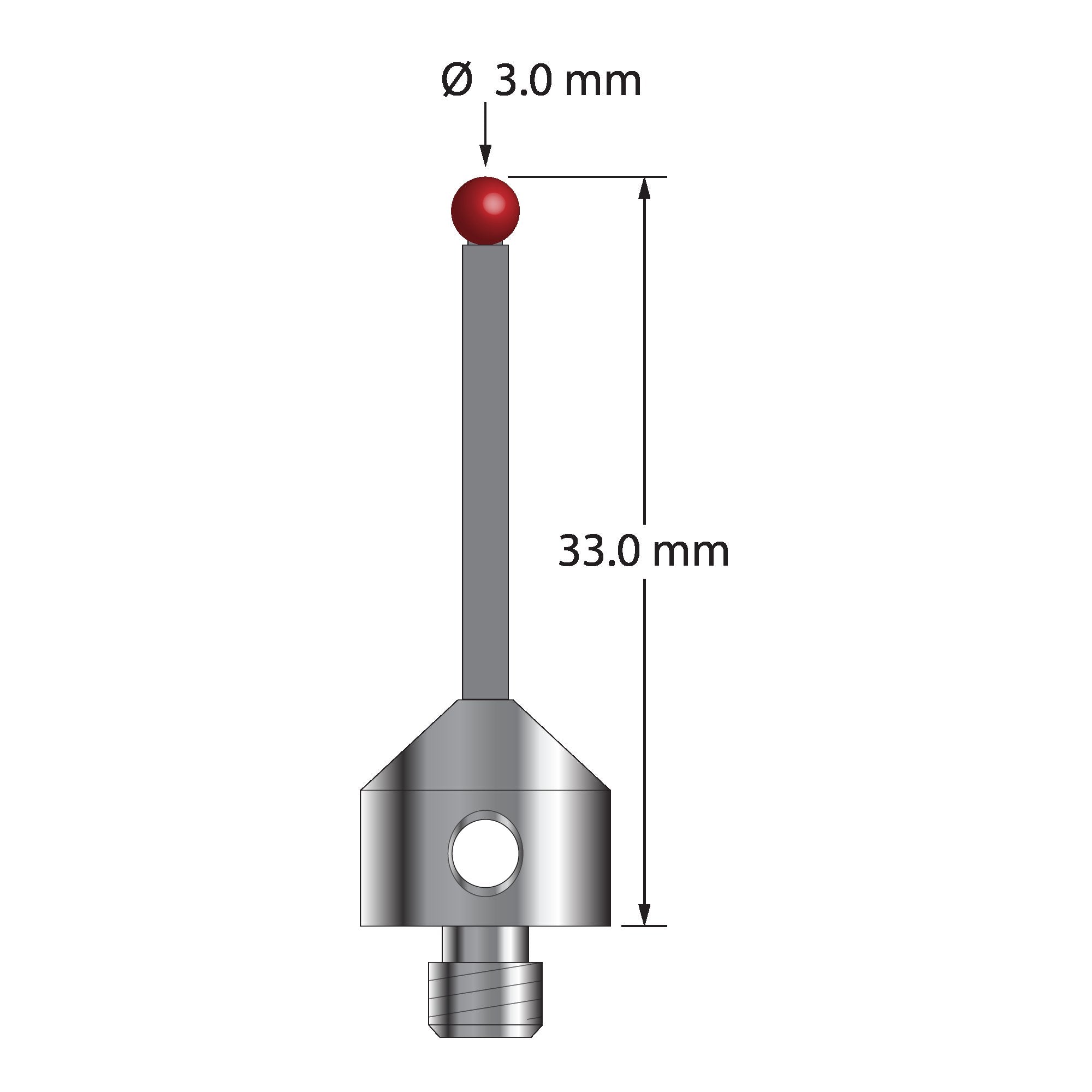

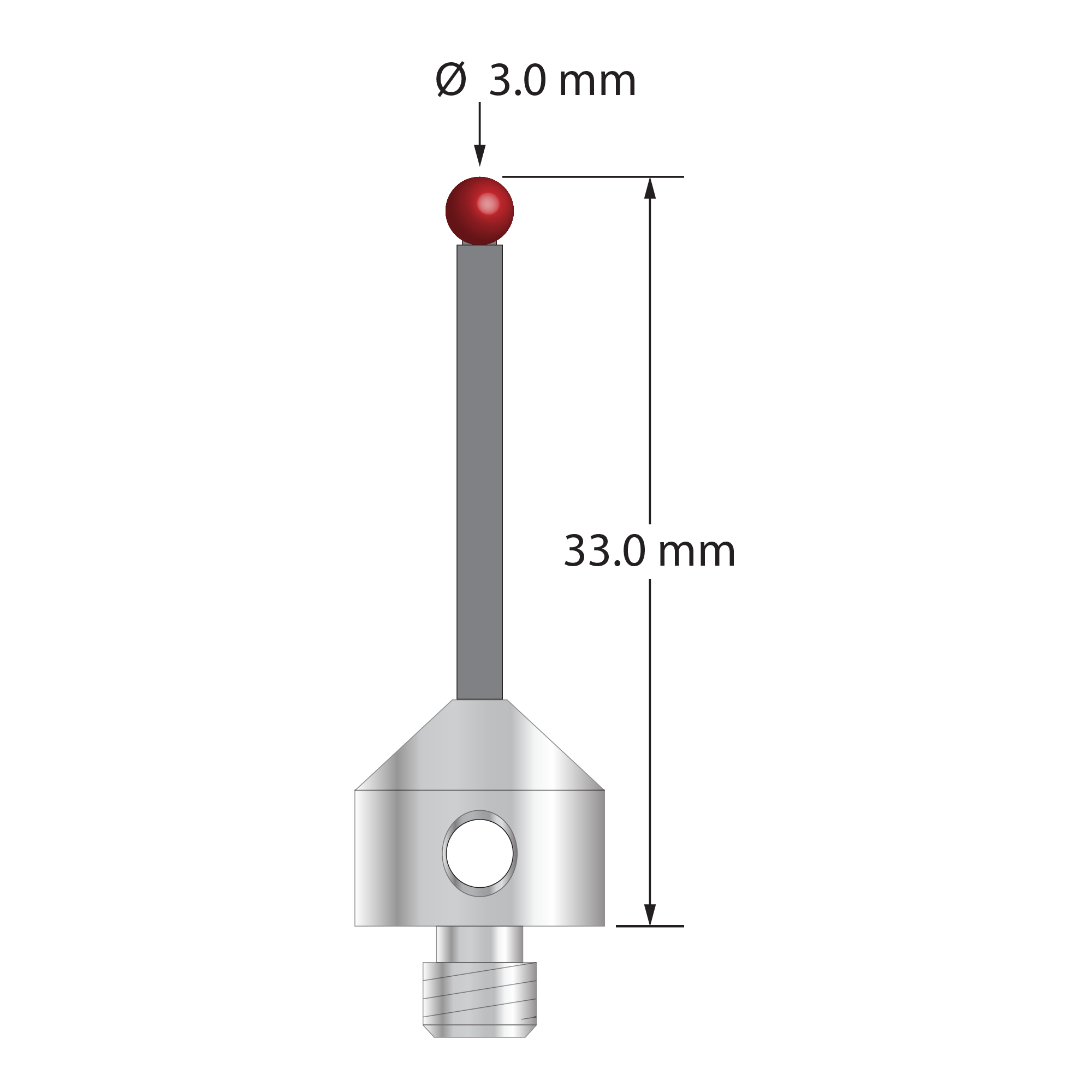

Low weight M5 stylus with 3.0 mm diameter ruby ball, 2.0 mm diameter Therm-X carbon fiber stem, and 11.0 mm diameter x 10.0 mm long titanium base. Overall stylus length is 33.0 mm. Stylus weight is 3.37 grams. Compare to Zeiss 626105-0300-033 and Renishaw A-5555-1847.

Dimensions

ball diameter: 3.0

base diameter: 11.0

length 1: 33.0

length 2: 23.0

stem diameter: 2.0

Materials

ball material: Ruby

base material: Titanium

stem material: Carbon Fiber
