ATG-19080

Name: ATG-19080
Brand: Q-Mark Manufacturing Inc.
Price: 275.0 USD
Availability: InStock

$275.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

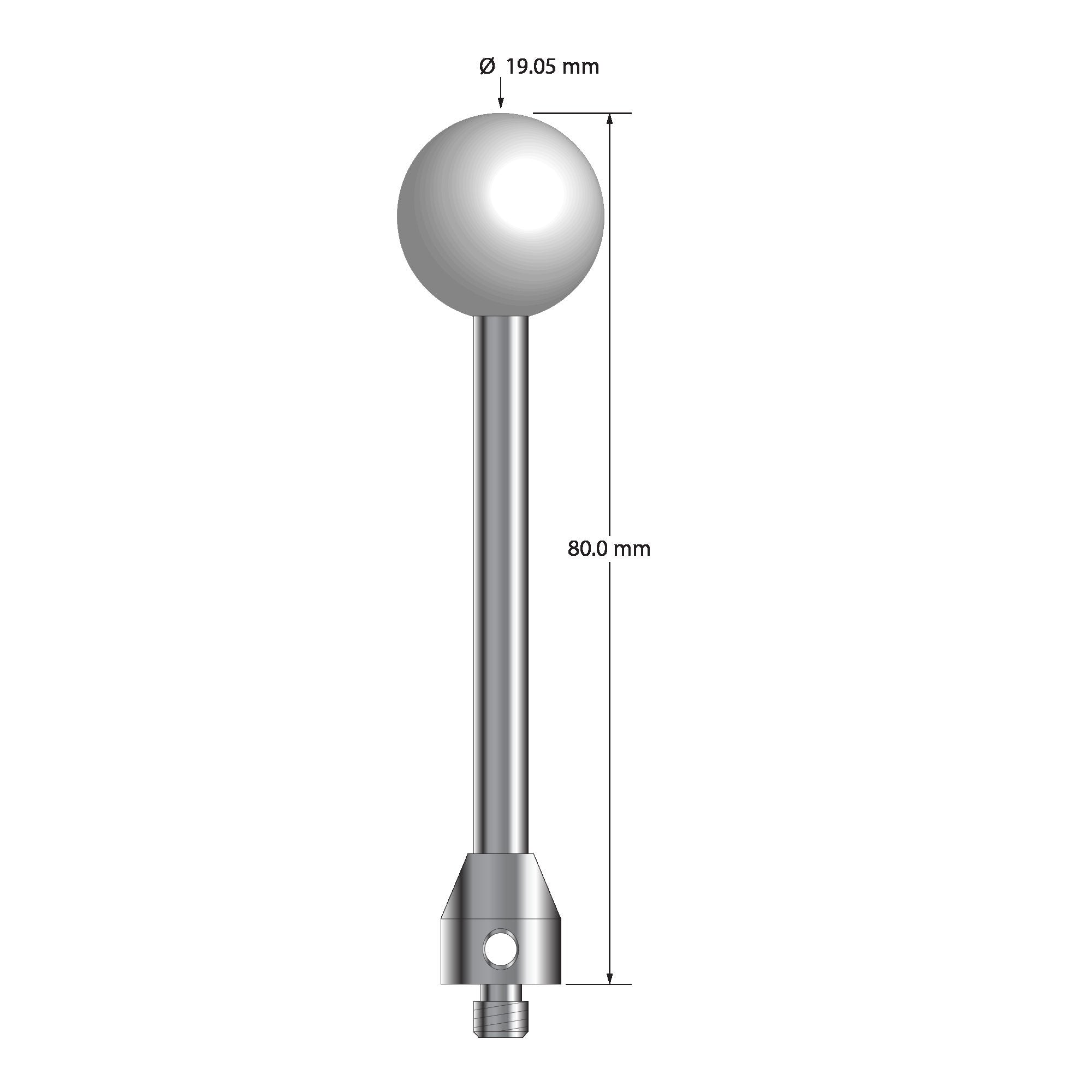

M5 stylus with 19.05 mm (0.75") diameter Grade 25 ceramic ball, 5.0 mm diameter carbide stem, and 11.0 mm x 12.0 mm long stainless steel base. Overall stylus length is 80.0 mm. Stylus weight is 36.88 grams.

Dimensions

ball diameter: 19.05

base diameter: 11.0

length 1: 80.0

length 2: 68.0

stem diameter: 5.0

Materials

ball material: Ceramic

base material: Stainless Steel

stem material: Carbide
