ATG-15050

Name: ATG-15050
Brand: Q-Mark Manufacturing Inc.
Price: 205.0 USD
Availability: InStock

$205.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

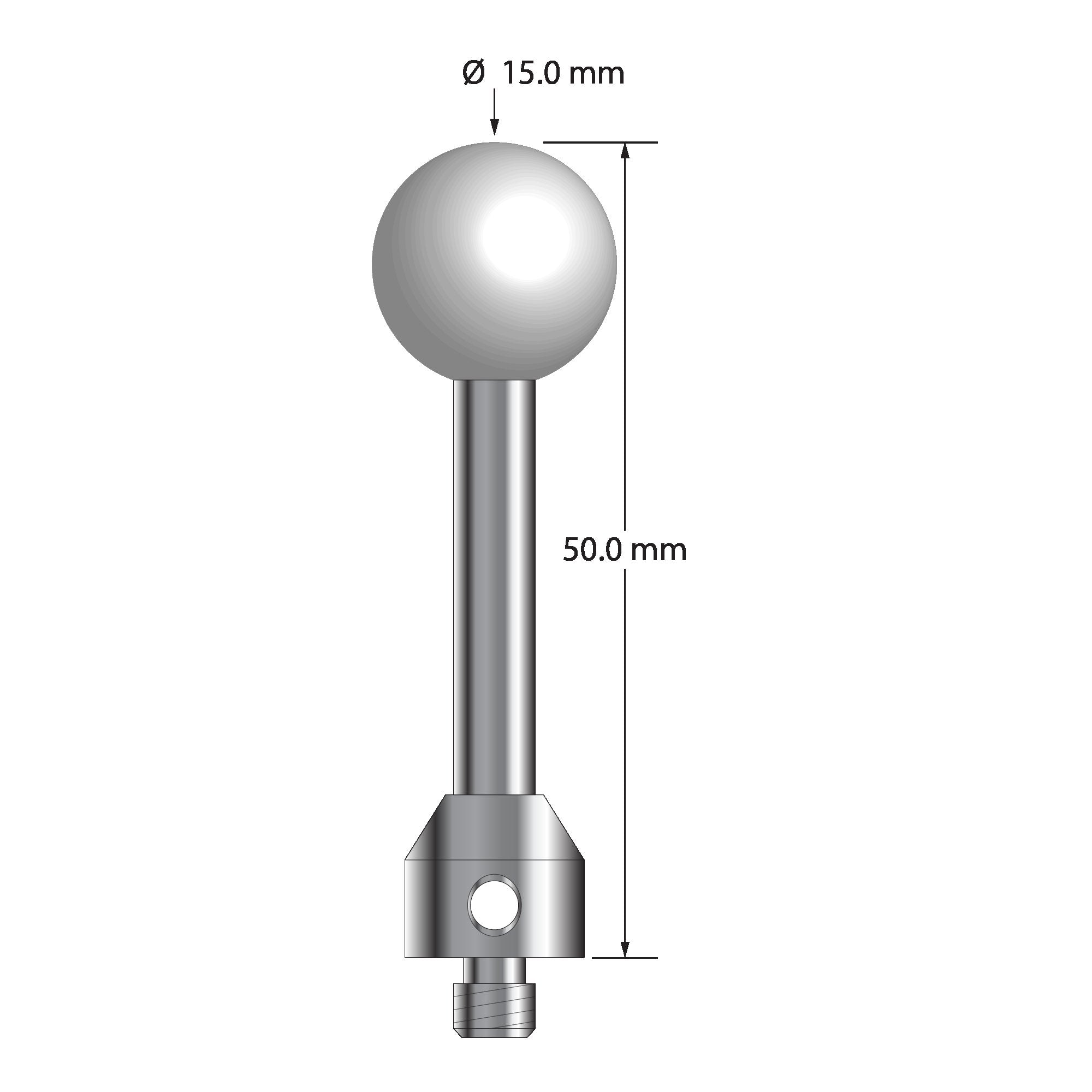

M5 stylus with 15.0 mm diameter Grade 25 ceramic ball, 5.0 mm diameter carbide stem, and 11.0 mm diameter x 12.0 mm long stainless steel base. Overall stylus length is 50.0 mm. Stylus weight is 20.59 grams.

Dimensions

ball diameter: 15.0

base diameter: 11.0

length 1: 50.0

length 2: 38.0

stem diameter: 5.0

Materials

ball material: Ceramic

base material: Stainless Steel

stem material: Carbide
