ATG-12775

$195.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
{% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

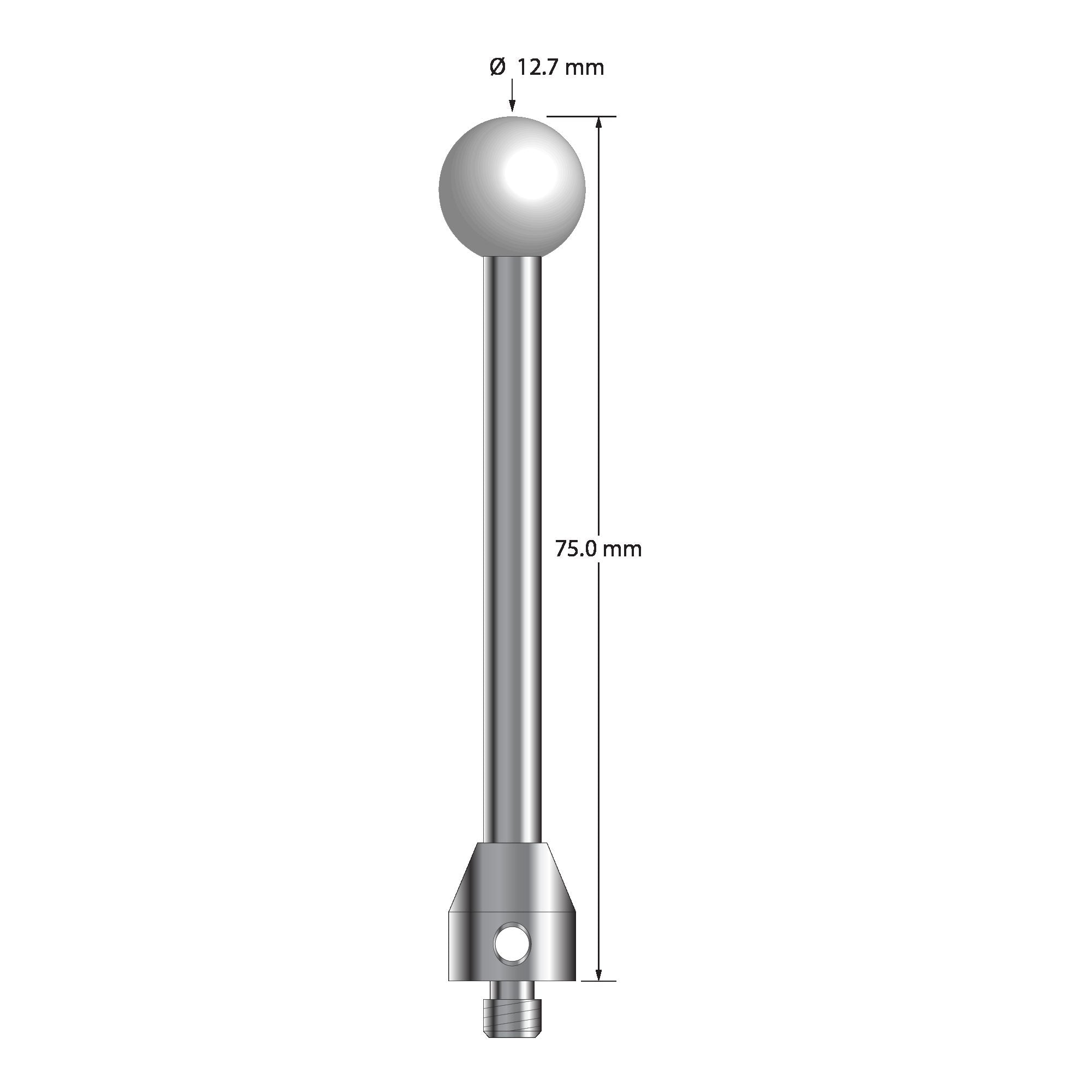

M5 stylus with 12.7 mm diameter ceramic ball (grade 25), 5.0 mm diameter carbide stem, and 11.0 mm diameter x 12.0 mm long stainless steel base.  Overall stylus length is 75.0 mm.  Stylus weight is 25.61 grams.

Dimensions

ball diameter: 12.7
base diameter: 11.0
length 1: 75.0
length 2: 63.0
stem diameter: 5.0

Materials

ball material: Ceramic
base material: Stainless Steel
stem material: Carbide
