ATG-10030-TX-SN

Name: ATG-10030-TX-SN
Brand: Q-Mark Manufacturing Inc.
Price: 230.0 USD
Availability: InStock

$230.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

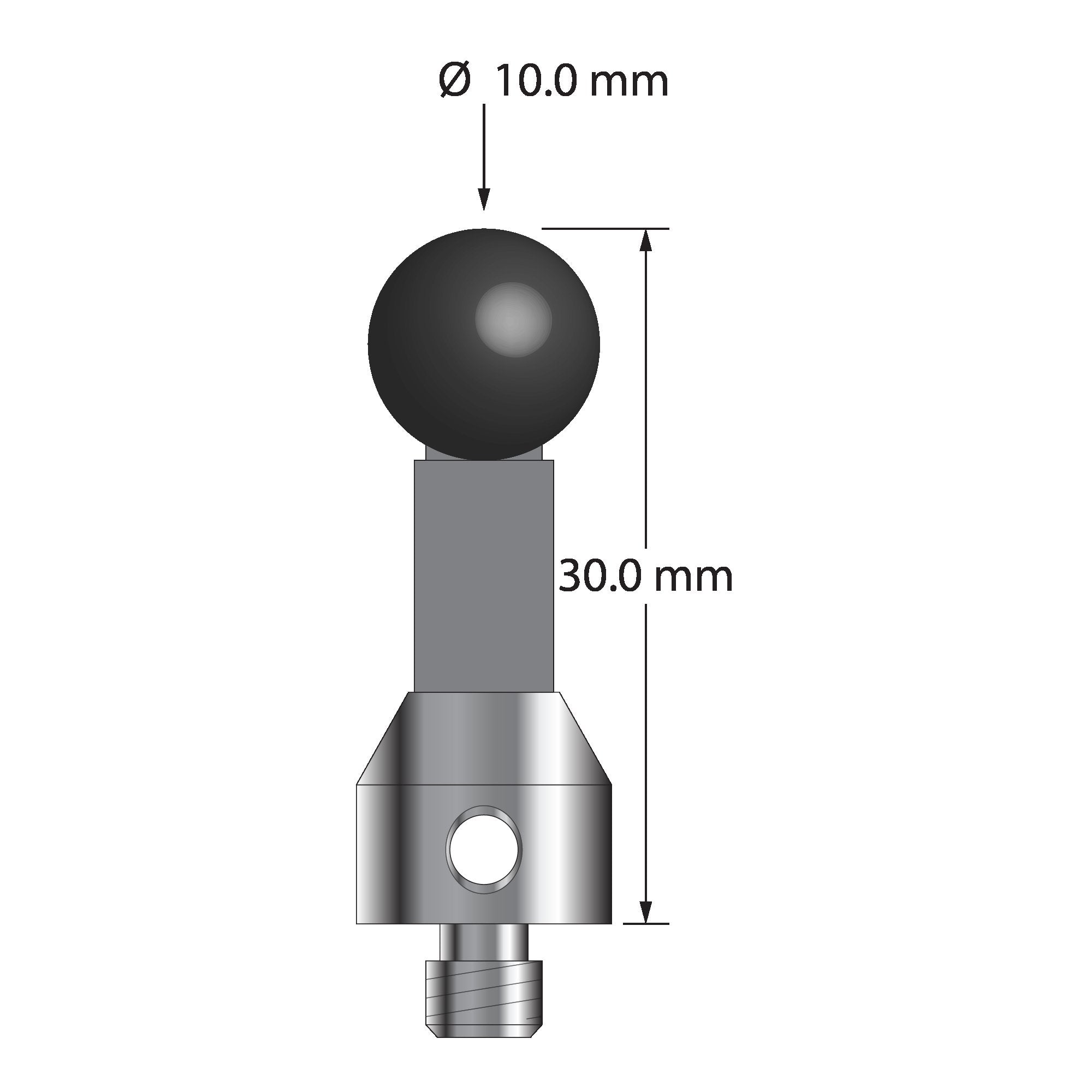

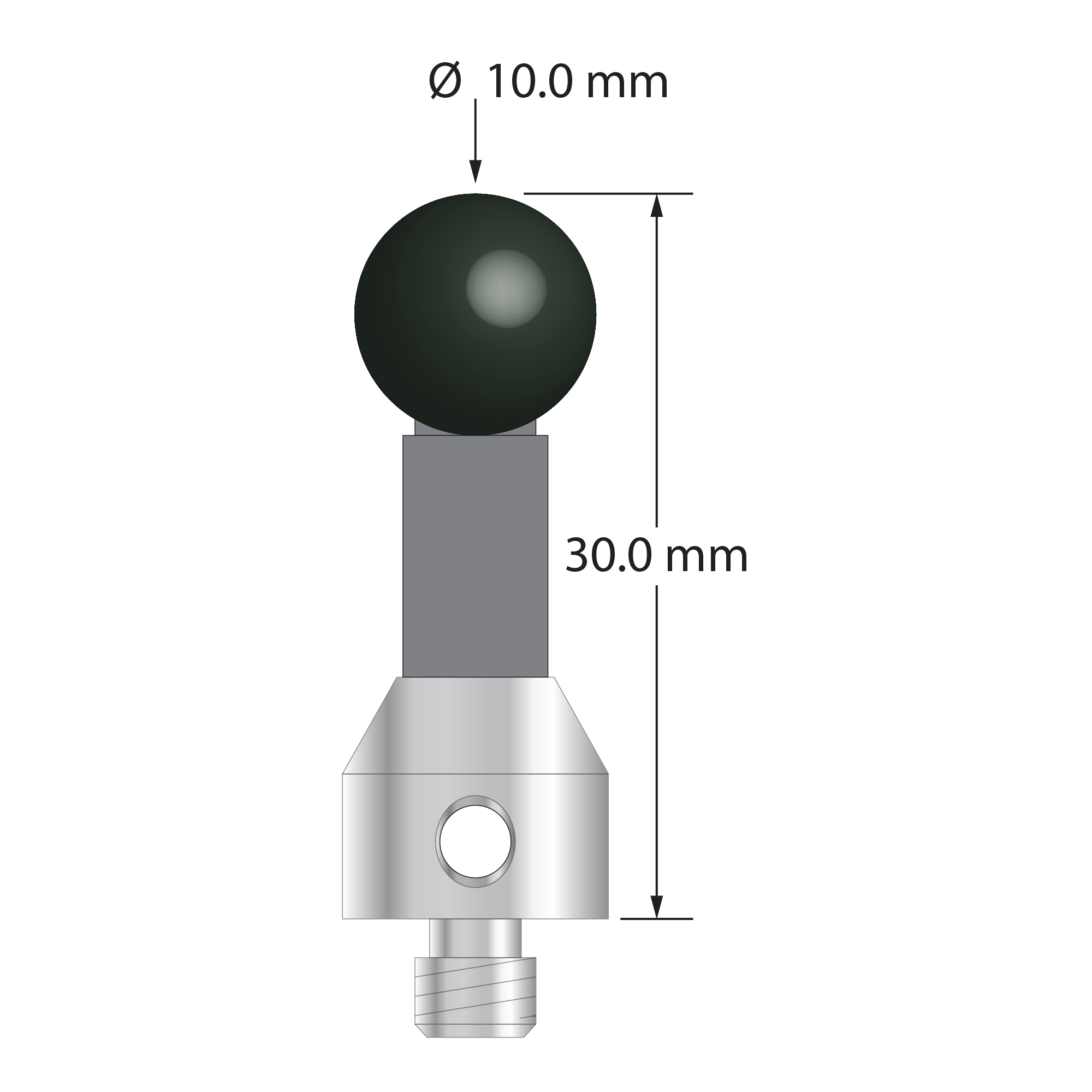

M5 Therm-X stylus with 10.0 mm diameter silicon nitride ball, 6.0 mm diameter carbon fiber stem, and 11.0 mm diameter x 10.0 mm long titanium base. Overall stylus length is 30.0 mm. Stylus weight is 5.21 grams.

Dimensions

ball diameter: 10.0

base diameter: 11.0

length 1: 30.0

length 2: 20.0

stem diameter: 6.0

Materials

ball material: Silicon Nitride

base material: Titanium

stem material: Carbon Fiber
