ATG-100165
ATG-100165

ATG-100165

$215.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
 {% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

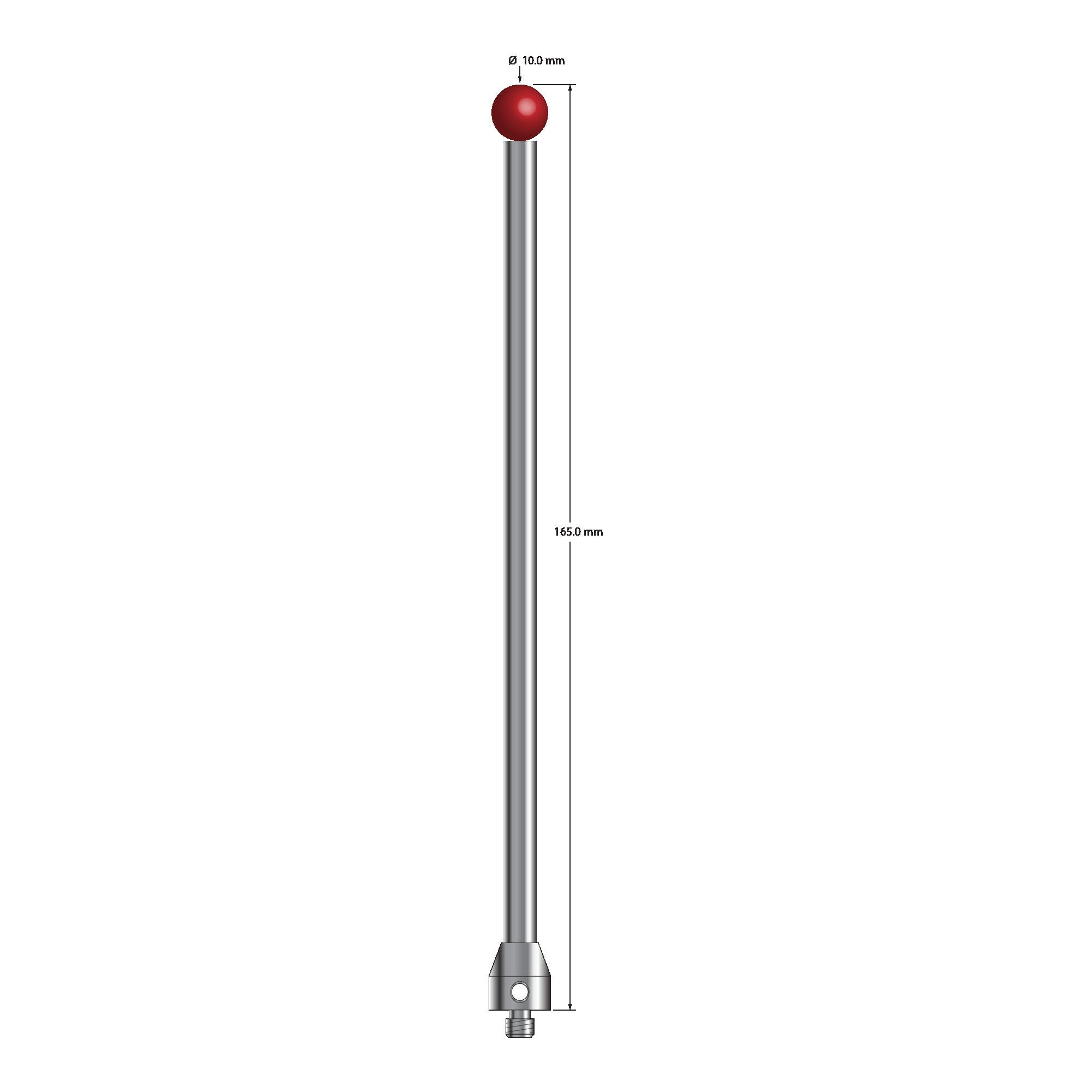

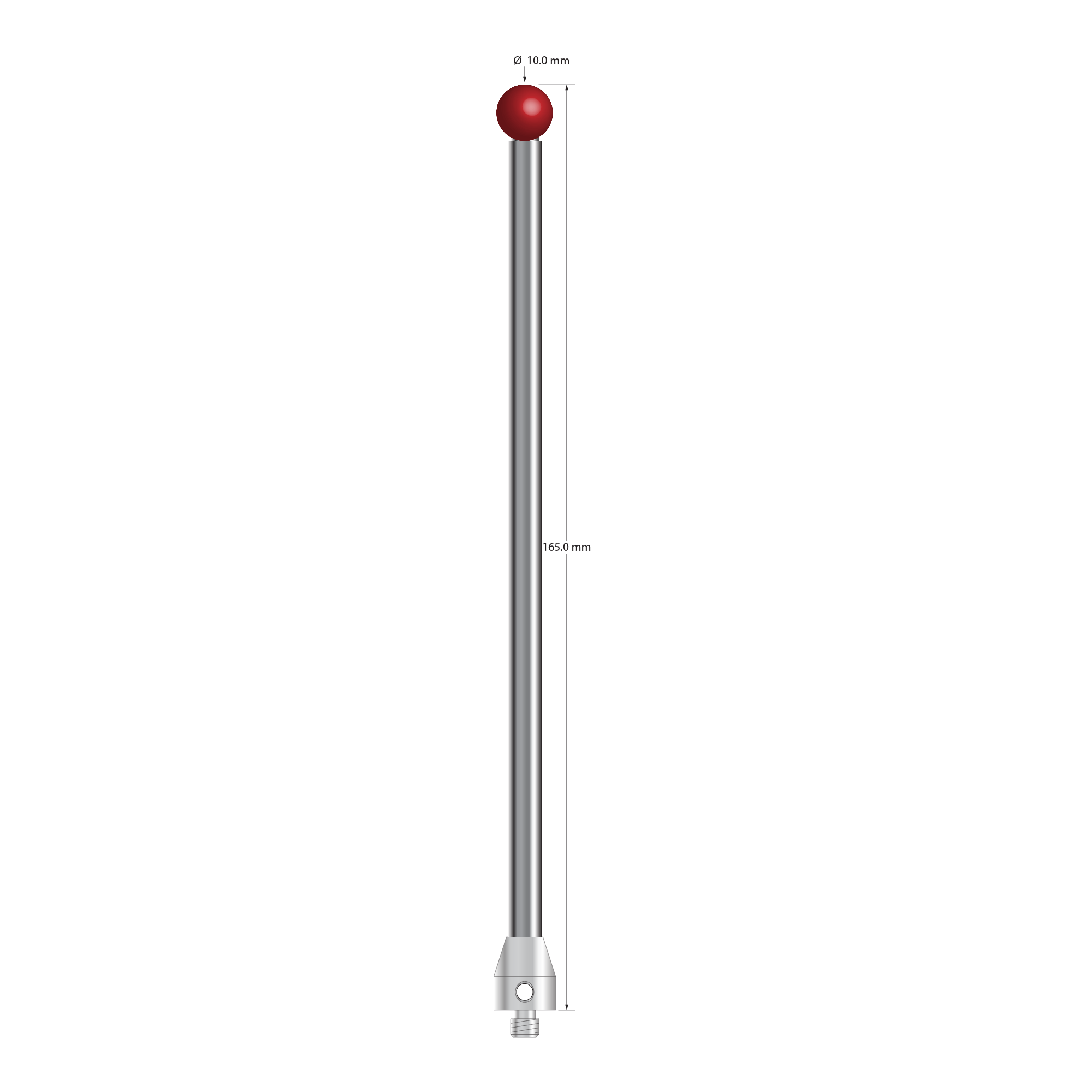

M5 stylus with 10.0 mm silicon nitride ball, 6.0 mm diameter carbide stem, and 11.0 mm diameter x 13.0 mm long stainless steel base.  Overall stylus length is 165.0 mm.  Stylus weight is 68.98 grams.  Compare to Zeiss 626105-1024-165.

Dimensions

ball diameter: 10.0
base diameter: 11.0
length 1: 165.0
length 2: 152.0
stem diameter: 6.0

Materials

ball material: Ruby
base material: Stainless Steel
stem material: Carbide
