ATG-100150-TX-SN

Name: ATG-100150-TX-SN
Brand: Q-Mark Manufacturing Inc.
Price: 270.0 USD
Availability: InStock

$270.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

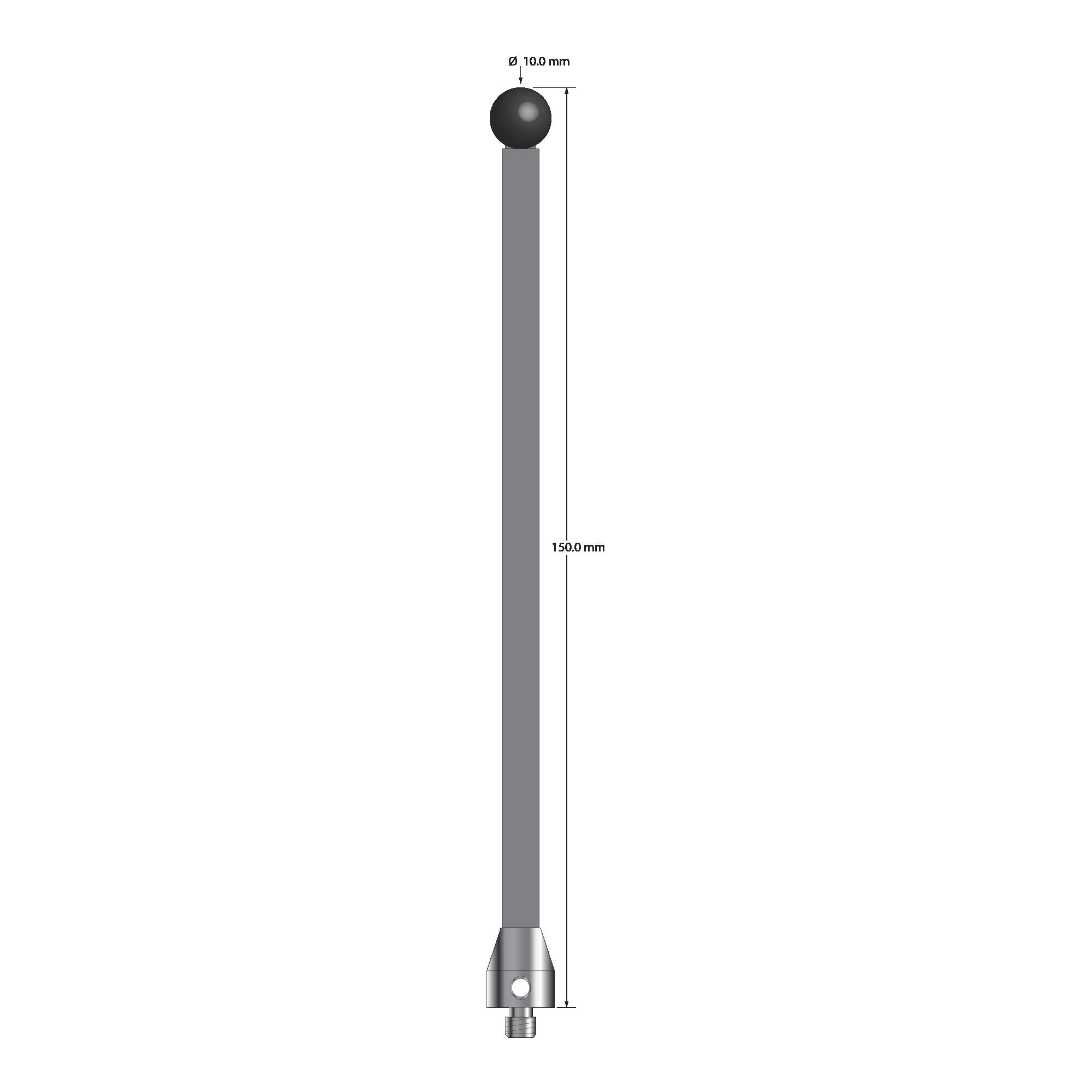

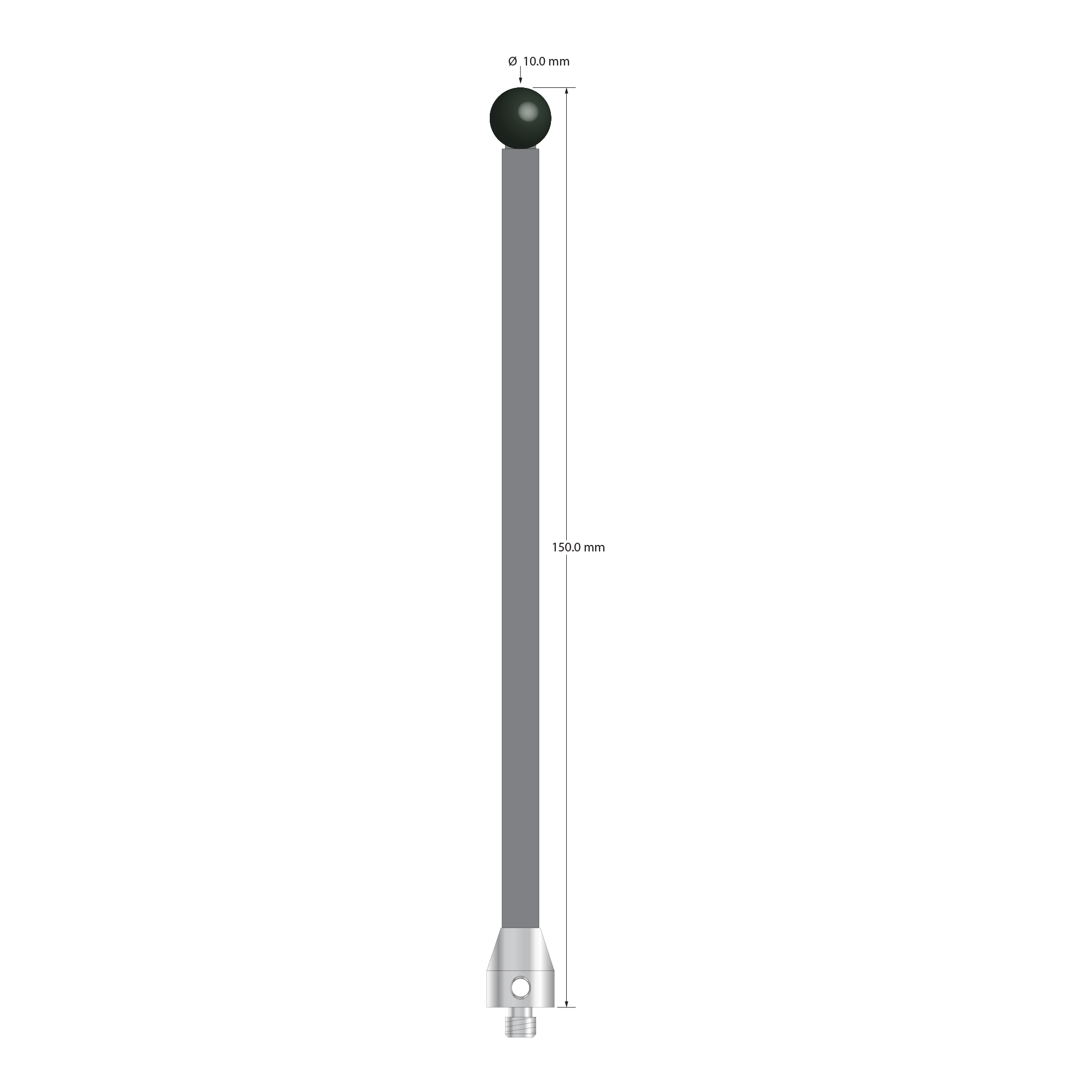

Low weight M5 stylus with 10.0 mm diameter silicon nitride ball, 6.0 mm diameter Therm-X carbon fiber stem, and 11.0 mm diameter x 13.0 mm long titanium base. Overall stylus length is 150.0 mm. Stylus weight is 10.86 grams. Compare to Zeiss 626105-1021-150.

Dimensions

ball diameter: 10.0

base diameter: 11.0

length 1: 150.0

length 2: 137.0

stem diameter: 6.0

Materials

ball material: Silicon Nitride

base material: Titanium

stem material: Carbon Fiber
