ASG-1560-SN

$110.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
{% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

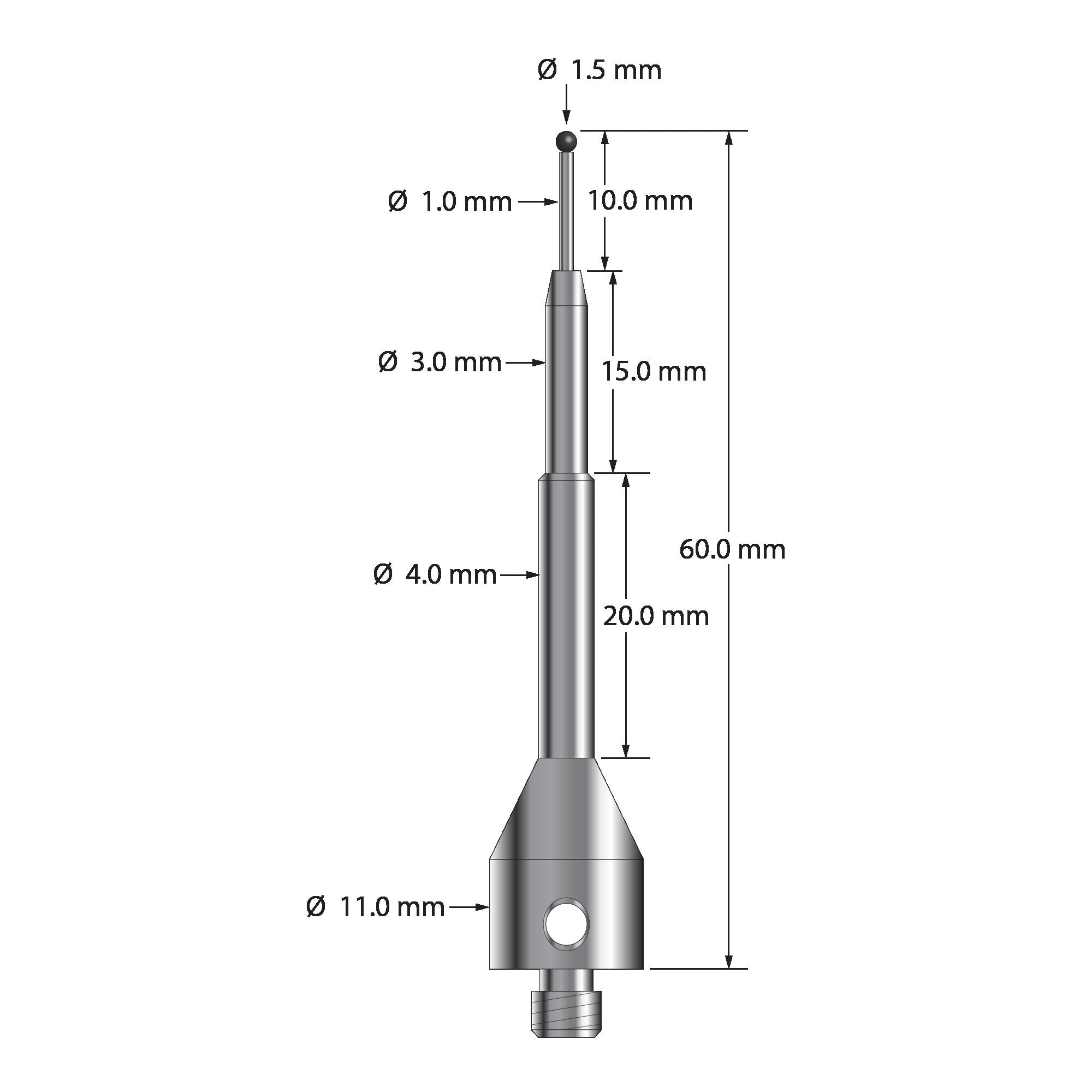

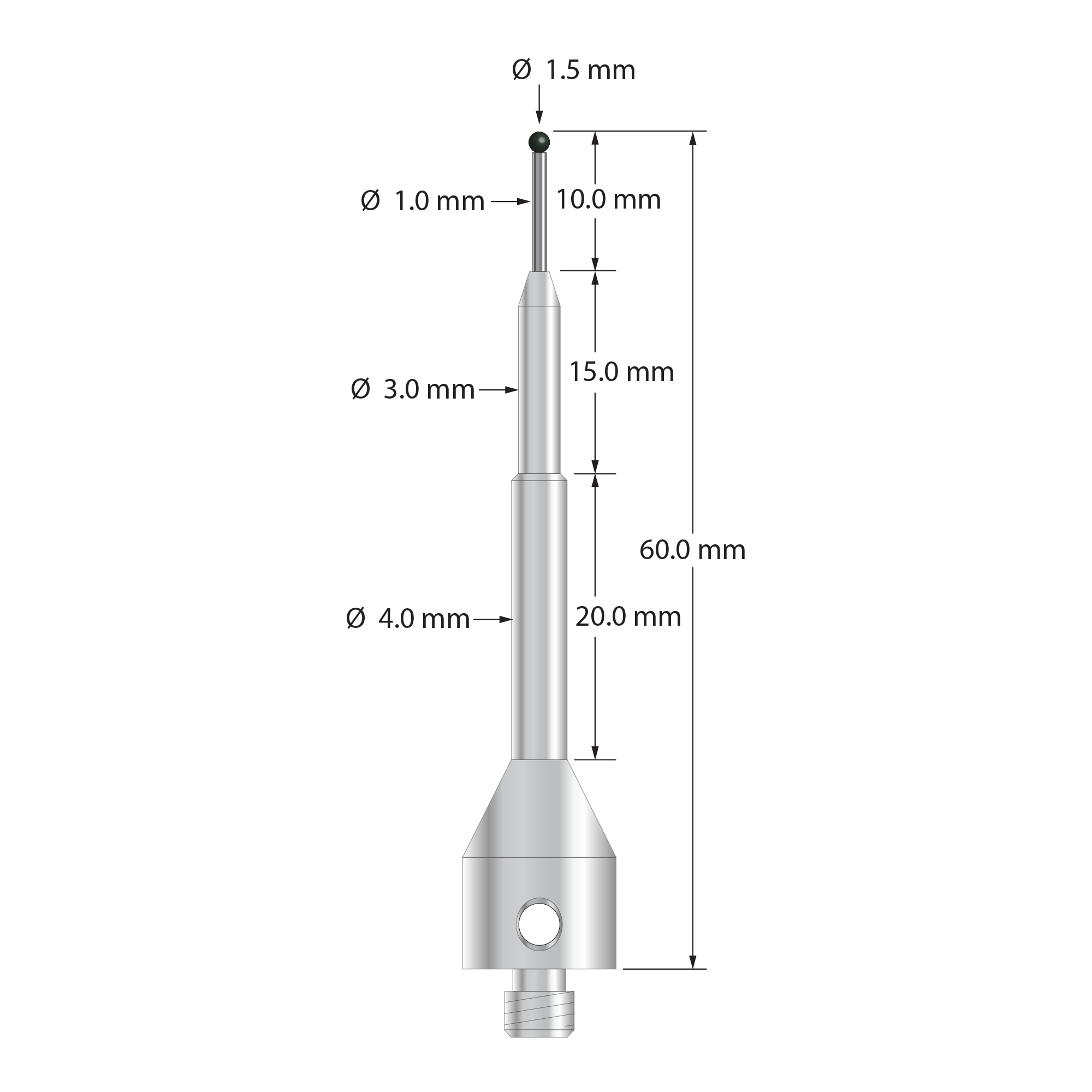

Extra length M5 stylus with 1.5 mm diameter silicon nitride ball, 1.0 mm diameter carbide stem, and 11.0 mm diameter by 50.0 mm long stainless steel base.  Overall stylus length is 60.0 mm.  Stylus weight is 11.21 grams.

Dimensions

ball diameter: 1.5
base diameter: 11.0
length 1: 60.0
length 2: 10.0
stem diameter: 1.0

Materials

ball material: Silicon Nitride
base material: Stainless Steel
stem material: Carbide
