ASG-1045

Name: ASG-1045
Brand: Q-Mark Manufacturing Inc.
Price: 75.0 USD
Availability: InStock

$75.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

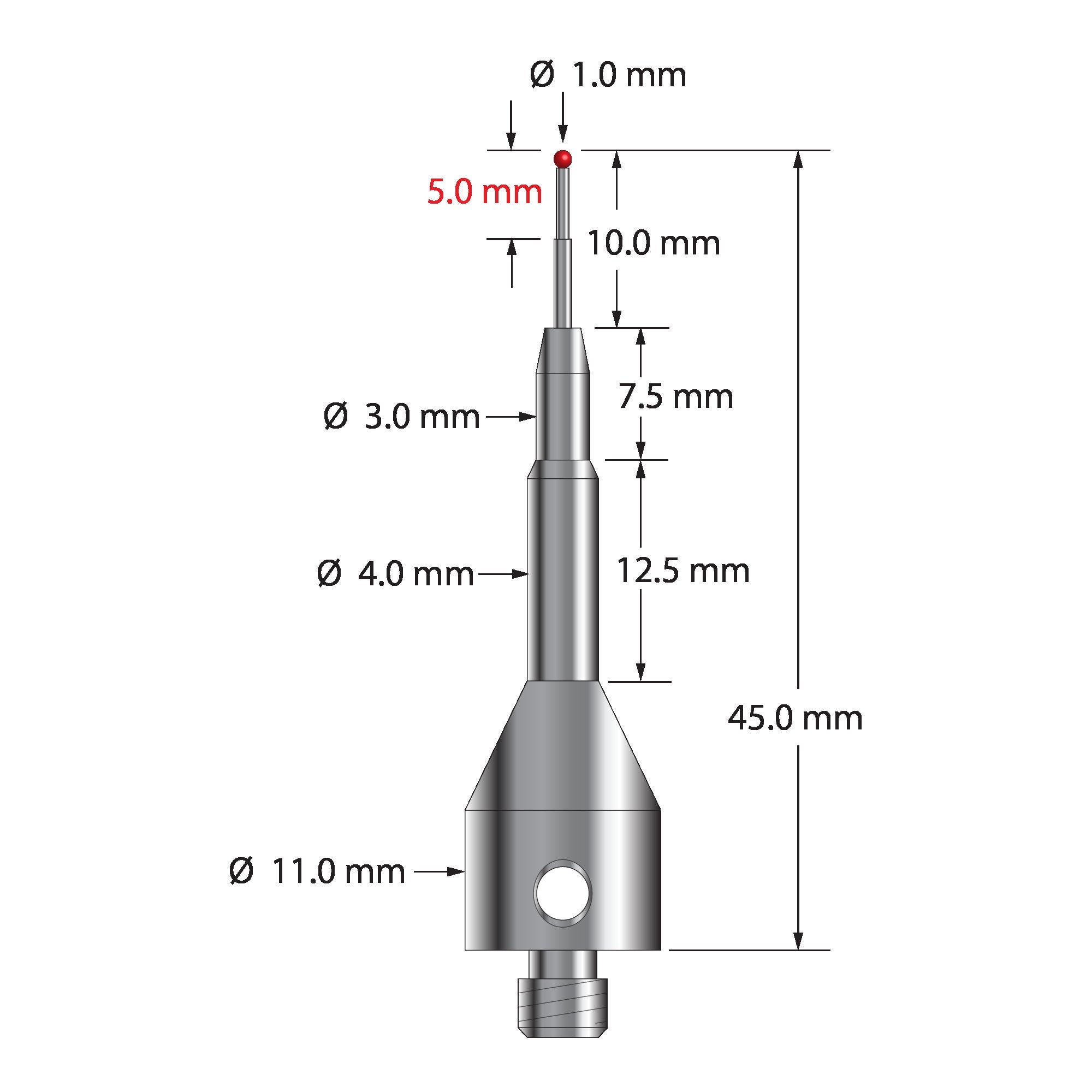

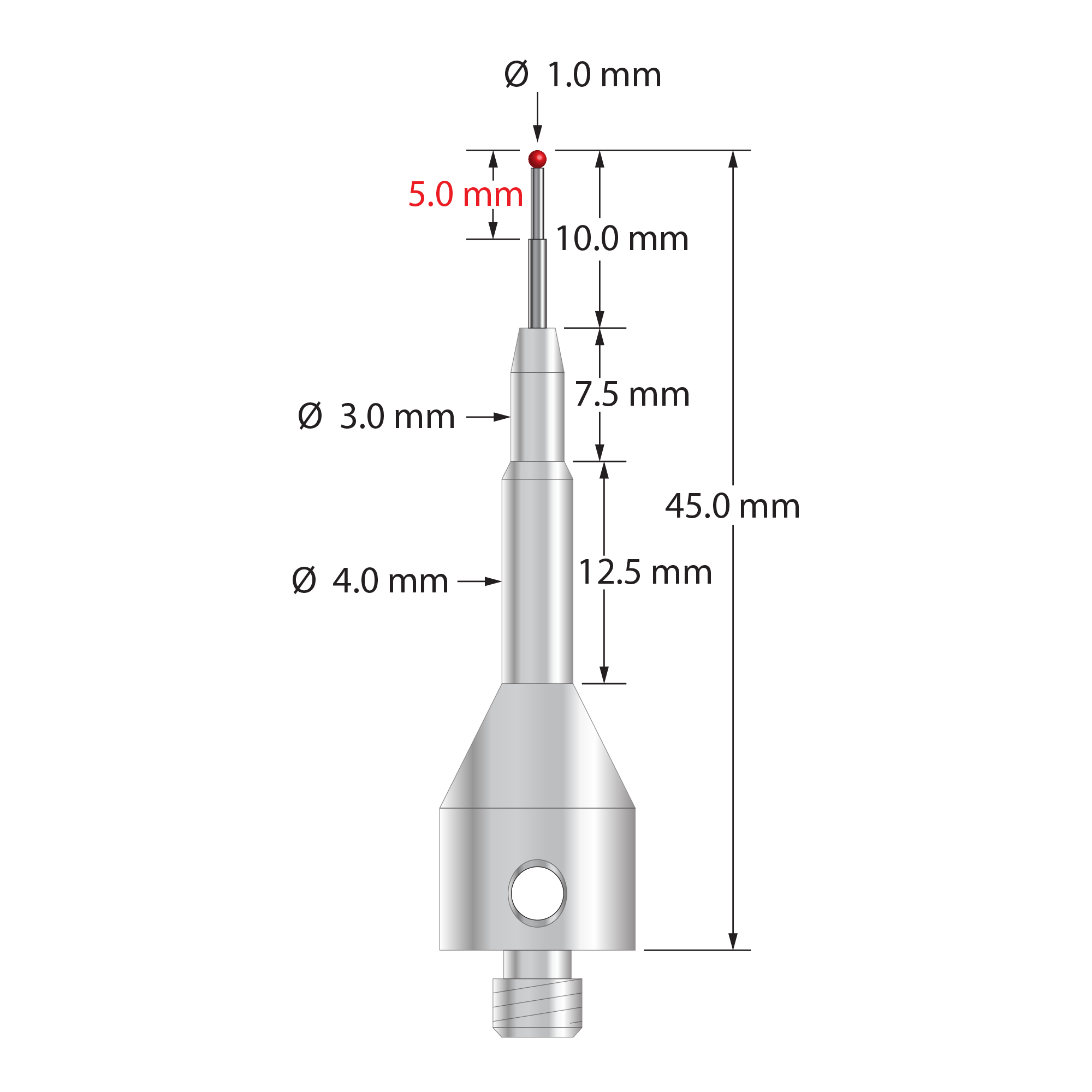

M5 stylus with 1.0 mm diameter ruby ball, stepped carbide stem, and 11.0 mm diameter by 25.0 mm long stainless steel base. Minor diameter of carbide stem is 0.7 mm, major diameter is 1.0 mm. Overall stylus length is 45.0 mm. Stylus weight is 10.23 grams.

Dimensions

ball diameter: 1.0

base diameter: 11.0

length 1: 45.0

length 2: 10.0

length 3: 5.0

stem diameter: 1.0

stem step diameter: 0.7

Materials

ball material: Ruby

base material: Stainless Steel

stem material: Carbide
