ASG-0660-C

Name: ASG-0660-C
Brand: Q-Mark Manufacturing Inc.
Price: 138.0 USD
Availability: InStock

$138.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

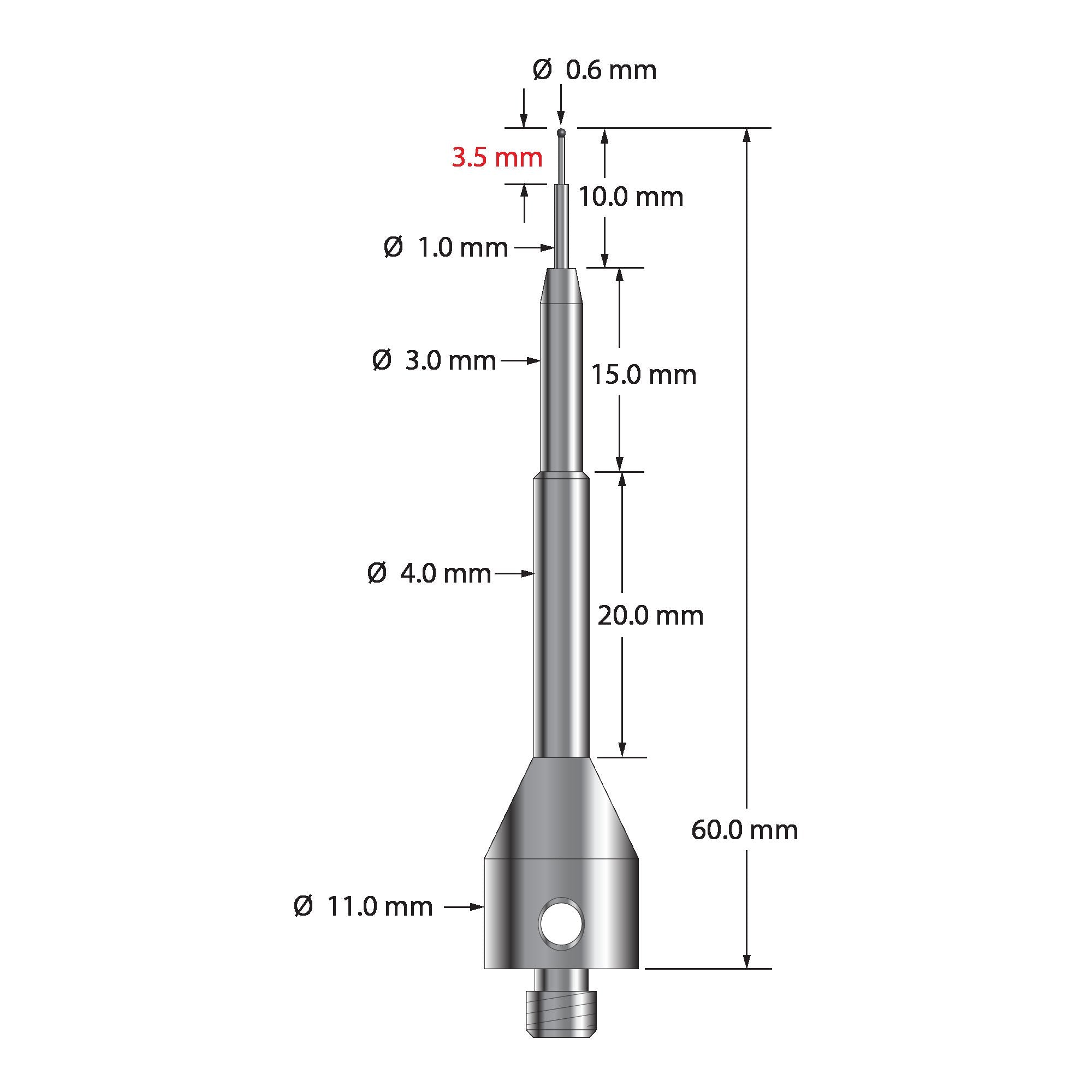

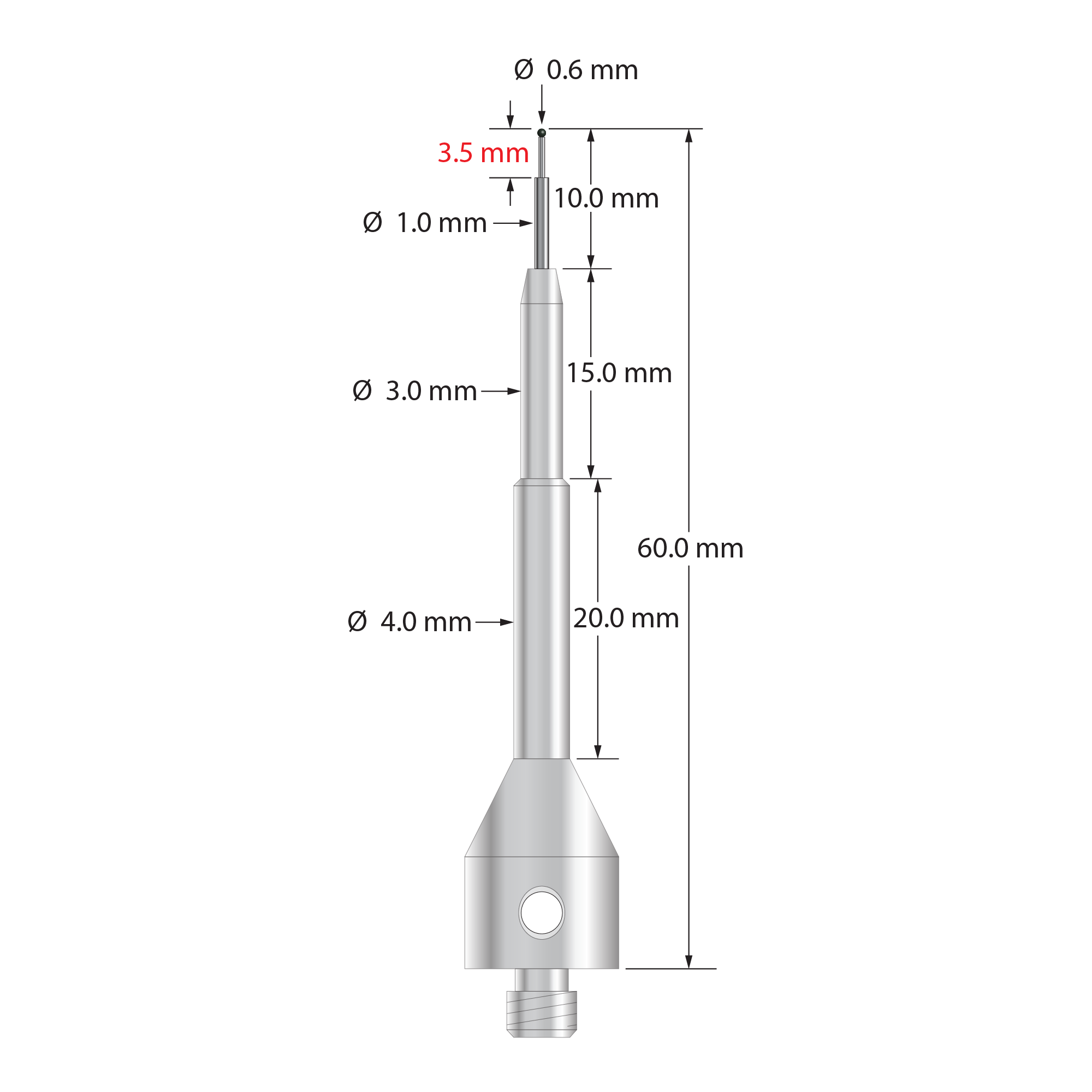

Extra length M5 stylus with 0.6 mm diameter carbide ball, stepped carbide stem, and 11.0 mm diameter by 50.0 mm long stainless steel base. Overall stylus length is 60.0 mm. Stylus weight is 11.13 grams.

Dimensions

ball diameter: 0.6

base diameter: 11.0

length 1: 60.0

length 2: 10.0

length 3: 3.5

stem diameter: 1.0

stem step diameter: 0.4

Materials

ball material: Carbide

base material: Stainless Steel

stem material: Carbide
