ARG-2058

Name: ARG-2058
Brand: Q-Mark Manufacturing Inc.
Price: 80.0 USD
Availability: InStock

$80.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

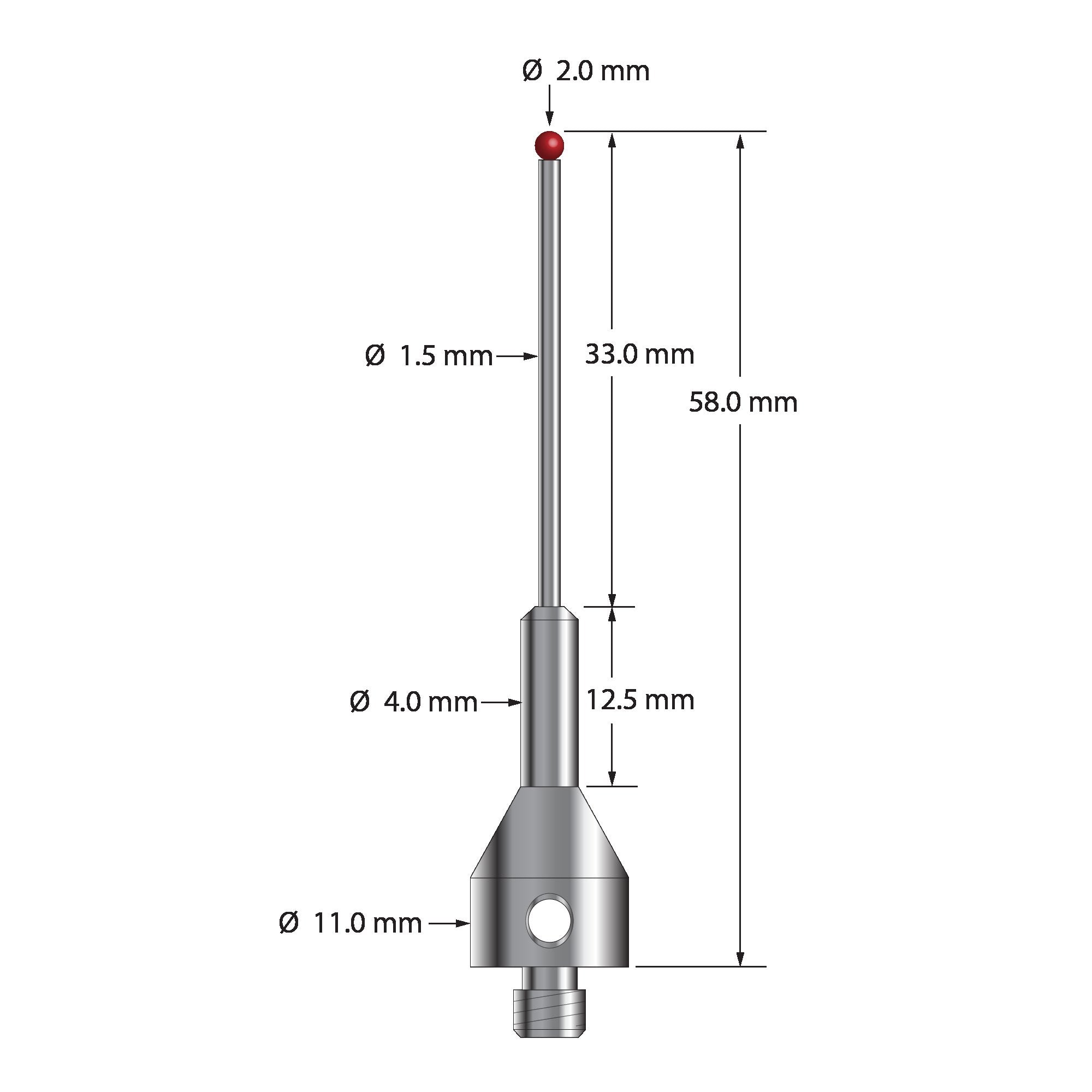

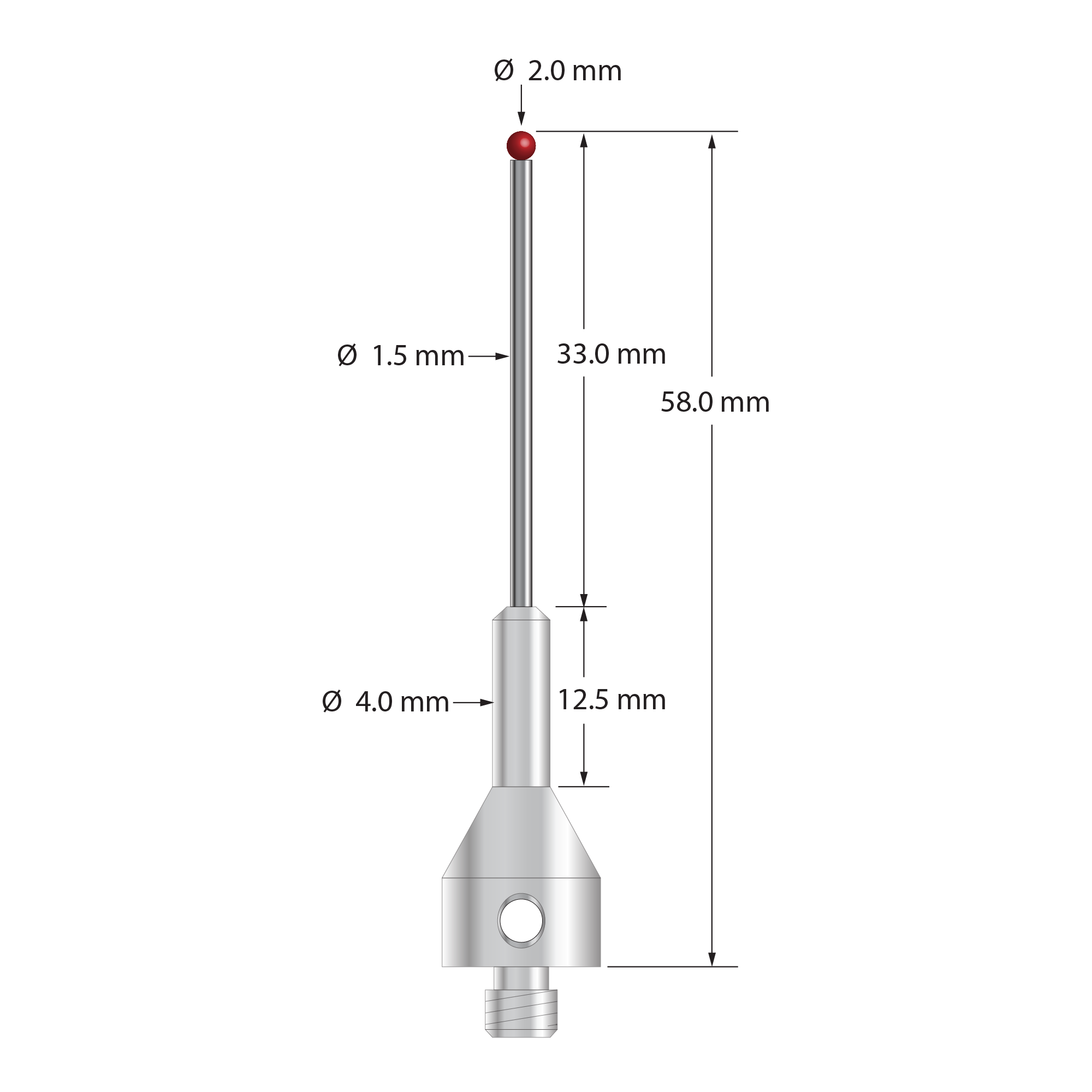

M5 stylus with 2.0 mm diameter ruby ball, 1.5 mm diameter carbide stem, and 11.0 mm diameter by 25.0 mm long tapered stainless steel base. Overall stylus length is 58.0 mm. Stylus weight is 8.22 grams. Compare to Zeiss 602030-8068-000 and 626115-0207-058.

Dimensions

ball diameter: 2.0

base diameter: 11.0

length 1: 58.0

length 2: 33.0

stem diameter: 1.5

Materials

ball material: Ruby

base material: Stainless Steel

stem material: Carbide
