AQG-2032-D

Name: AQG-2032-D
Brand: Q-Mark Manufacturing Inc.
Price: 1070.0 USD
Availability: InStock

$1,070.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

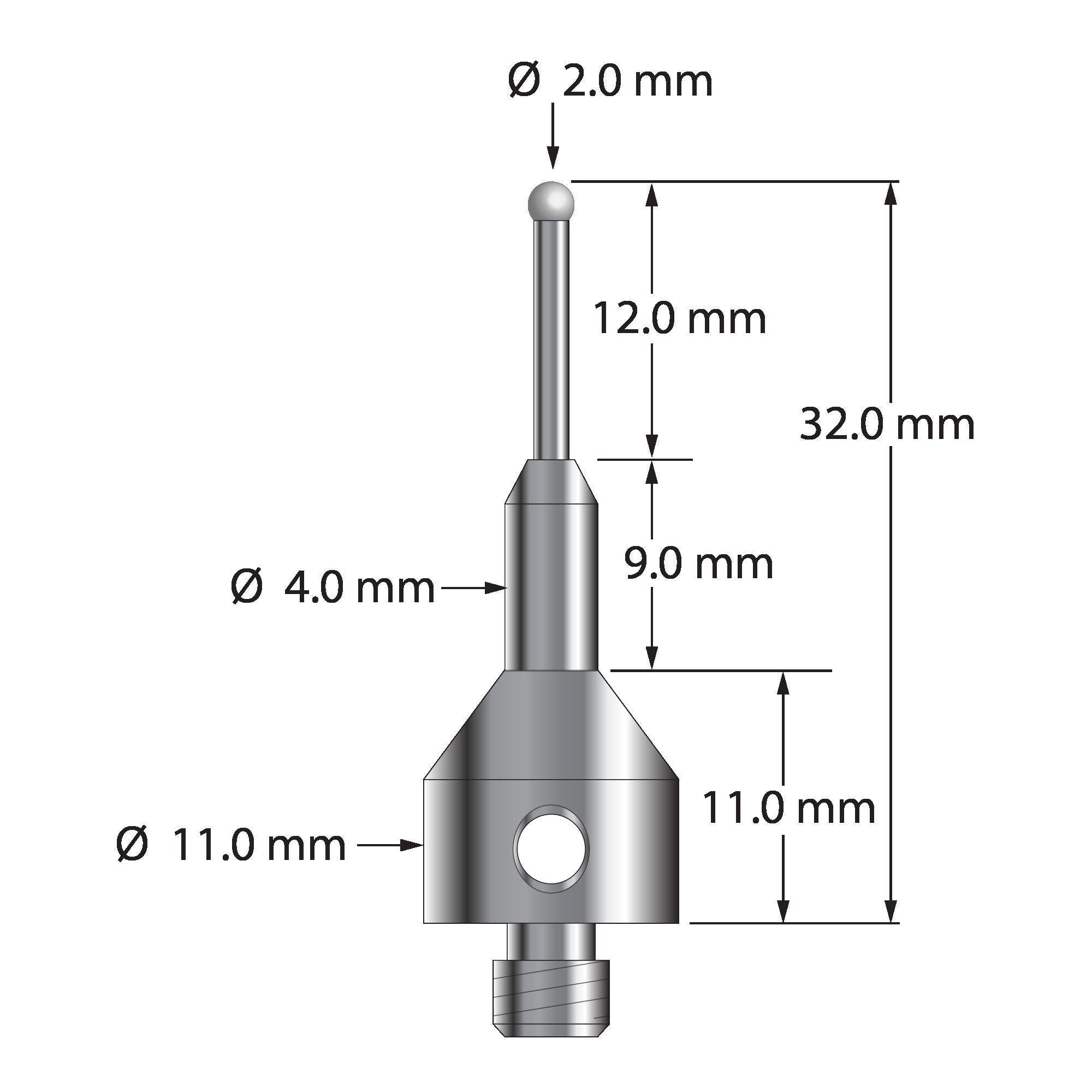

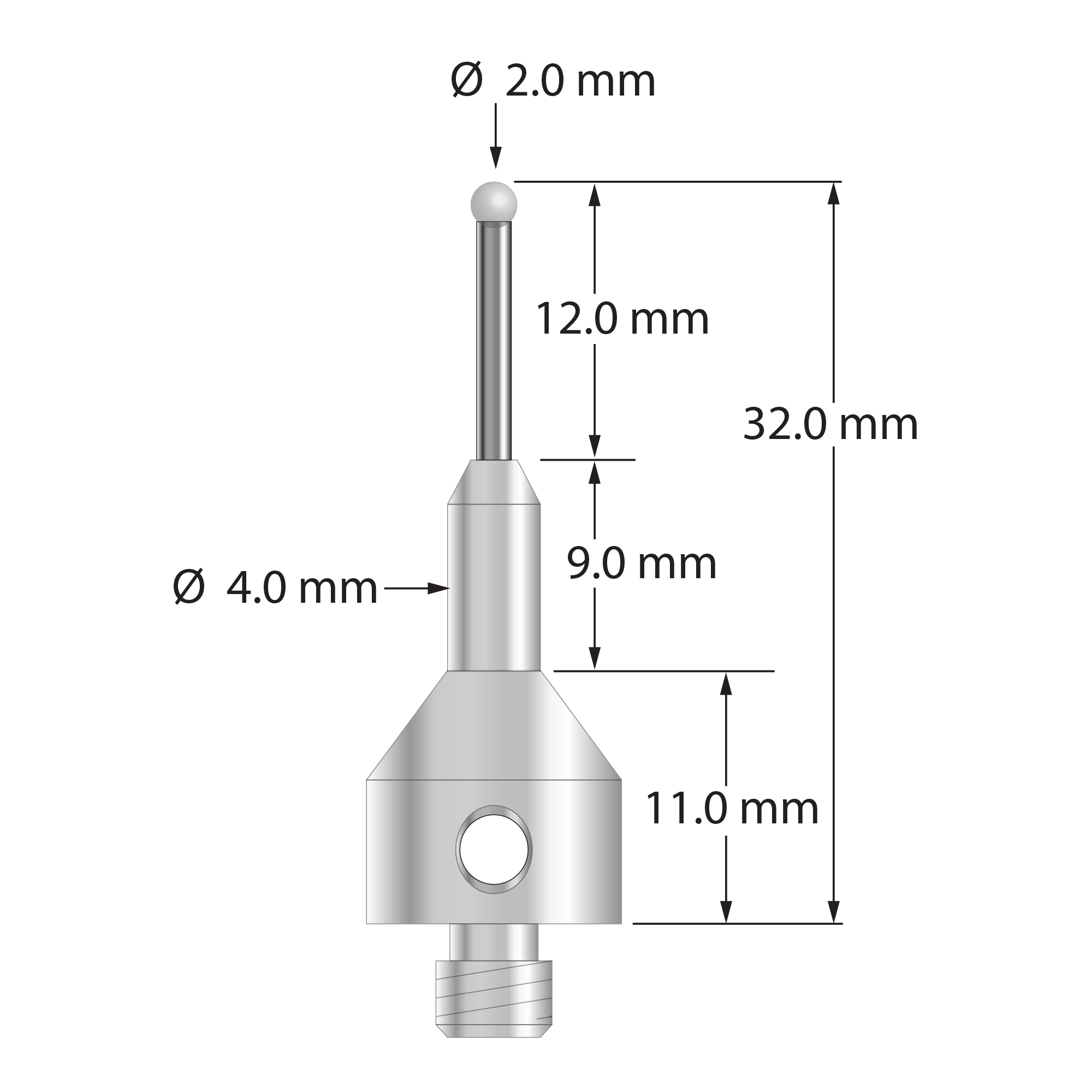

M5 stylus with 2.0 mm diameter solid diamond sphere, 1.5 mm diameter carbide stem, and 11.0 mm diameter stainless steel base. Weight is 7.12 grams. Compare to Zeiss 626115-0229-032.

Dimensions

ball diameter: 2.0

base diameter: 11.0

length 1: 32.0

length 2: 12.0

stem diameter: 1.0

Materials

ball material: Diamond

base material: Stainless Steel

stem material: Carbide
