AQG-1032
AQG-1032

AQG-1032

$70.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
 {% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

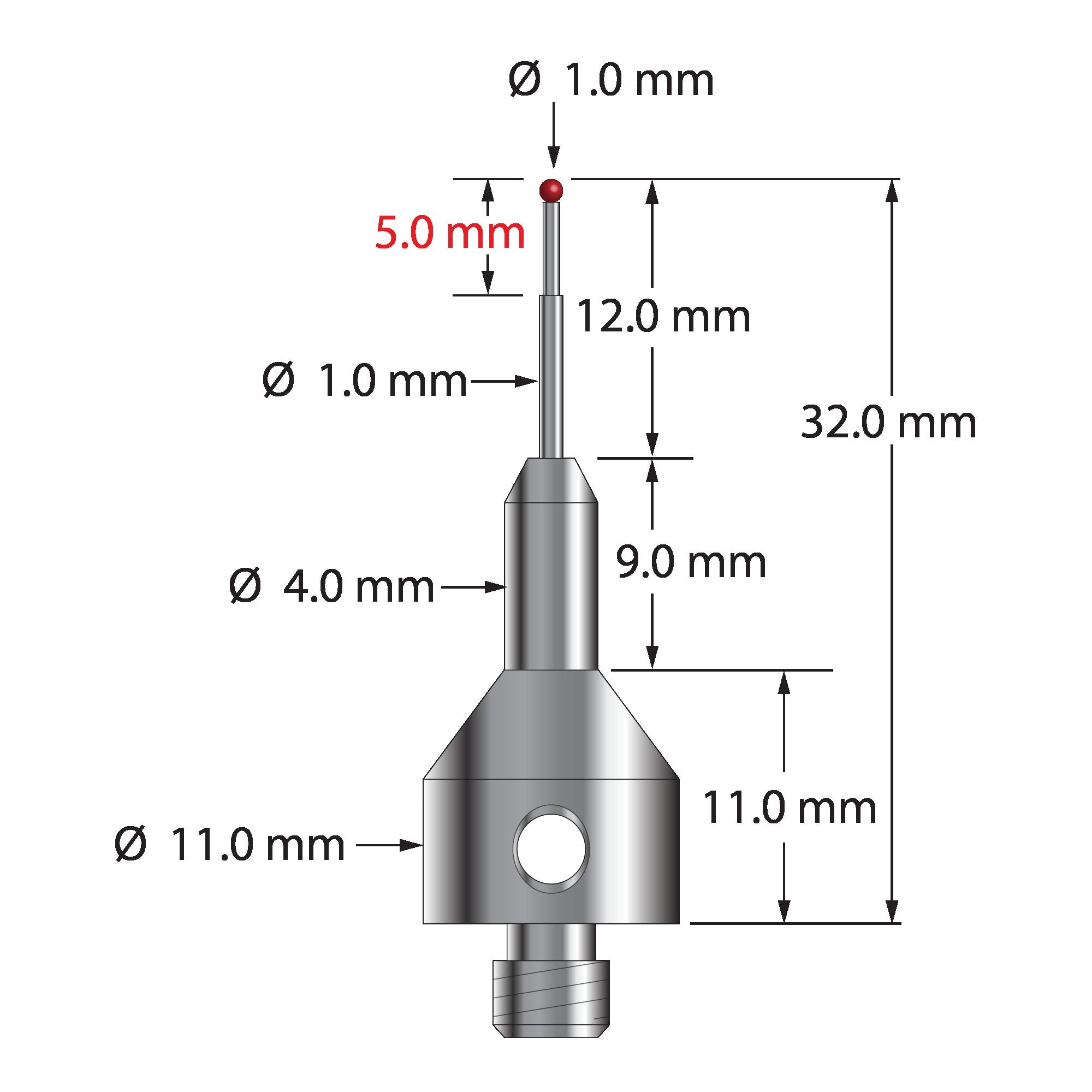

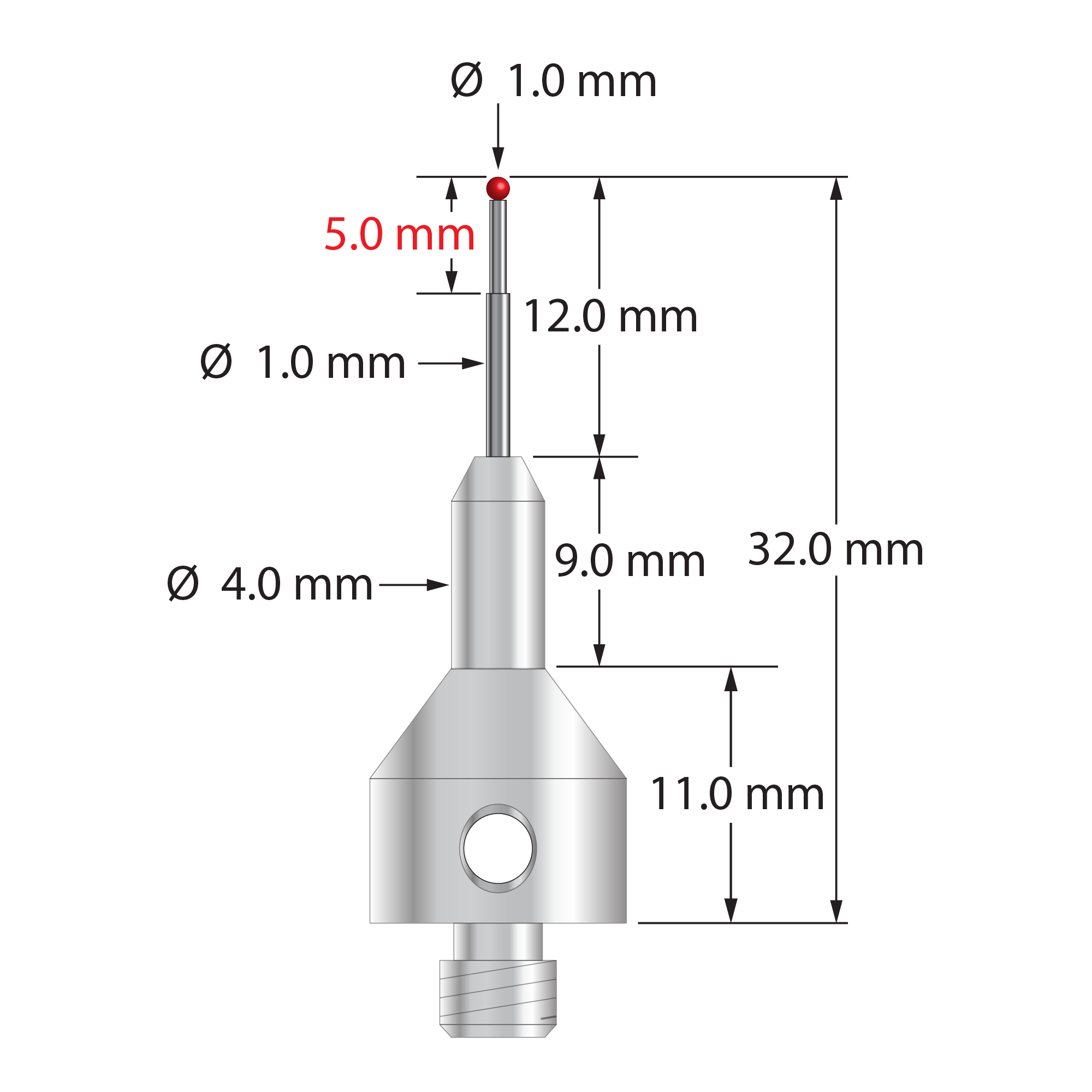

M5 stylus with 1.0 mm diameter ruby ball, stepped carbide stem, and 11.0 mm diameter by 20.0 mm long stainless steel base. Minor stem diameter is 0.7 mm, major diameter is 1.0 mm. Overall stylus length is 32.0 mm. Stylus weight is 7.13 grams. Compare to Zeiss 602030-8061-000, Renishaw A-5555-0053, Carbide Probes CPZ030-8061, and ITP FH M5 010 11 032.

Dimensions

ball diameter: 1.0
base diameter: 11.0
length: 32.0
length 2: 22.0
length 3: 12.0
length 4: 5.0
stem diameter: 4.0
stem first step diameter: 0.7
stem step diameter: 1.0

Materials

ball material: Ruby
base material: Stainless Steel
stem material: Carbide
