AQG-0832-SN

$110.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
{% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

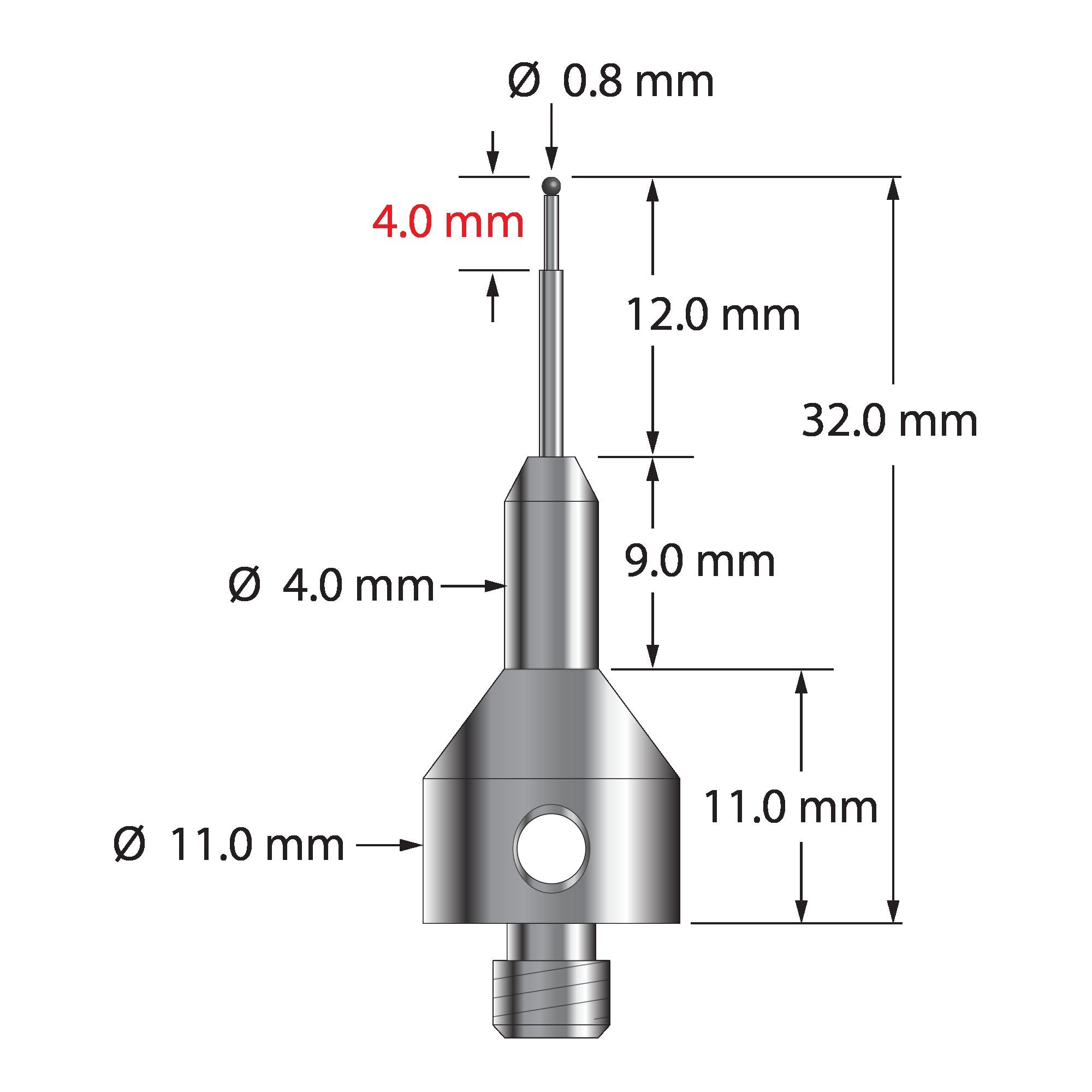

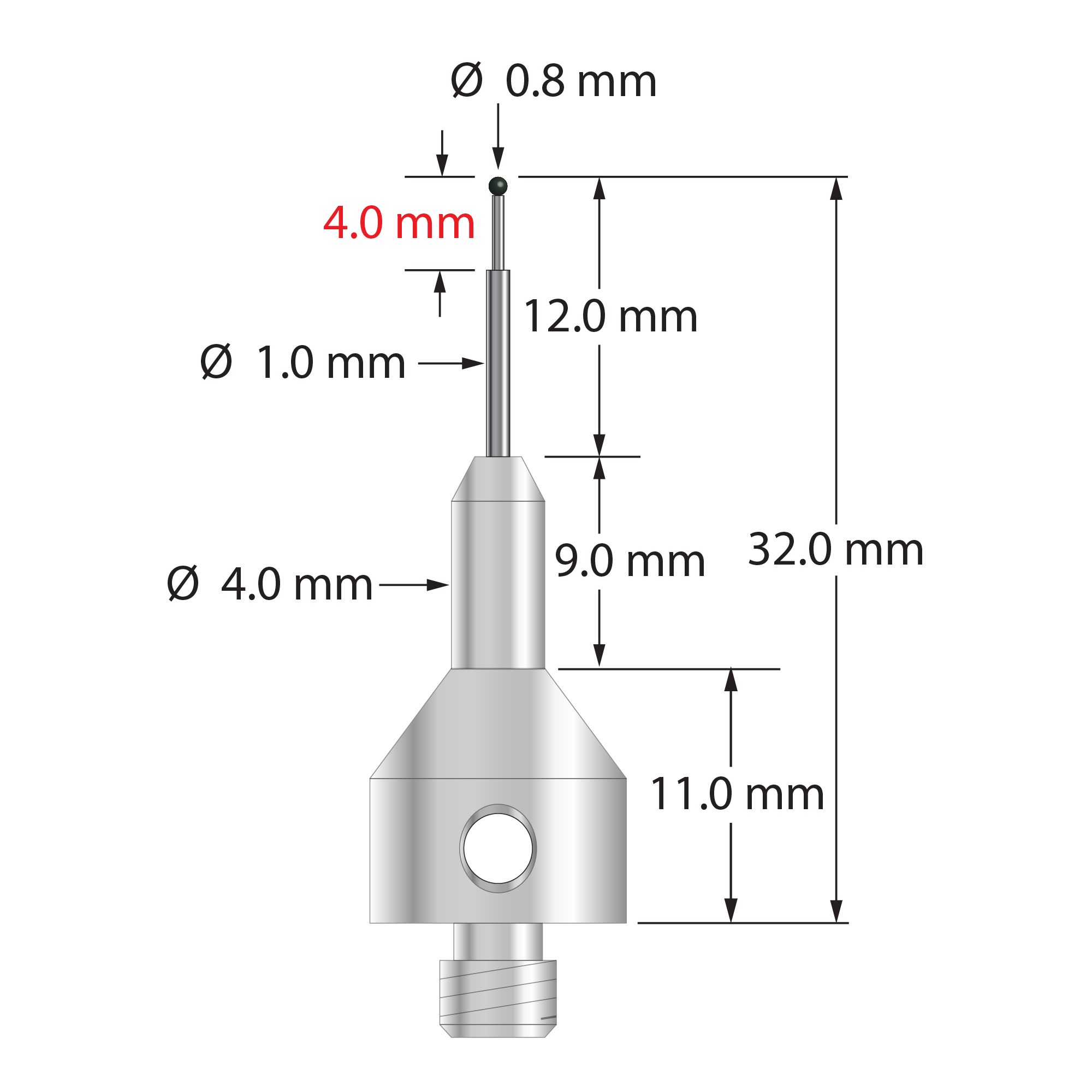

M5 stylus with 0.8 mm diameter silicon nitride ball, stepped carbide stem, and 11.0 mm diameter by 20.0 mm long stainless steel base. Minor stem diameter is 0.5 mm, major diameter is 1.0 mm. Overall stylus length is 32.0 mm. Stylus weight is 7.12 grams.

Dimensions

ball diameter: 0.8
base diameter: 11.0
length 1: 32.0
length 2: 12.0
length 3: 4.0
stem diameter: 1.0
stem step diameter: 0.6

Materials

ball material: Silicon Nitride
base material: Stainless Steel
