AFG-.2521.8

Name: AFG-.2521.8
Brand: Q-Mark Manufacturing Inc
Price: 105.0 USD
Availability: InStock

$105.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

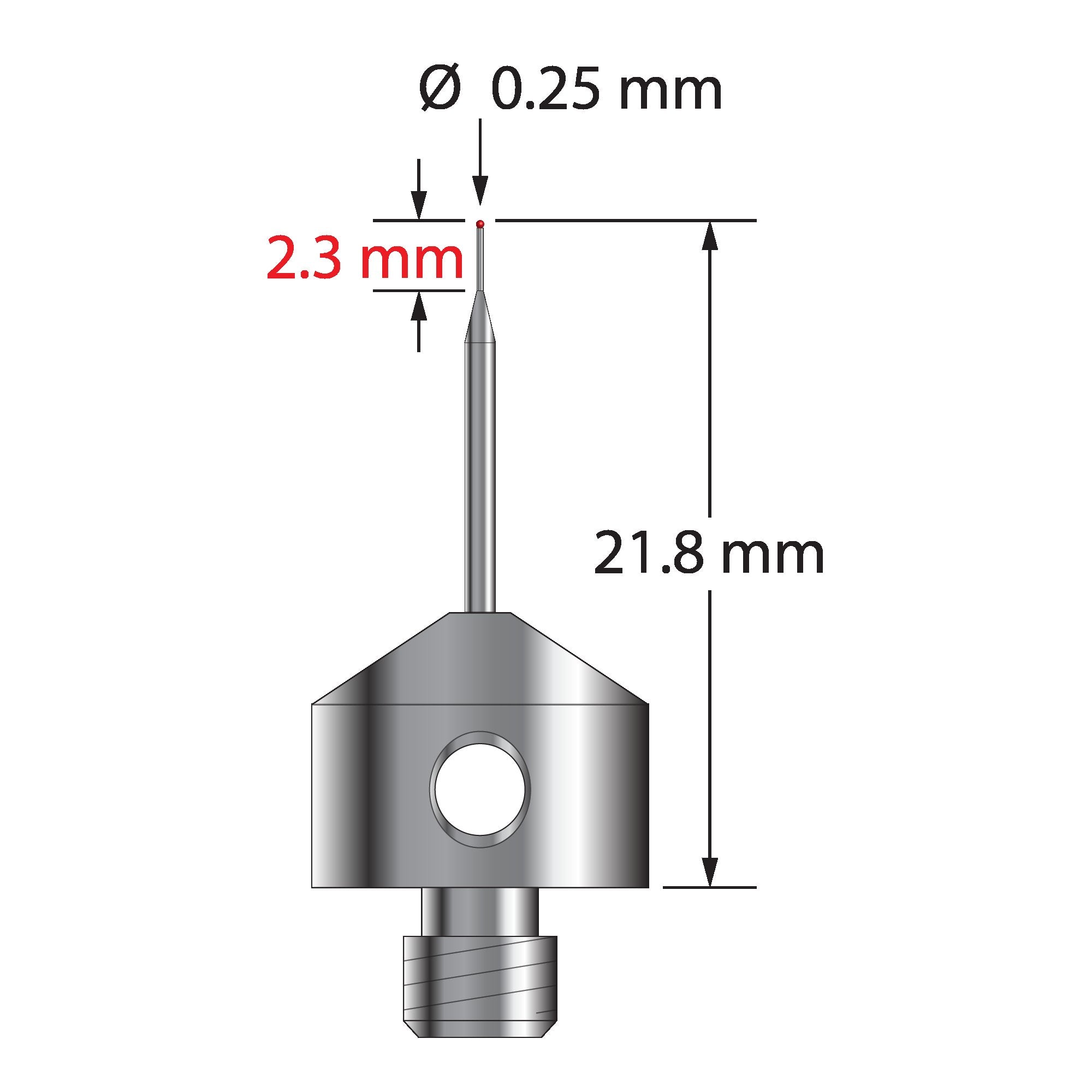

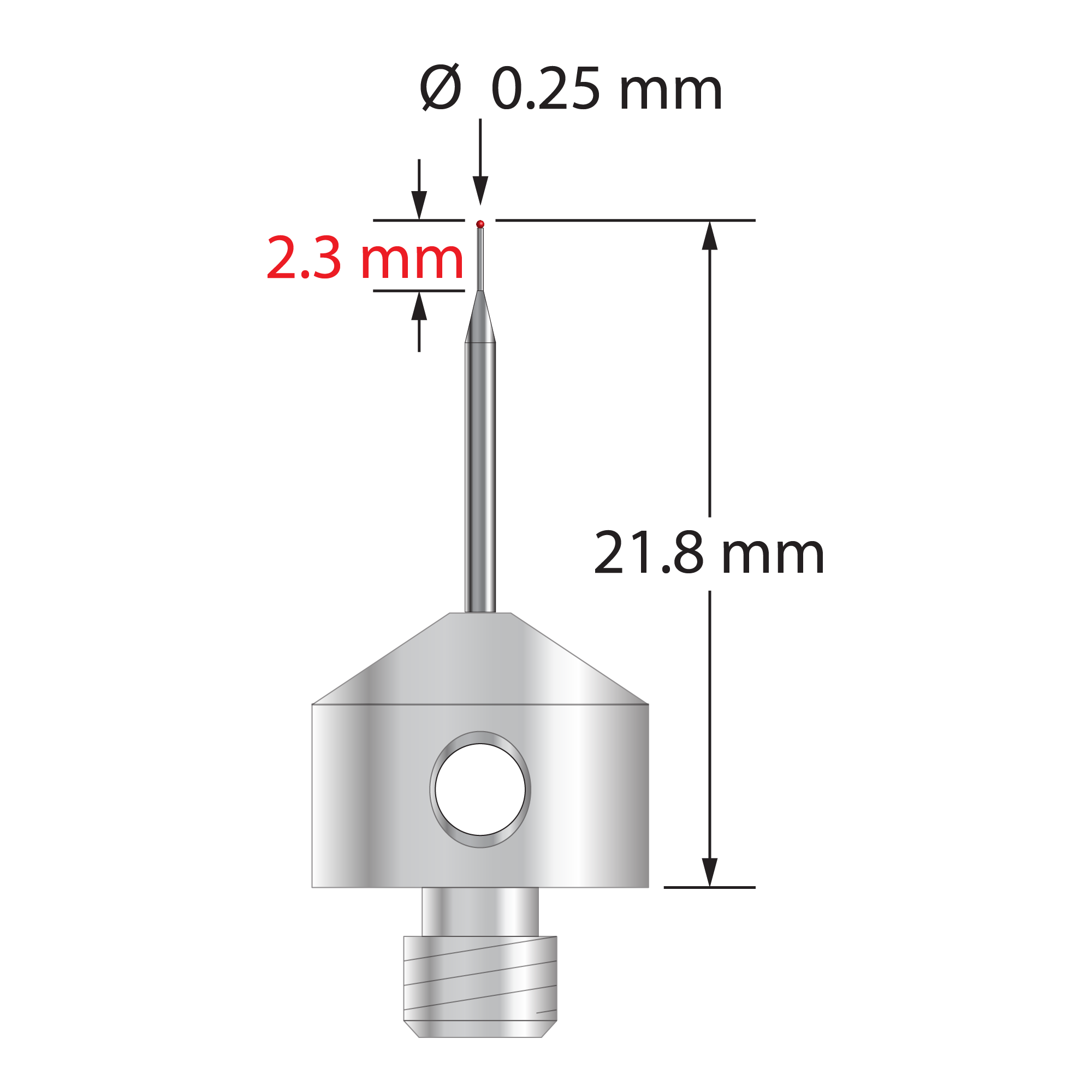

M5 stylus with 0.25 mm ruby ball, tapered carbide stem, and 11.0 mm diameter x 9.0 mm long stainless steel base. Minor stem diameter is 0.2 mm, major diameter is 1.0 mm. Overall stylus length is 21.8 mm. Stylus weight is 5.66 grams. Compare to Zeiss 626115-0021-022.

Dimensions

ball diameter: 0.25

base diameter: 11.0

length 1: 21.8

length 2: 12.8

length 3: 2.3

stem diameter: 1.0

stem step diameter: 0.2

Materials

ball material: Ruby

base material: Stainless Steel

stem material: Carbide
