AFG-2041
AFG-2041

AFG-2041

$85.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
 {% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

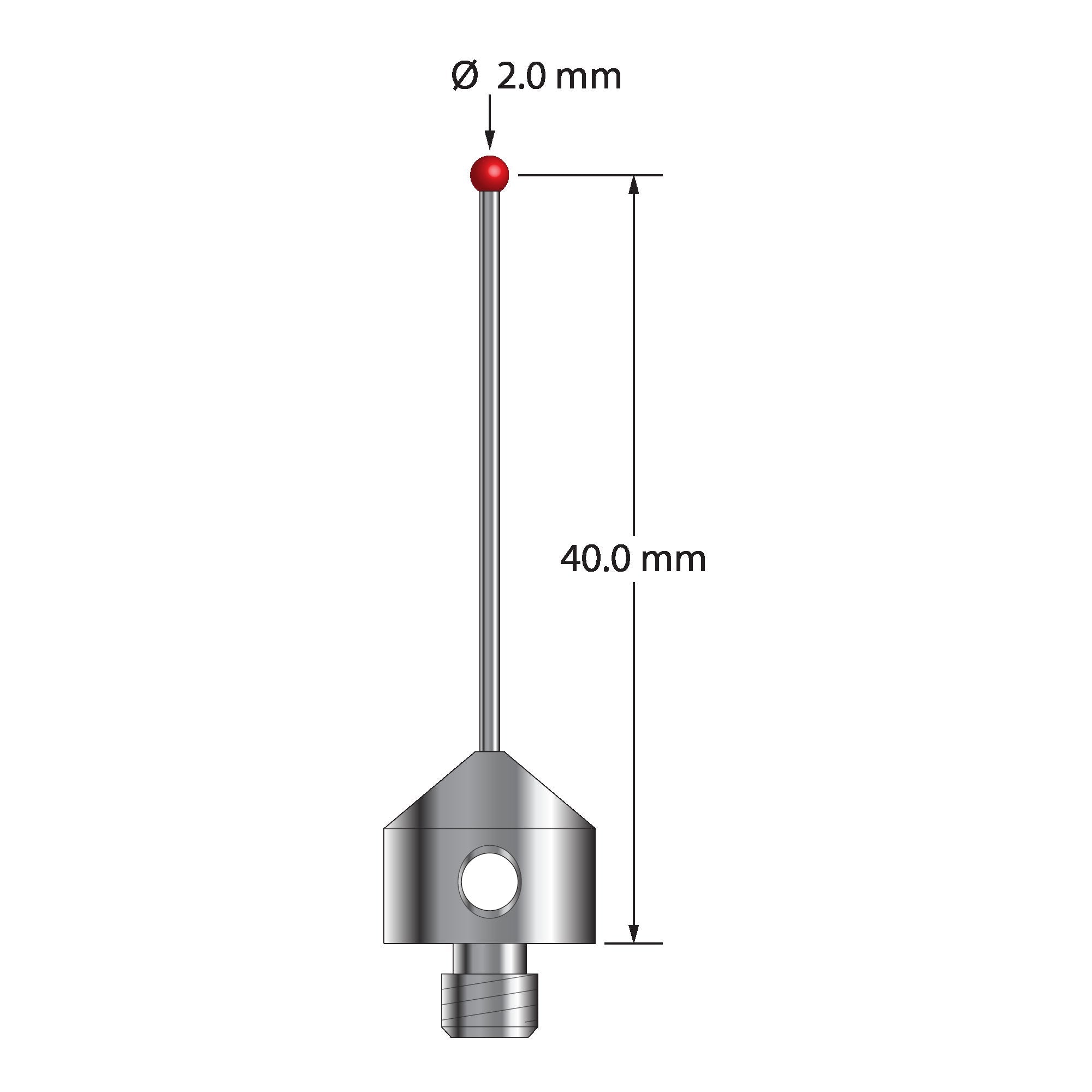

M5 stylus with 2.0 mm diameter ruby ball, 1.0 mm diameter carbide stem, and 11.0 mm diameter x 10.0 mm long stainless steel base. Stylus length to ball center is 40.0 mm. Stylus weight is 5.78 grams. Compare to Renishaw A-5003-5222 and Zeiss 626120-0062-000.

Dimensions

ball diameter: 2.0
base diameter: 11.0
length 1: 41.0
length 2: 31.0
stem diameter: 1.0

Materials

ball material: Ruby
base material: Stainless Steel
stem material: Carbide
