AFG-2040-SN

$96.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
{% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

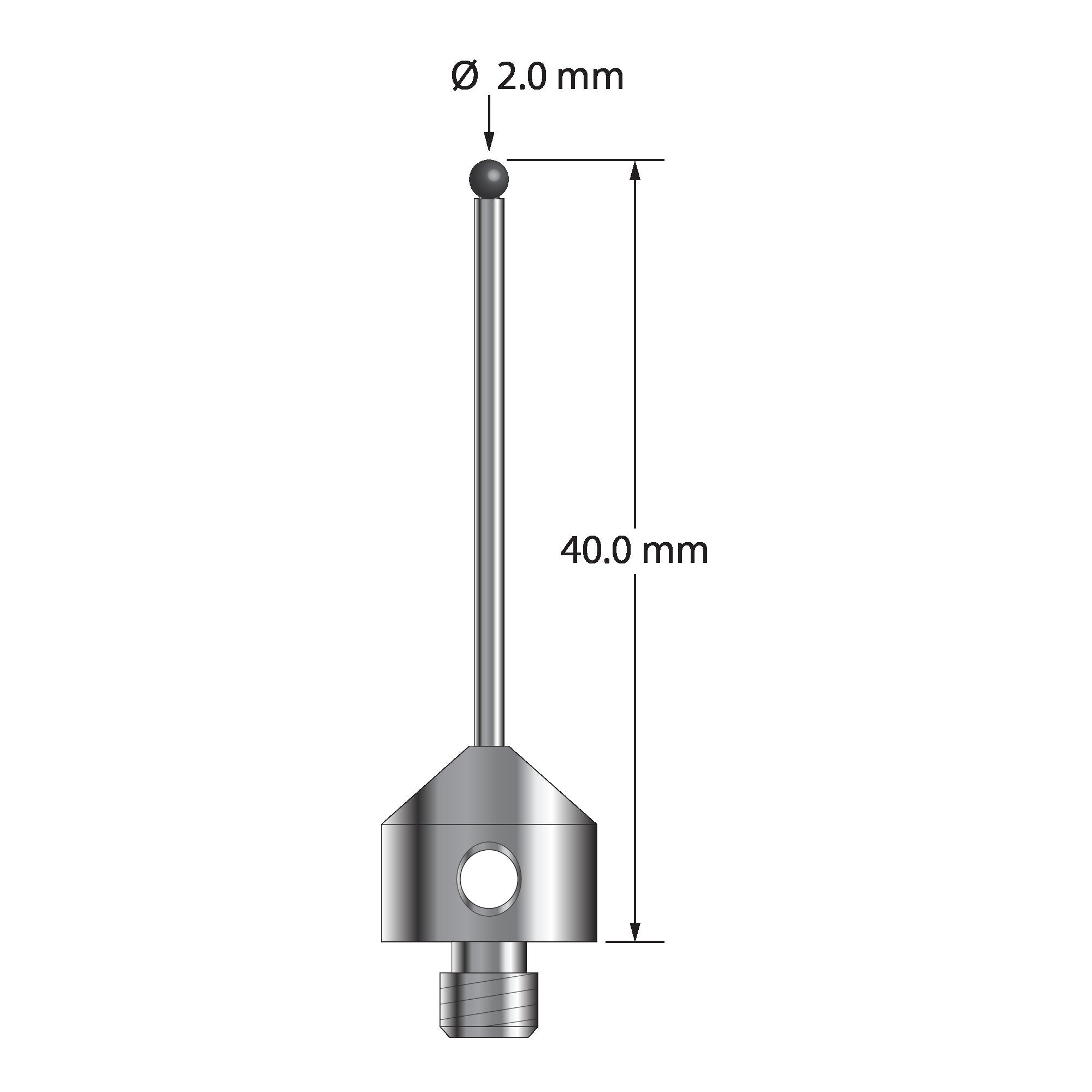

M5 stylus with 2.0 mm diameter silicon nitride ball, 1.5 mm diameter carbide stem, and 11.0 mm diameter x 10.0 mm long stainless steel base.  Overall stylus length is 40.0 mm.  Stylus weight is 6.32 grams.  Compare to Zeiss 626115-0202-040.

Dimensions

ball diameter: 2.0
base diameter: 11.0
length 1: 40.0
length 2: 30.0
stem diameter: 1.5

Materials

ball material: Silicon Nitride
base material: Stainless Steel
stem material: Carbide
