AFG-1552-DS1-SN

Name: AFG-1552-DS1-SN
Brand: Q-Mark Manufacturing Inc
SKU: AFG-1552-DS1-SN
Price: 105.0 USD
Availability: InStock

$105.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

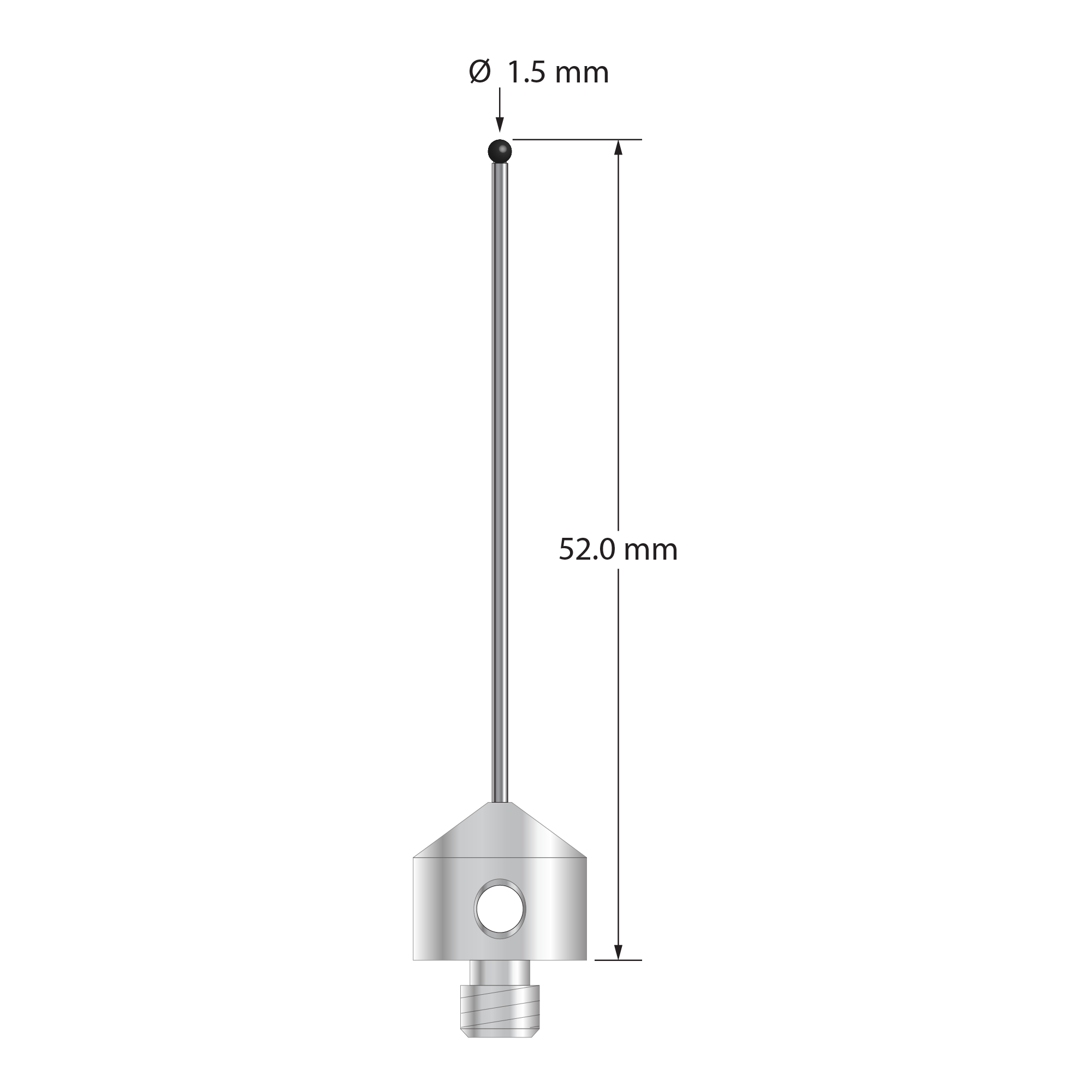

M5 stylus with 1.5 mm diameter silicon nitride ball, 1.0 mm diameter carbide stem, and 11.0 mm diameter x 10.0 mm long stainless steel base. Overall stylus length is 52.0 mm. Stylus weight is 5.98 grams. Compare to Zeiss 626105-0145-052.

Dimensions

ball diameter: 1.5

base diameter: 11.0

length 1: 52.0

length 2: 42.0

stem diameter: 1.0

Materials

ball material: Silicon Nitride

base material: Stainless Steel

stem material: Carbide
