AFG-1540

Name: AFG-1540
Brand: Q-Mark Manufacturing Inc.
Price: 90.0 USD
Availability: InStock

$90.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

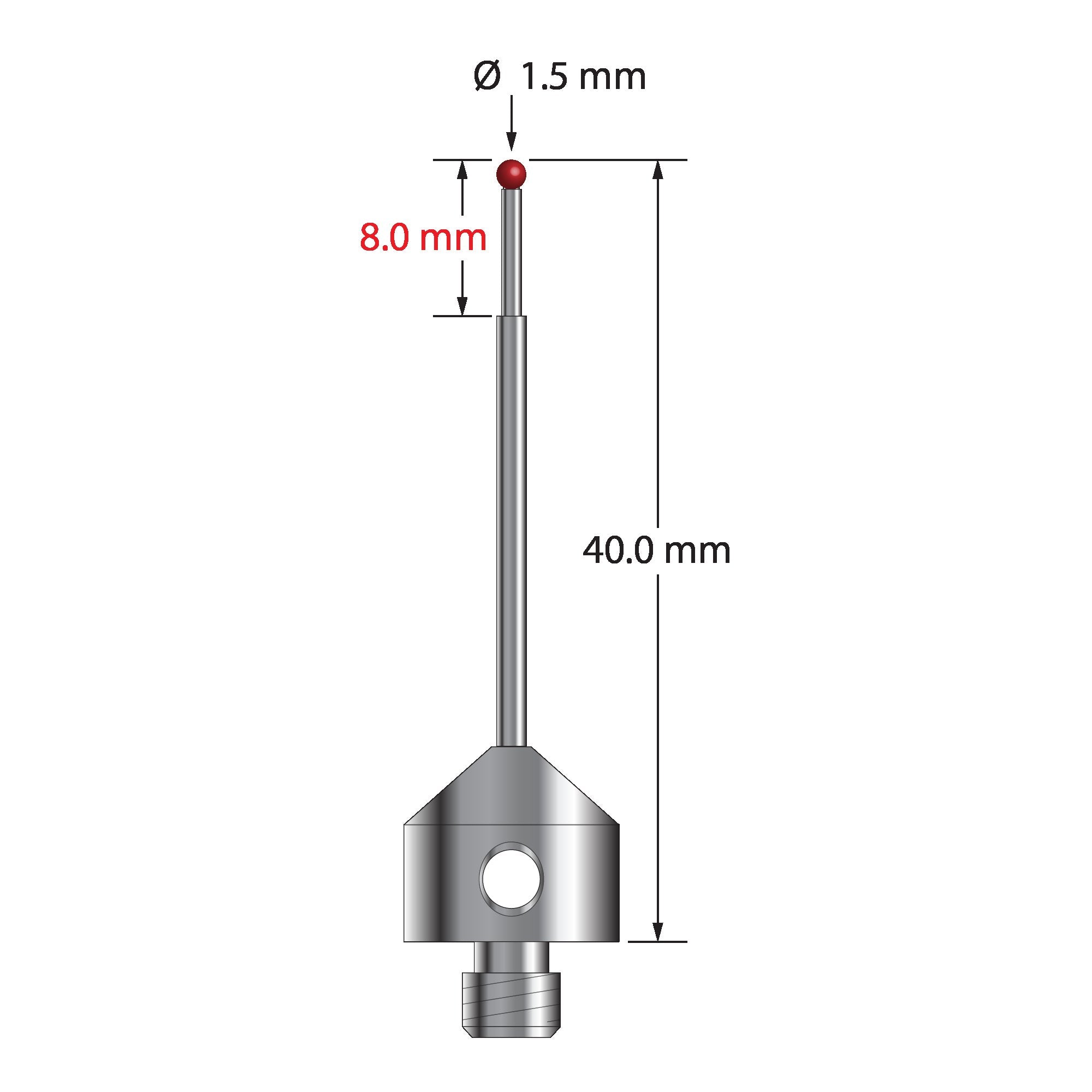

M5 stylus with 1.5 mm diameter ruby ball, stepped carbide stem, and 11.0 mm diameter x 10.0 mm long stainless steel base. Minor stem diameter is 1.0 mm, major diameter is 1.5 mm. Overall stylus length is 40.0 mm. Stylus weight is 6.29 grams.

Dimensions

ball diameter: 1.5

base diameter: 11.0

length 1: 40.0

length 2: 30.0

length 3: 8.0

stem diameter: 1.5

stem step diameter: 1.0

Materials

ball material: Ruby

base material: Stainless Steel

stem material: Carbide
