AFG-1344

$60.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
{% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

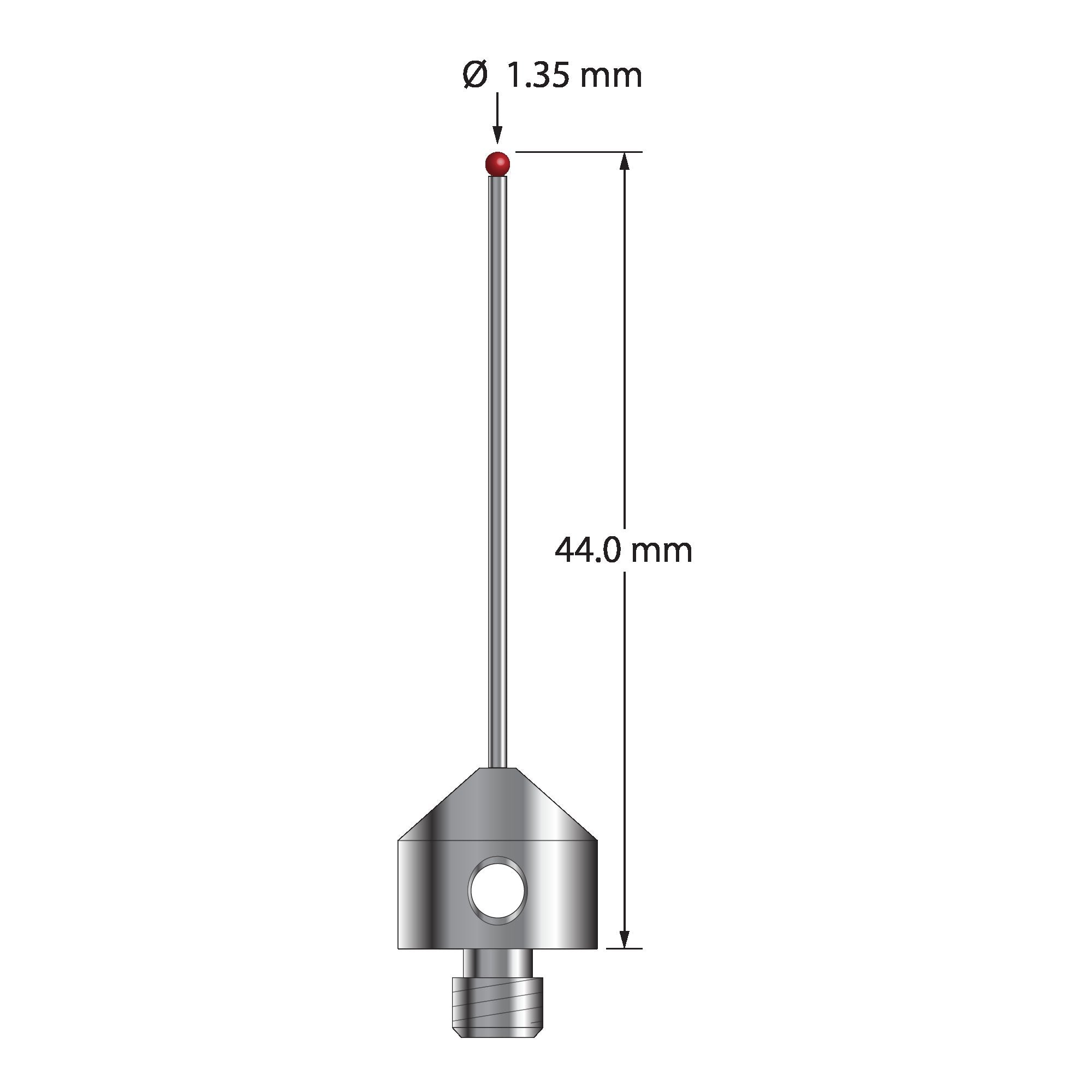

M5 stylus with 1.35 mm diameter ruby ball, 1.0 mm diameter carbide stem, and 11.0 mm diameter x 10.0 mm long stainless steel base.  Overall stylus length is 44.0 mm.  Stylus weight is 5.93 grams.

Dimensions

ball diameter: 1.35
base diameter: 11.0
length 1: 44.0
length 2: 34.0
stem diameter: 1.0

Materials

ball material: Ruby
base material: Stainless Steel
stem material: Carbide
