AFG-1024-TX

Name: AFG-1024-TX
Brand: Q-Mark Manufacturing Inc.
Price: 73.0 USD
Availability: InStock

$73.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

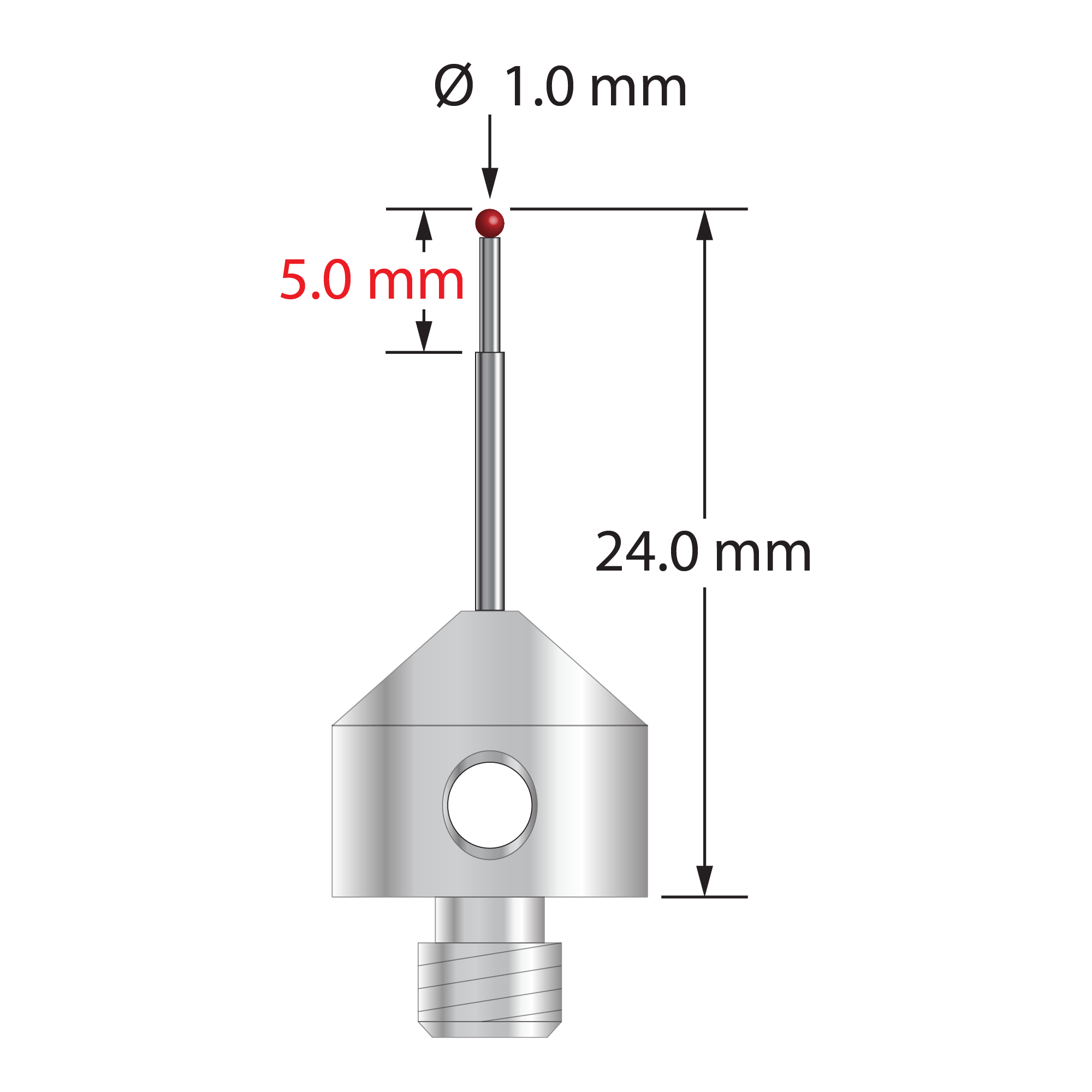

M5 Therm-X stylus with 1.0 mm diameter ruby ball, stepped carbide stem, and stainless steel base. Minor stem diameter is 0.8 mm, major diameter is 1.0 mm. Overall stylus length is 24.0 mm. Stylus weight is 4.70 grams. Compare to Zeiss 626105-0044-024.

Dimensions

ball diameter: 1.0

base diameter: 11.0

length 1: 24.0

length 2: 14.0

stem diameter: 1.0

stem step diameter: 0.8

Materials

ball material: Ruby

base material: Stainless Steel

stem material: Carbide
