AFG-1024-DS.8-D

$1,070.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
{% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

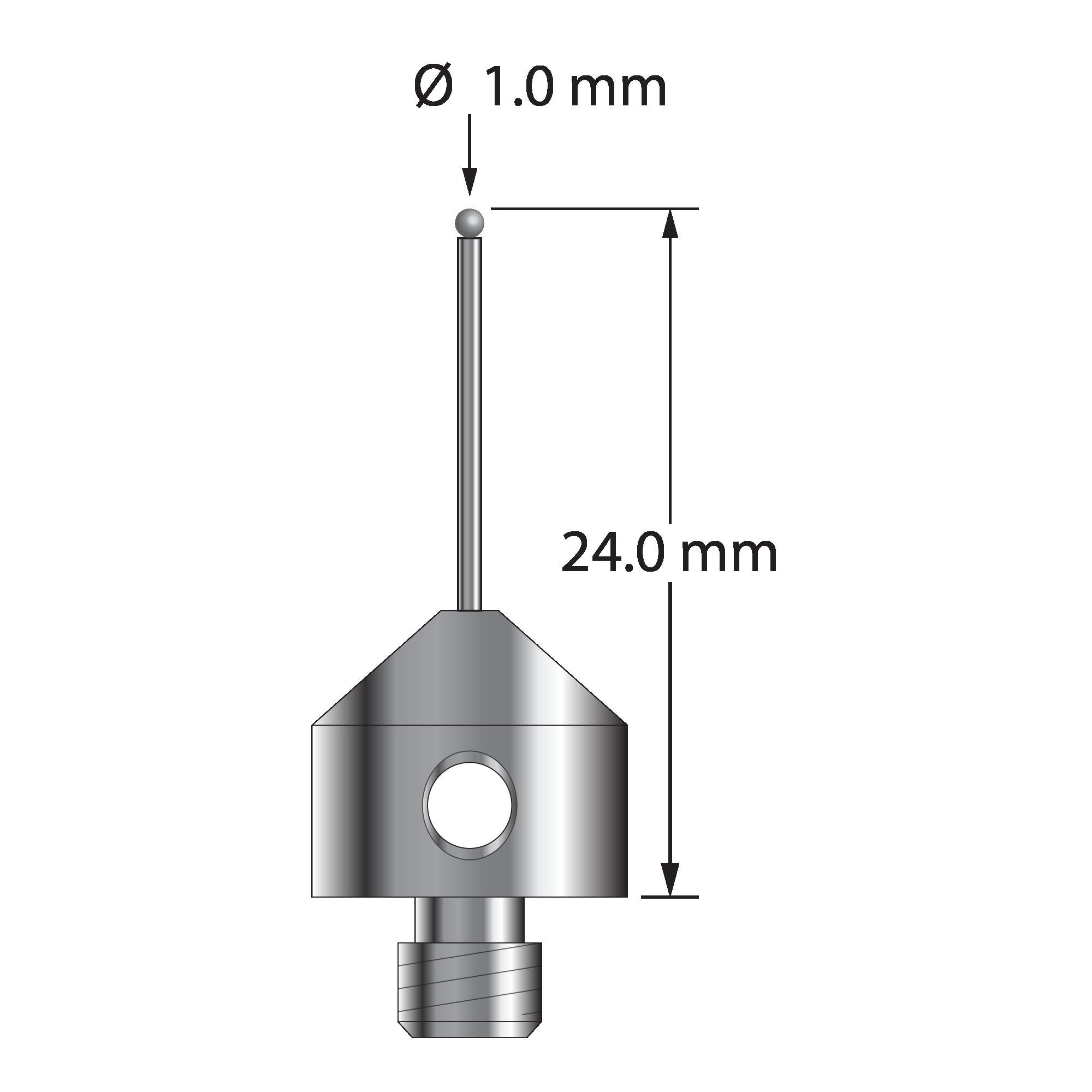

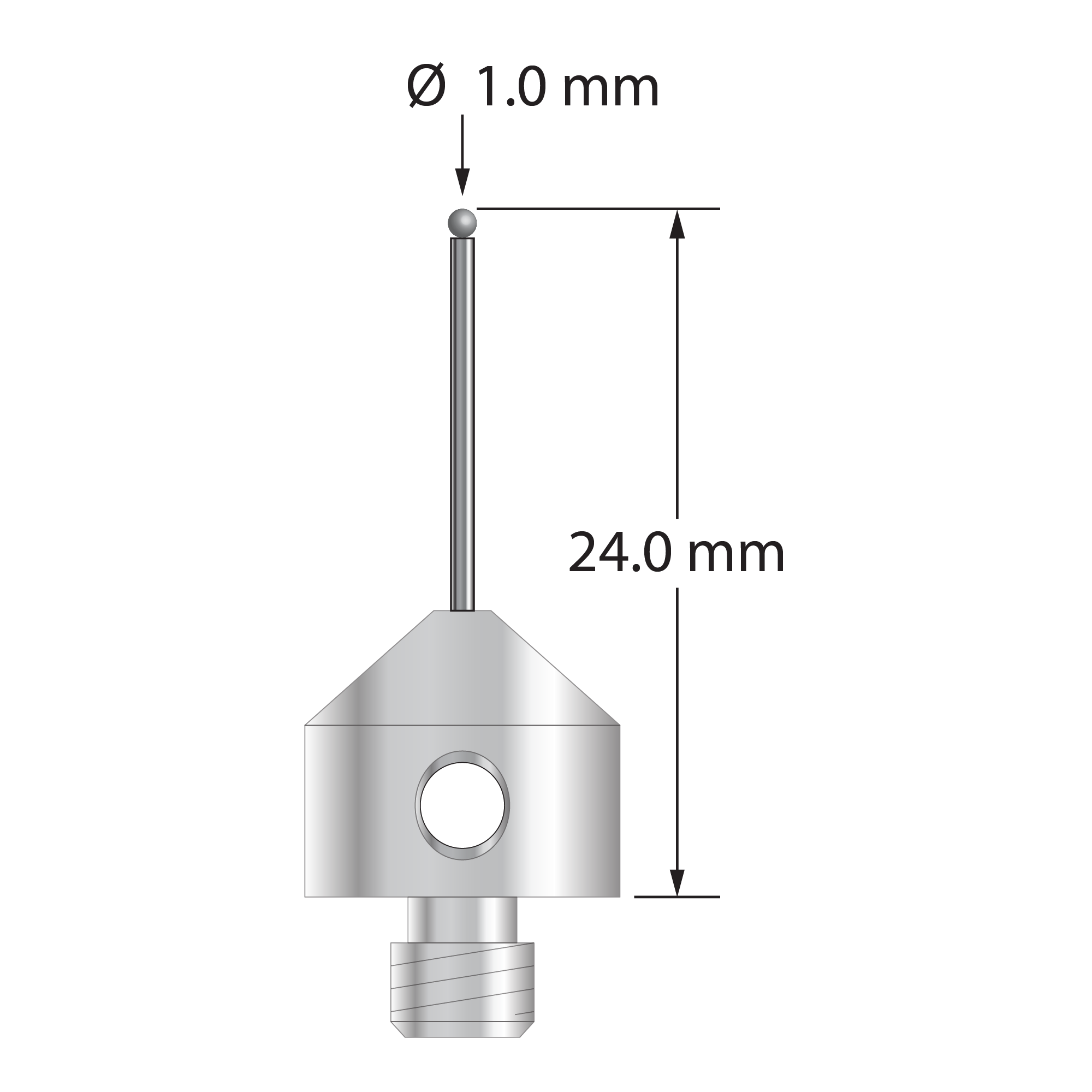

M5 stylus with 1.0 mm diameter solid diamond sphere, 0.8 mm diameter carbide stem, and 11.0 mm diameter x 10.0 mm long stainless steel base.  Stylus length to ball center is 24.0 mm.  Stylus weight is 5.60 grams.  Compare to Zeiss 626115-0109-024.

Dimensions

ball diameter: 1.0
base diameter: 11.0
length 1: 24.0
length 2: 14.0
stem diameter: 0.8

Materials

ball material: Diamond
base material: Stainless Steel
stem material: Carbide
