AFG-1022-DS.8-D

Name: AFG-1022-DS.8-D
Brand: Q-Mark Manufacturing Inc.
Price: 1075.0 USD
Availability: InStock

$1,075.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

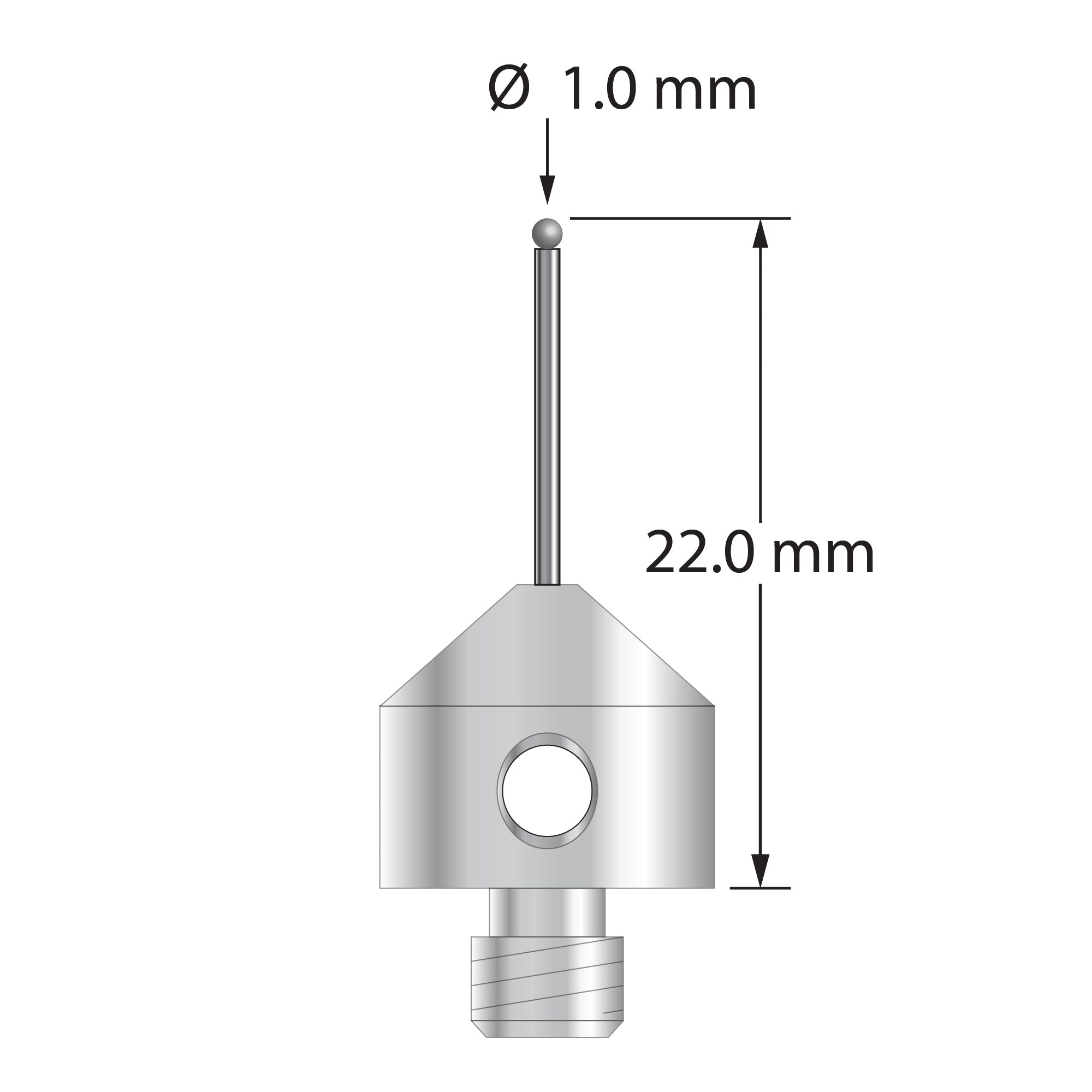

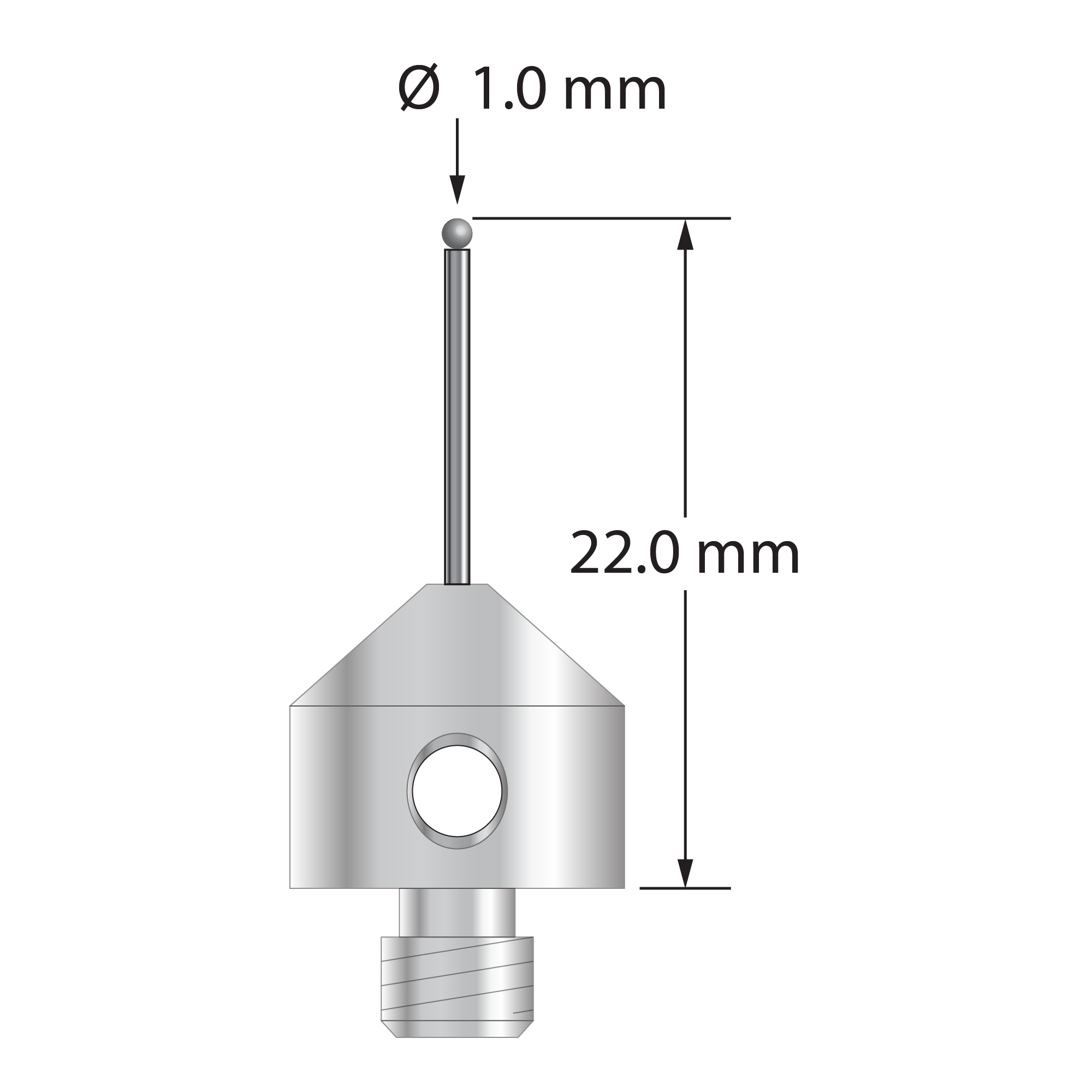

M5 stylus with 1.0 mm diameter solid diamond sphere, 0.8 mm diameter carbide stem, and 11.0 mm diameter x 10.0 mm long stainless steel base. Overall stylus length is 22.0 mm. Stylus weight is 5.56 grams.

Dimensions

ball diameter: 1.0

base diameter: 11.0

length 1: 22.0

length 2: 12.0

stem diameter: 0.8

Materials

ball material: Diamond

base material: Stainless Steel

stem material: Carbide
