AFG-1022.5-TX-SN

Name: AFG-1022.5-TX-SN
Brand: Q-Mark Manufacturing Inc
Price: 79.0 USD
Availability: InStock

$79.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

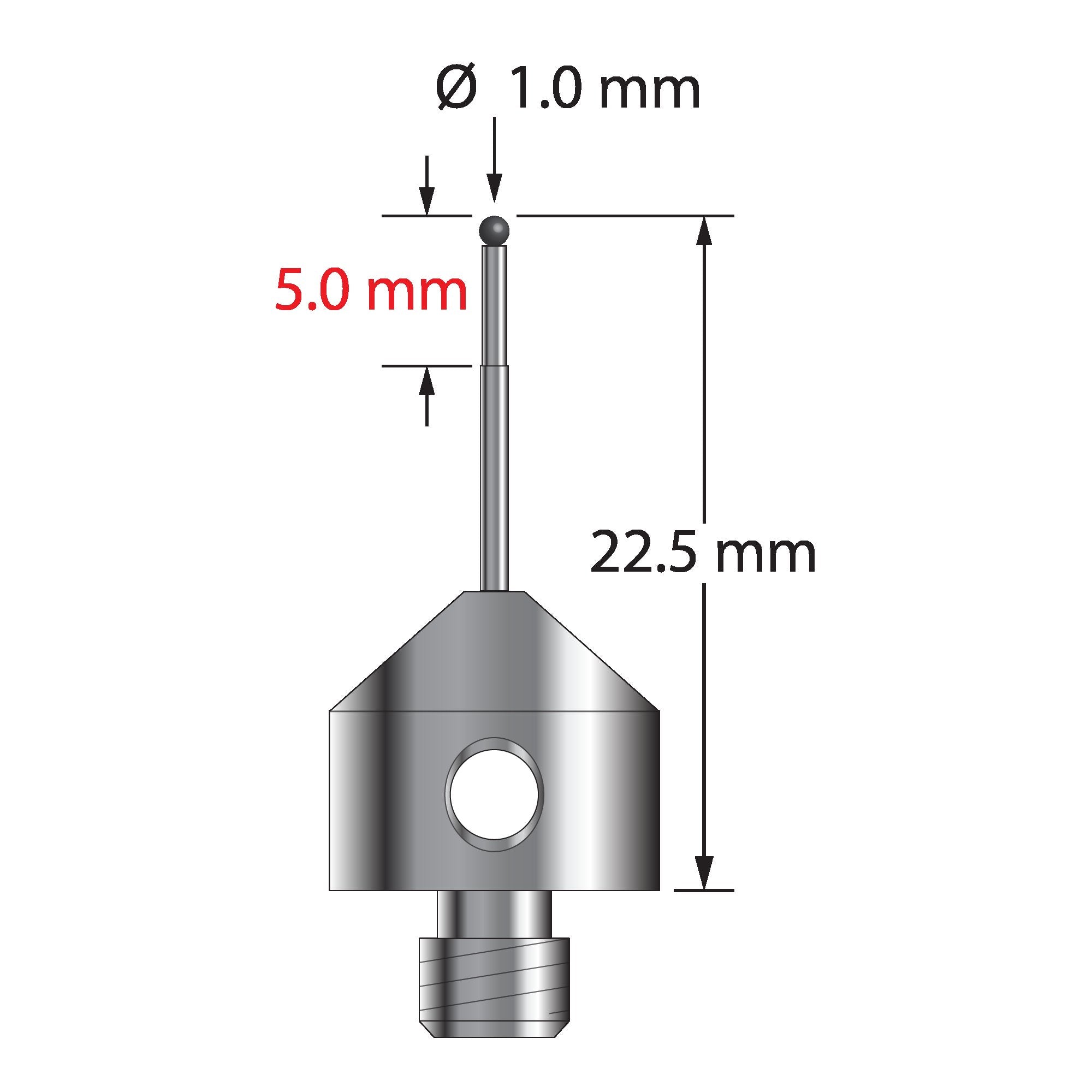

M5 stylus with 1.0 mm diameter silicon nitride ball, stepped carbide stem, and 11.0 mm diameter x 10.0 mm long titanium base. Minor stem diameter is 0.8 mm, major diameter is 1.0 mm. Overall stylus length is 22.5 mm. Stylus weight is 4.01 grams. Compare to Zeiss 626115-0104-022.

Dimensions

ball diameter: 1.0

base diameter: 11.0

length 1: 22.5

length 2: 12.5

length 3: 5.0

stem diameter: 1.0

stem step diameter: 0.8

Materials

ball material: Silicon Nitride

base material: Titanium
