AFG-1020-DS.7

Name: AFG-1020-DS.7
Brand: Q-Mark Manufacturing Inc.
Price: 65.0 USD
Availability: InStock

$65.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

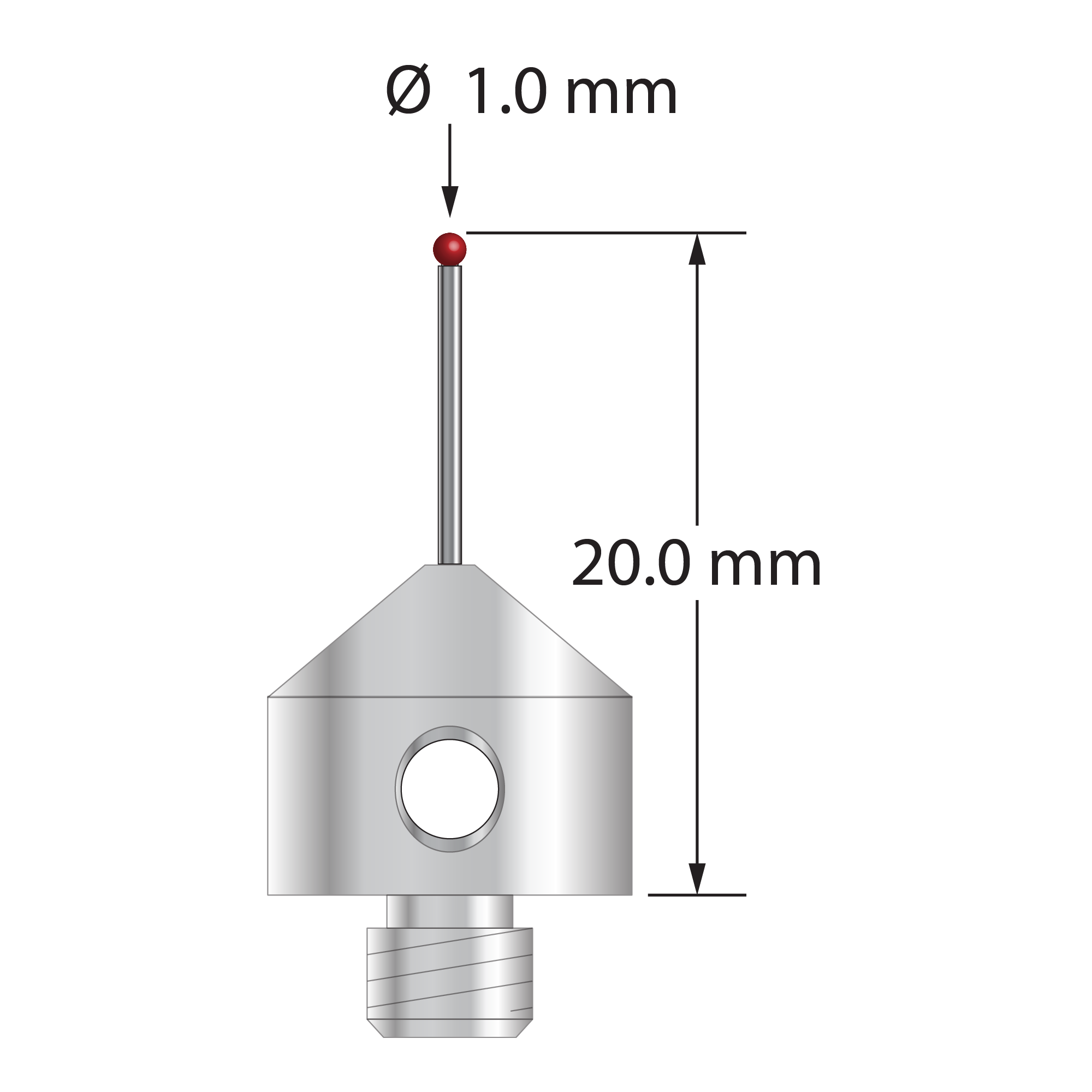

M5 stylus with 1.0 mm diameter ruby ball, 0.7 mm diameter carbide stem, and 11.0 mm diameter x 10.0 long stainless steel base. Overall stylus length is 20.0 mm. Stylus weight is 5.65 grams. Compare to Renishaw A-5003-5204.

Dimensions

ball diameter: 1.0

base diameter: 11.0

length 1: 20.0

length 2: 10.0

stem diameter: 0.7

Materials

ball material: Ruby

base material: Stainless Steel

stem material: Carbide
