AFG-1020.5-DS.7-SN

Name: AFG-1020.5-DS.7-SN
Brand: Q-Mark Manufacturing Inc.
Price: 105.0 USD
Availability: InStock

$105.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

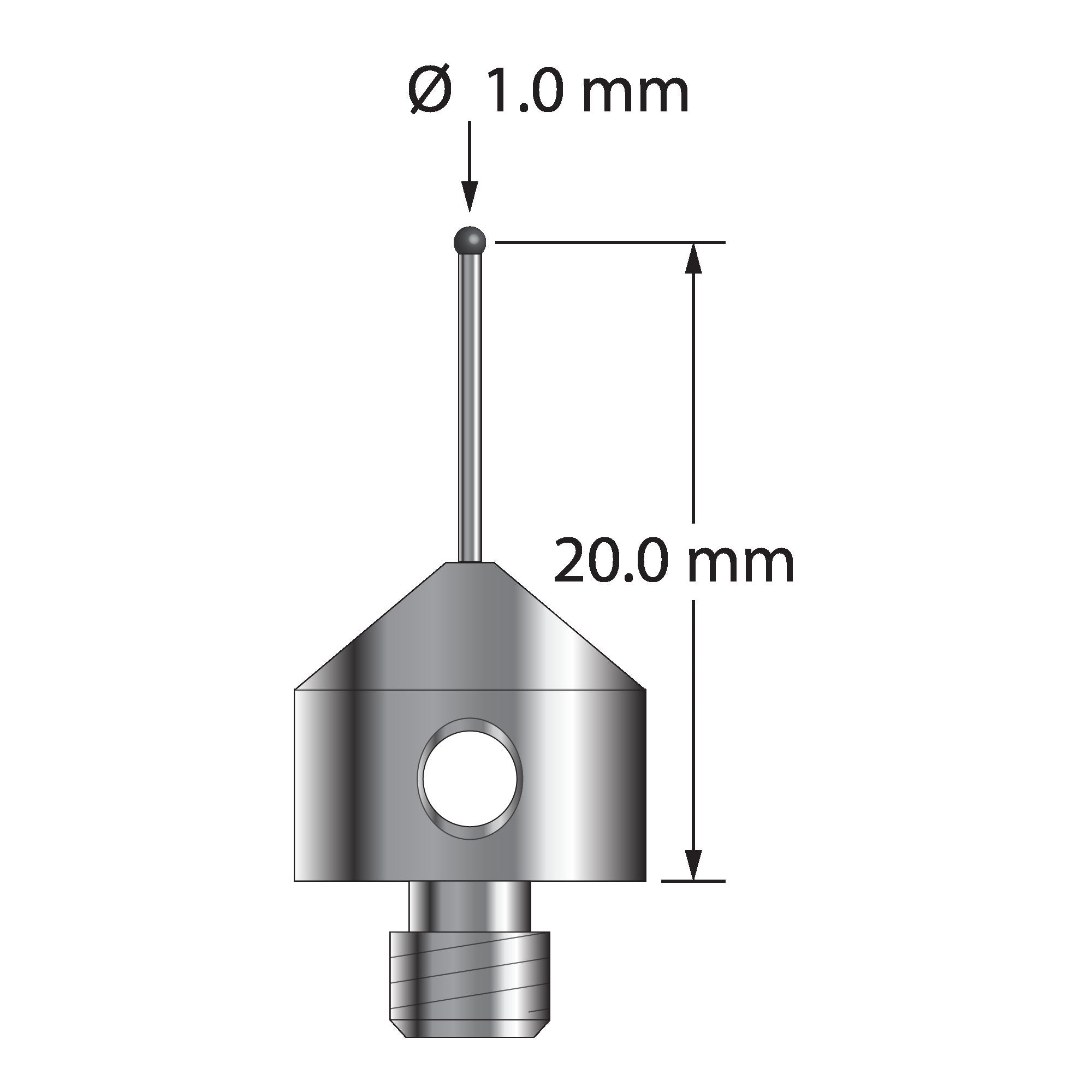

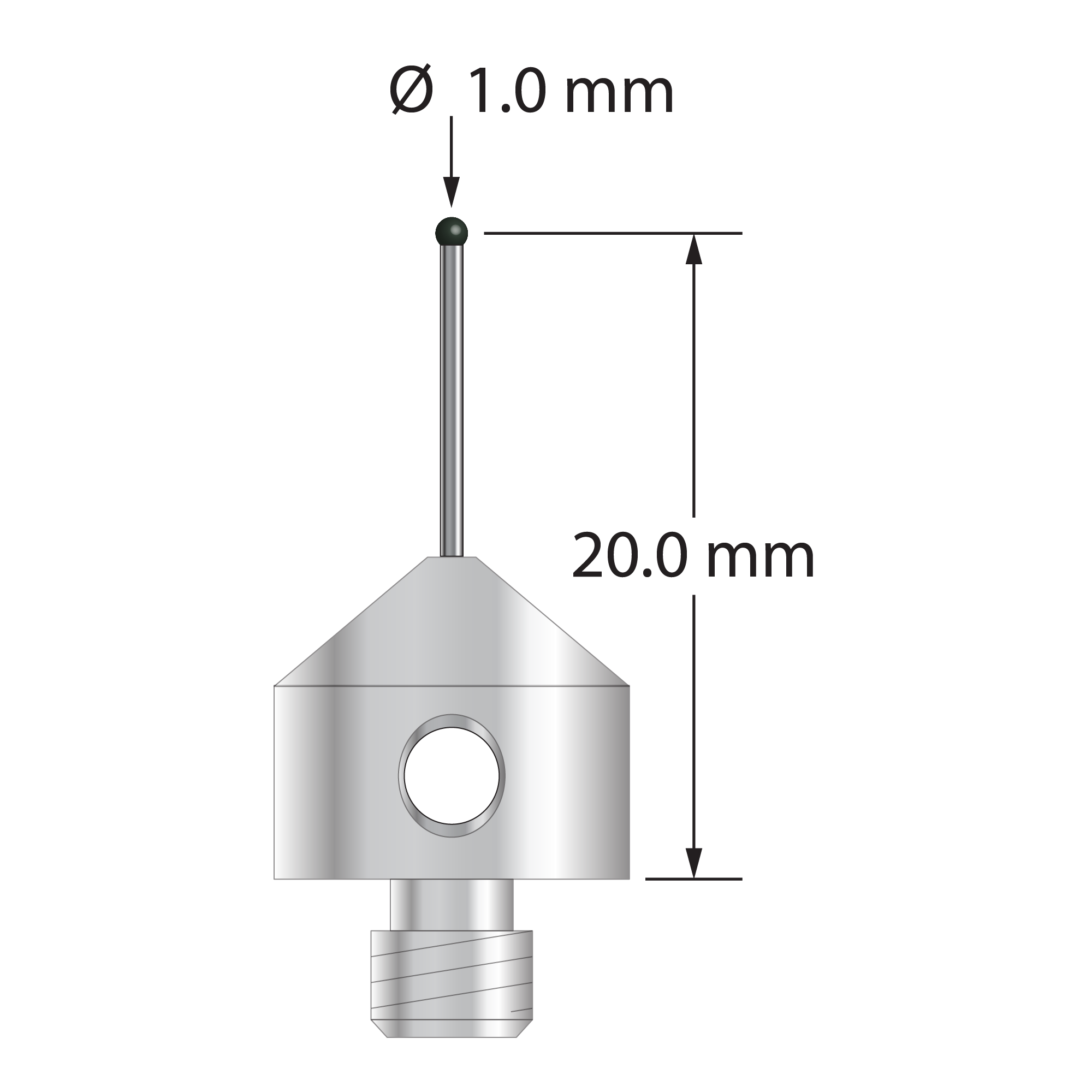

M5 stylus with 1.0 mm diameter silicon nitride ball, 0.7 mm diameter carbide stem, and 11.0 mm diameter x 10.0 mm long stainless steel base. Stylus length to ball center is 20.0 mm. Weight is 5.68 grams.

Dimensions

ball diameter: 1.0

base diameter: 11.0

length 1: 20.5

length 2: 10.5

stem diameter: 0.7

Materials

ball material: Silicon Nitride

base material: Stainless Steel

stem material: Carbide
