Q-Mark Probe Styli: Orders Placed by Noon PT Ship Out Same-Day* | Ultra-Fast Service | Always Guaranteed | Proudly USA Made

AFG-0833-L5

Name: AFG-0833-L5
Brand: Q-Mark Manufacturing Inc.
Price: 85.0 USD
Availability: InStock

$85.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

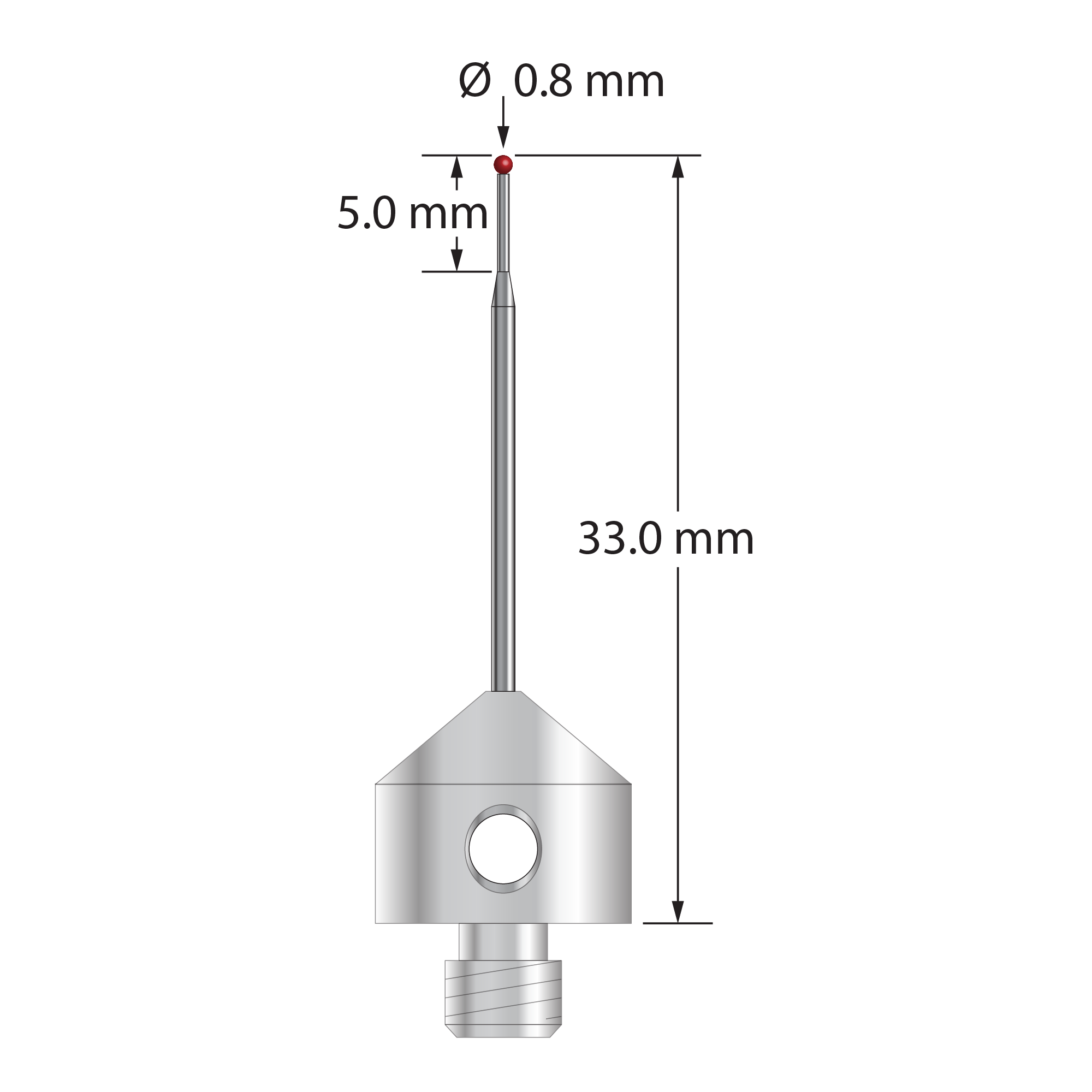

M5 stylus with 0.8 mm diameter ruby ball, tapered carbide stem, and 11.0 mm diameter x 10.0 long stainless steel base. Minor stem diameter is 0.5 mm, major diameter is 1.0 mm. Overall stylus length is 33.0 mm. Stylus weight is 5.60 grams. Compare to Zeiss 626115-0080-033.

Dimensions

ball diameter: 0.8

base diameter: 11.0

length 1: 33.0

length 2: 23.0

length 3: 5.0

stem diameter: 1.0

stem step diameter: 0.5

Materials

ball material: Ruby

base material: Stainless Steel

stem material: Carbide
