AFG-0830-C

$130.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
{% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

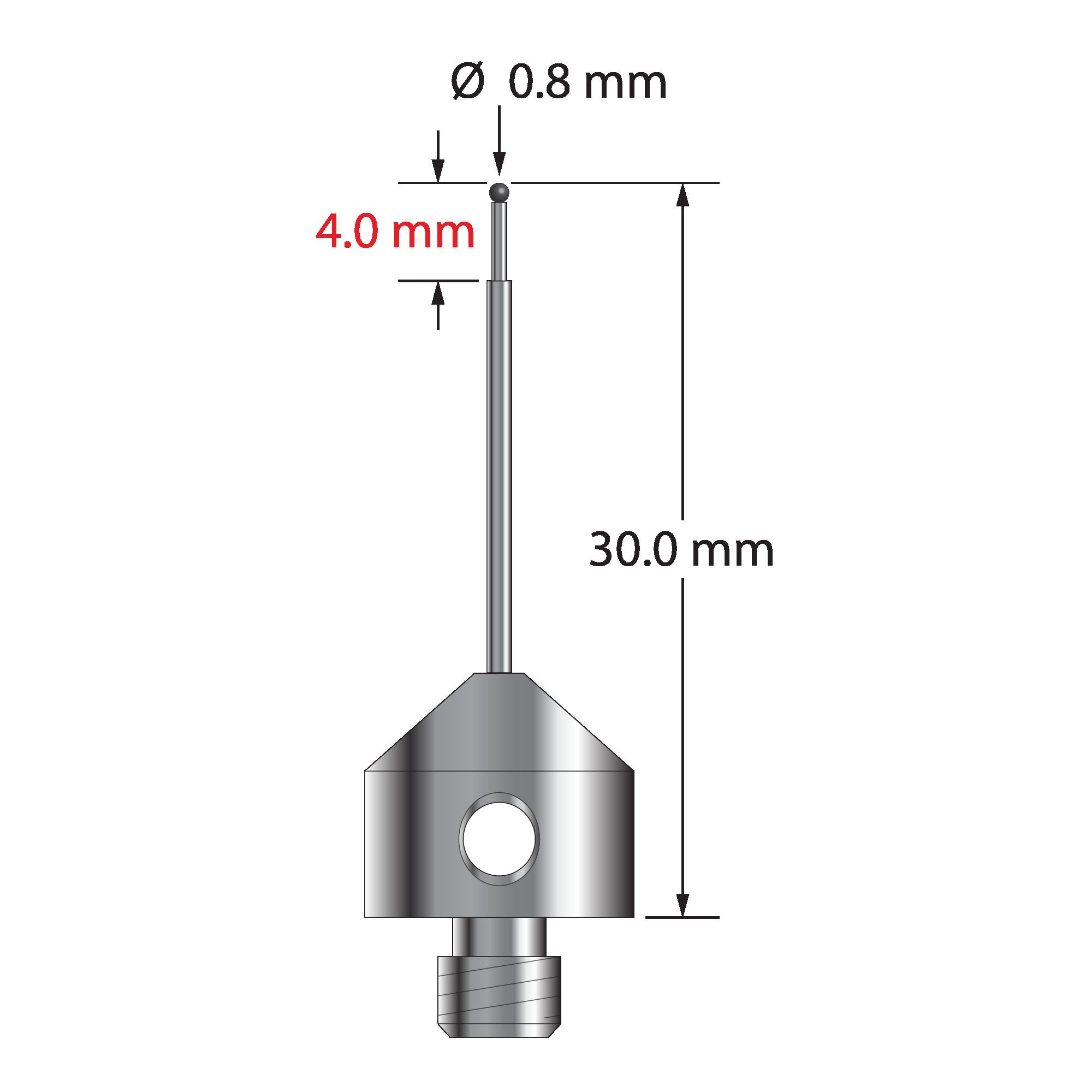

M5 stylus with 0.8 mm diameter carbide ball, stepped carbide stem, and 11.0 mm diameter x 10.0 mm long stainless steel base. Minor stem diameter is 0.6 mm, major diameter is 1.0 mm. Overall stylus length is 30.0 mm. Stylus weight is 5.77 grams.

Dimensions

ball diameter: 0.8
base diameter: 11.0
length 1: 30.0
length 2: 20.0
length 3: 4.0
stem diameter: 1.0
stem step diameter: 0.6

Materials

ball material: Carbide
base material: Stainless Steel
stem material: Carbide
