AFG-0540-R

Name: AFG-0540-R
Brand: Q-Mark Manufacturing Inc.
Price: 125.0 USD
Availability: InStock

$125.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

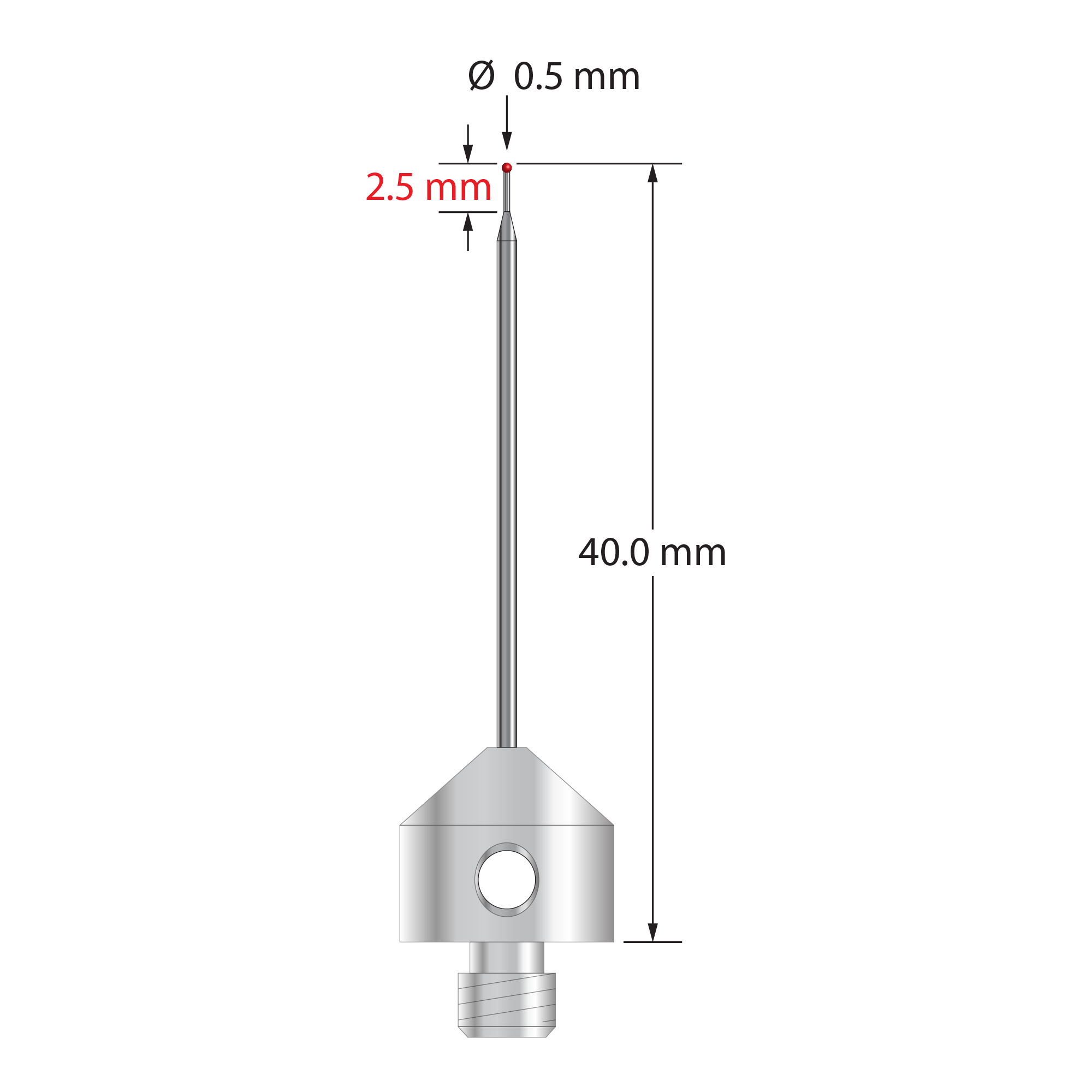

M5 stylus with 0.5 mm diameter ruby ball, tapered carbide stem, and 11.0 mm diameter x 10.0 long stainless steel base. Minor stem diameter is 0.3 mm, major diameter is 1.0 mm. Overall stylus length is 40.0 mm. Stylus weight is 5.90 grams.

Dimensions

ball diameter: 0.5

base diameter: 11.0

length 1: 40.0

length 2: 30.0

length 3: 2.5

stem diameter: 1.0

stem step diameter: 0.3

Materials

ball material: Ruby

base material: Stainless Steel

stem material: Carbide
