AFG-0375-03

Name: AFG-0375-03
Brand: Q-Mark Manufacturing Inc.
Price: 130.0 USD
Availability: InStock

$130.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

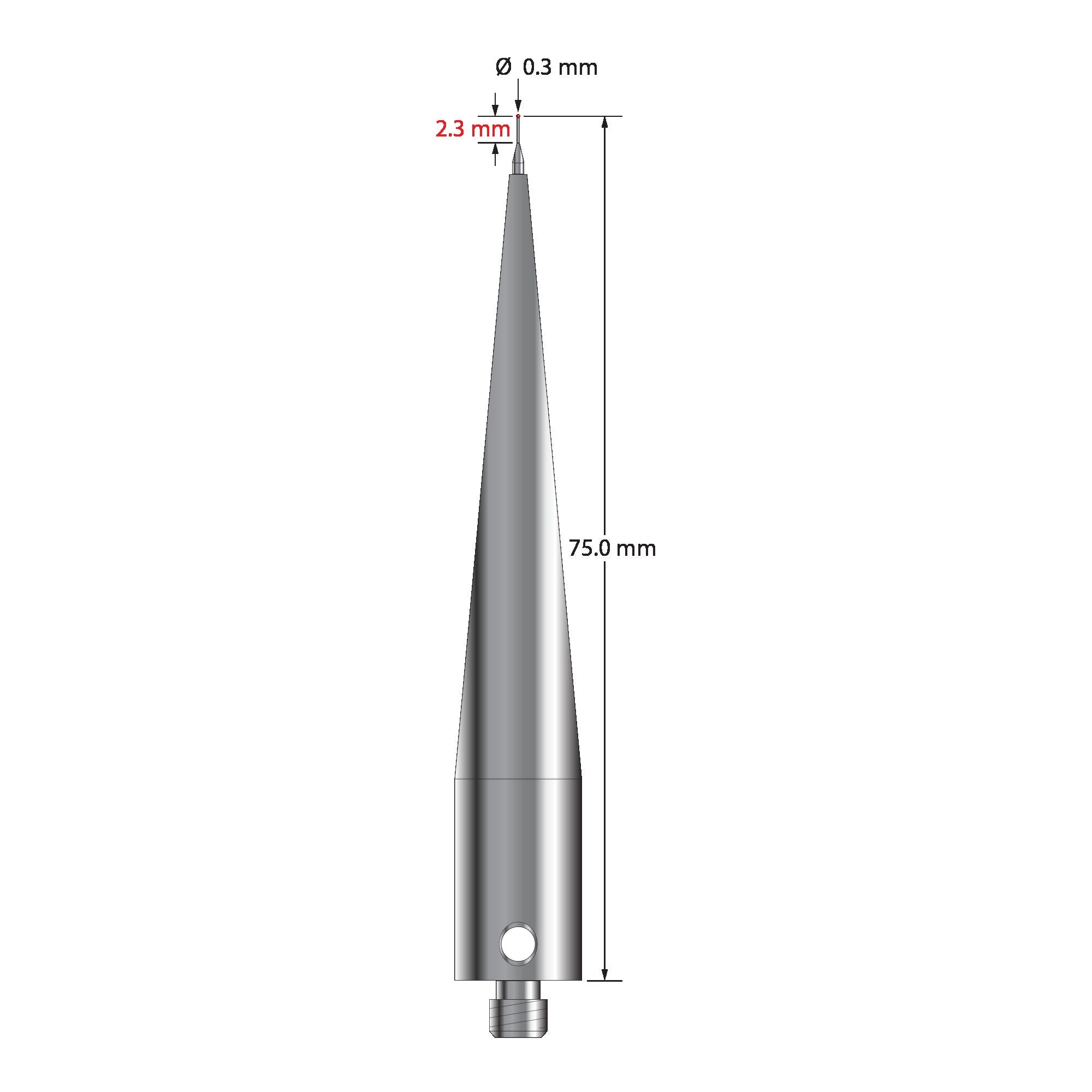

M5 stylus with 0.3 mm diameter ruby ball, 0.2 mm diameter carbide stem, and 11.0 mm diameter x 70.0 mm long tapered stainless steel base. Stylus length to ball center is 75.0 mm. Stylus weight is 23.65 grams. Compare to Renishaw A-5003-5240.

Dimensions

ball diameter: 0.3

base diameter: 11.0

length 1: 75.0

length 2: 5.0

length 3: 2.3

stem step diameter: 0.2

Materials

ball material: Ruby

base material: Stainless Steel

stem material: Carbide
