AFG-0330-03

$90.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
{% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

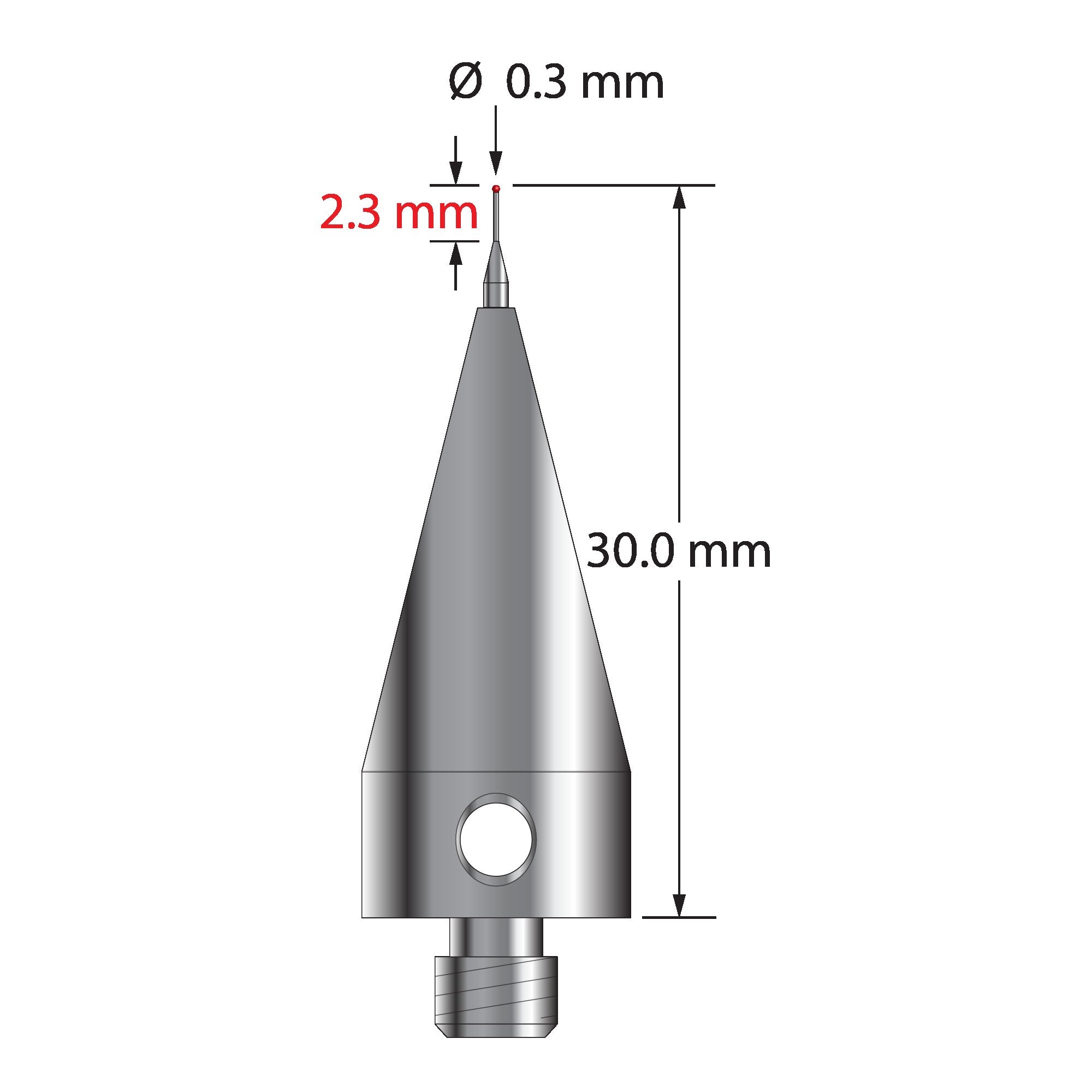

M5 stylus with 0.3 mm diameter ruby ball, tapered carbide stem, and 11.0 mm diameter x 25.0 mm long tapered stainless steel base. Minor stem diameter is 0.2 mm, major stem diameter is 1.0 mm. Stylus length to ball center is 30.0 mm. Stylus weight is 9.95 grams. Compare to Renishaw A-5003-5211.

Dimensions

ball diameter: 0.3
base diameter: 11.0
length 1: 30.0
length 2: 3.0
length 3: 2.3
stem diameter: 1.0
stem step diameter: 0.2

Materials

ball material: Ruby
base material: Stainless Steel
stem material: Carbide
