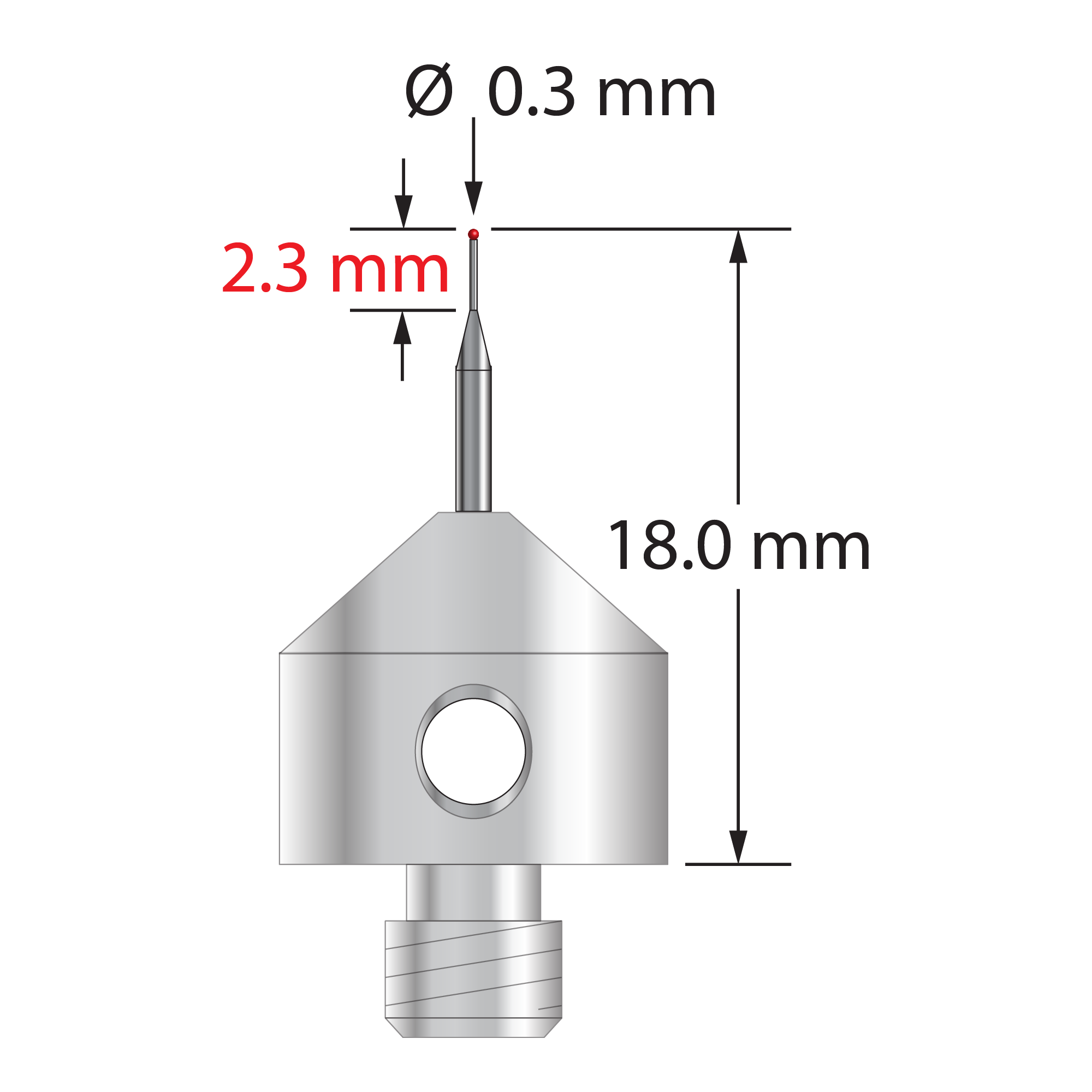

M5 stylus with 0.3 mm ruby ball, tapered carbide stem, and 11.0 mm diameter x 10.0 mm long stainless steel base. Minor stem diameter is 0.2 mm. Major stem diameter is 1.0 mm. Overall stylus length is 18.0 mm. Stylus weight is 5.58 grams.

AFG-0318-R

Name: AFG-0318-R
Brand: Q-Mark Manufacturing Inc.
Price: 95.0 USD
Availability: InStock

$95.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

M5 stylus with 0.3 mm ruby ball, tapered carbide stem, and 11.0 mm diameter x 10.0 mm long stainless steel base. Minor stem diameter is 0.2 mm. Major stem diameter is 1.0 mm. Overall stylus length is 18.0 mm. Stylus weight is 5.58 grams.

Dimensions

ball diameter: 0.3

base diameter: 11.0

length 1: 18.0

length 2: 8.0

length 3: 2.5

stem diameter: 1.0

stem first step diameter: 0.2

stem step diameter: 0.2

Materials

ball material: Ruby

base material: Stainless Steel

stem material: Carbide
