TM4-2031-BL
TM4-2031-BL

TM4-2031-BL

$75.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
 {% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

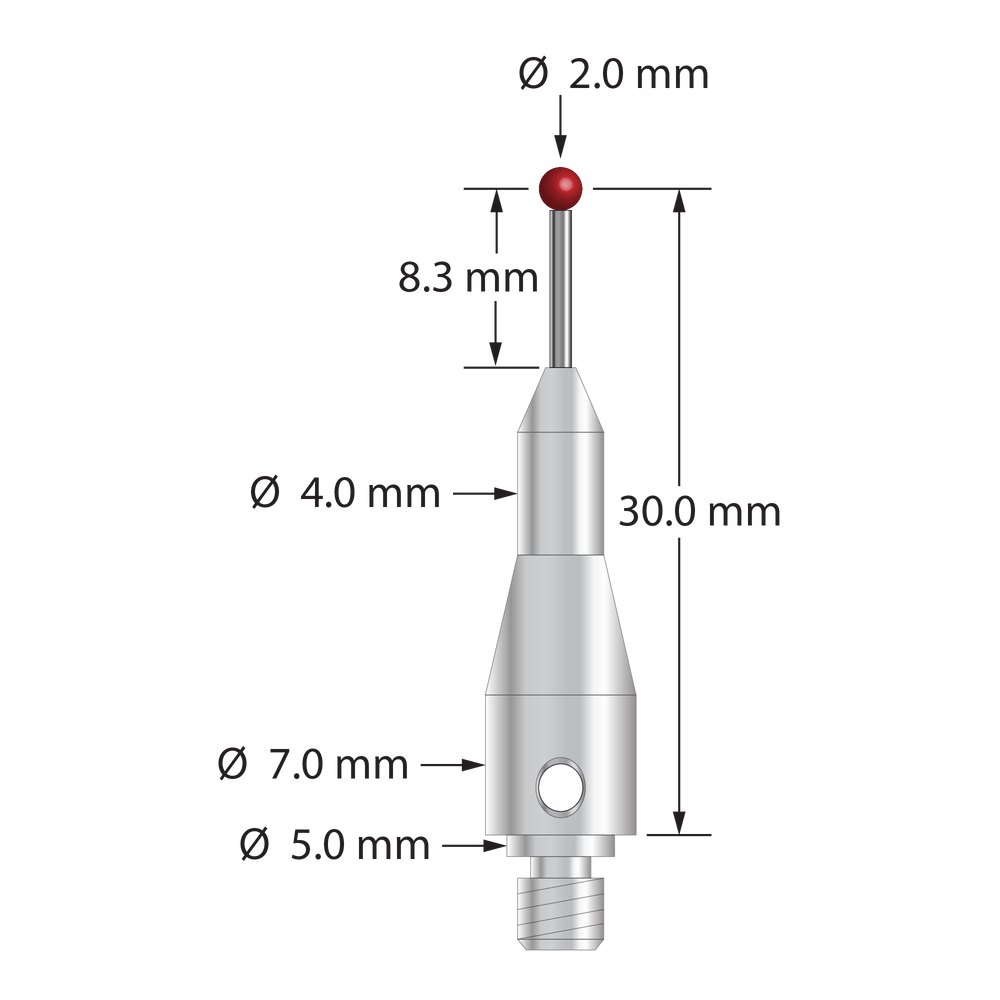

M4 stylus for Blum probe with 2.0 mm diameter ruby ball, 1.0 mm diameter carbide shaft, and 7.0 mm diameter stainless steel base.  Stylus length to ball center is 30.0 mm.  Compare to Blum P03.8000-022.030.02. (TC52/53/54/76)

Dimensions

ball diameter: 2.0
base diameter: 7.0
body diameter: 4.0
length 1: 31.0
length 2: 9.3
stem diameter: 1.0

Materials

ball material: Ruby
base material: Stainless Steel
body material: Stainless Steel
stem material: Carbide
