The Tool You Know But Can't Describe
You're a precision manufacturer. You work with incredible machines, hold tolerances that would make a human hair look like a tree trunk, and produce parts that are essential in modern industry. You know exactly what a probe stylus is. But when someone outside the industry asks you what it is, do you find yourself fumbling for the right words? You’re not alone.
It’s a niche product for a niche industry, and for something so critical, it can be comically difficult (even for us!) to explain what it is, what it does, and why it’s so important.
HOW A PROBE STYLUS ACTUALLY WORKS

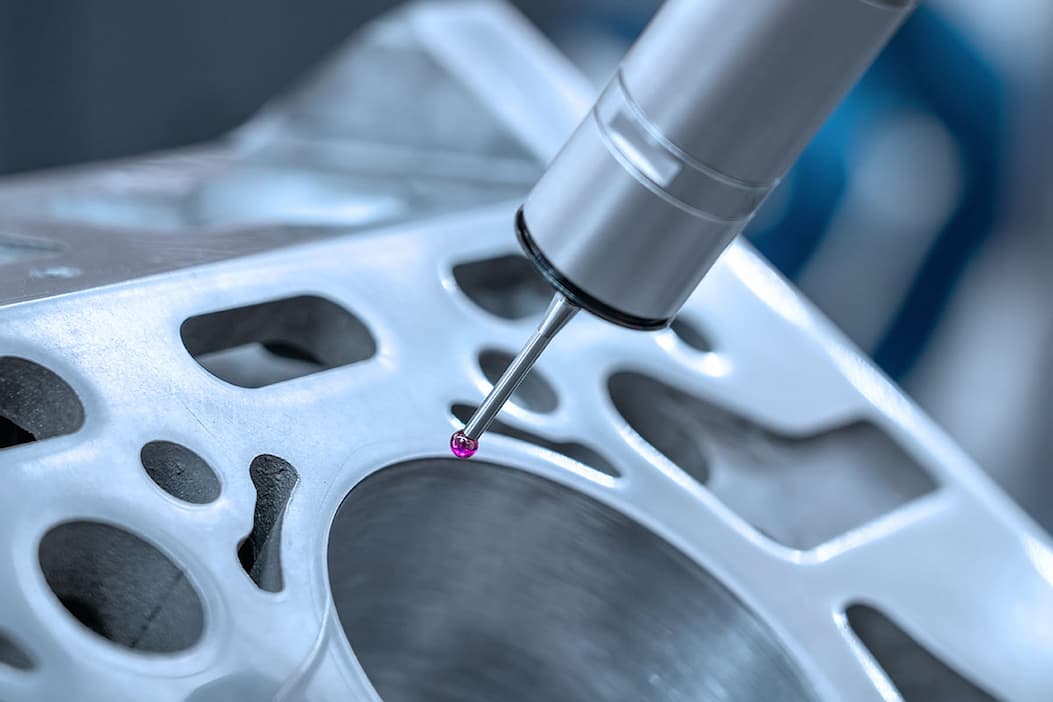

At its simplest, a probe stylus is the "finger" of a Coordinate Measuring Machine (CMM). It's the precision tip that touches the part, gathering data points that are then used to create a 3D map. This map tells you if the part is in spec, if your machine is performing correctly, and ultimately, if your manufacturing process is sound.
A probe stylus itself doesn't use electricity. It's a passive component that's attached to an active probing system. The magic happens when the stylus touches the part. The CMM's probe head contains a series of tiny sensors, often piezoelectric crystals, or strain gauges. When the stylus makes contact with the part, the force of the touch causes a minute deflection in the probe head. This deflection is precisely measured by the sensors, which generate an electrical signal. This signal is then sent to the CMM's computer, which uses it to register the exact coordinates of that point in 3D space. By taking thousands of these points, the CMM can create a highly accurate digital model of the part, allowing for detailed inspection and analysis.
A BRIEF HISTORY
The CMM itself traces its roots back to the 1950s, developed for the aerospace industry's demanding quality control requirements. Initially, these machines used steel balls and cones for styli. But as manufacturing tolerances tightened, the need for more precise, repeatable, and versatile probing systems grew.
This is when the probe stylus grew in importance. Engineers began experimenting with different materials and designs to improve accuracy, reduce wear, and access difficult-to-reach features. The invention of the touch-trigger probe and later, the scanning probe, revolutionized metrology, turning what was once a slow, manual process into a fast, automated one. And at the end of it all was the humble stylus, doing the hard work of making contact and gathering the data.
INDUSTRY APPLICATIONS
So where does this all come into play? Think about the parts that make up an aircraft engine, a medical implant, a toy building brick (above), computers, or the gears in an automobile transmission. These are components where failure isn't an option. The probe stylus is used in every step of their creation, from first article inspection to verifying the final product. Probe styli are the unsung heroes of quality control, quietly ensuring the performance of the products we rely on every day.
