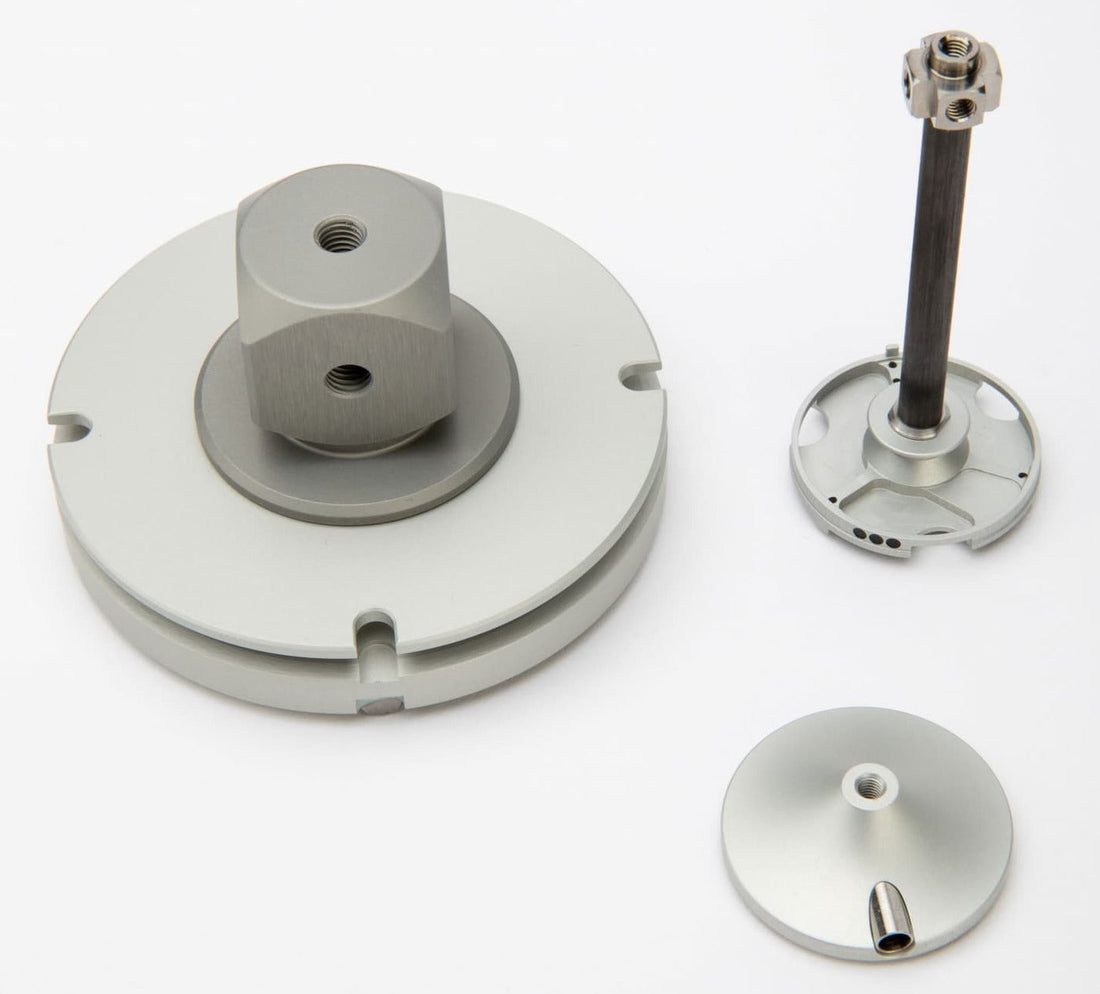

Quick ID: Which Adapter Plate is Which?
Get the right one, every time.
We know that keeping your equipment running is a priority. Nothing slows down a project like receiving a replacement product that won’t work.
Sometimes this occurs with XXT adapter plates. While they look similar at a glance, the secret to identifying them is in the position of the carbide spheres on the top surface.
Here’s a quick guide that can help you identify the right one for you.
The Sphere Test
- To properly identify your plate, look at the arrangement of the carbide spheres on the surface where the plate attaches to the XXT probe head.
- TL1 XXT-ID Adapter Plate: Note the side-by-side, stacked position of the two carbide spheres at the 12 o'clock position. This plate fits TL1 probe heads.
- TL3 XXT-ID Adapter Plate: Note the space between the two carbide spheres at the 12 o'clock position. This plate fits TL3 probe heads.
Using the incorrect plate can lead to error messages and delays.
Pro Tip: If you’re still unsure, snap a quick photo of your current plate and reply to this email. Our team will identify it for you right away.
Need a Replacement?
Now that you’ve identified your plate, you can shop adapter plates here:
