Q-Mark Machine Tool Probe Stylus TM4-6053-C

Product Spotlight:
Machine Tool Probe Stylus TM4-6053-C

If you’ve purchased a new CNC machine tool lately, chances are it uses a touch probe. On-machine probes can really increase machine tool productivity. They can quickly identify parts, align them to the machine tool axes, and even take mid-cycle measurements.

Most machine tool touch probes use a stylus with a ceramic stem. Ceramic is lightweight, rigid, and impervious to most coolants. Ceramic also serves as a “mechanical fuse”. If the stylus unexpectedly collides with the workpiece or the machine, the ceramic will break, helping to prevent further damage.

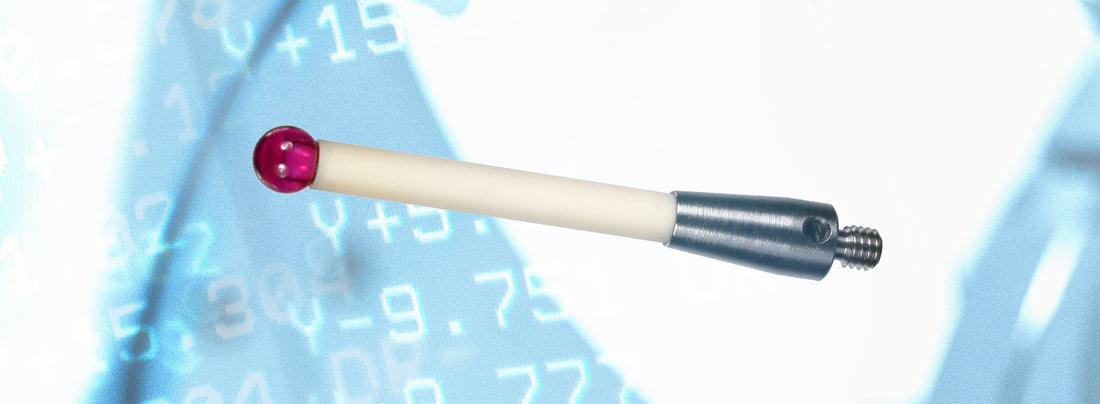

Q-Mark MACHINE TOOL PROBE STYLUS TM4-6053-C
The stylus shown above is our TM4-6053-C. It’s our most popular machine tool stylus. 50.0 mm long from its stainless steel base to the center of its 6.0 mm diameter ruby ball, it uses a 4.5 mm diameter ceramic stem. Altogether it weighs less than 5 grams. They’re always available for overnight delivery.
Whatever brand of touch probe is on your CNC machine, we have ceramic styli for it. Order all our Machine Tool Styli below.
Filed in: ceramic, machine tool, probe styli, q-mark, qmark
Previous article Celebrating 30 Years of Q-Mark! Since 1992
Next article Q-Mark Manufacturing, Inc. Announces Distributor Partnership With MStek Technology Ltd.
Click or scroll to zoom
Tap or pinch to zoom
M4 stylus with 6.0 mm diameter ruby ball, 4.5 mm diameter ceramic stem, and 7.0 mm diameter x 15.0 mm long stainless steel base. Stylus length to ball center is 50.0 mm. Stylus weight is 4.68 grams. Compare to Renishaw A-5000-3709.
M4 stylus with 6.0 mm diameter ruby ball, 4.5 mm diameter ceramic stem, and 7.0 mm diameter x 15.0 mm long stainless steel base. Stylus length to ball center is 50.0 mm. Stylus weight is 4.68 grams. Compare to Renishaw A-5000-3709.

TM4-6053-C

$90.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
 {% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}
View full details

Dimensions

ball diameter: 6.0
base diameter: 7.0
length 1: 53.0
length 2: 38.0
stem diameter: 4.5

Materials

ball material: Ruby
base material: Stainless Steel
stem material: Ceramic

View All Our Machine Tool Styli

  • TM4-1030.5-BL

    TM4-1030.5-BL

    $85.00

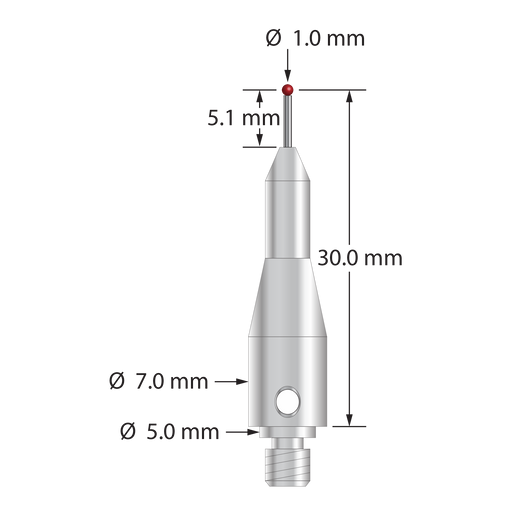

    M4 stylus for Blum probe with 1.0 mm diameter ruby ball, 0.7 mm diameter carbide stem, and stainless steel body. Stylus length to ball center is 3...

    View full details
  • TM4-1050.5-C-BL

    TM4-1050.5-C-BL

    $185.00

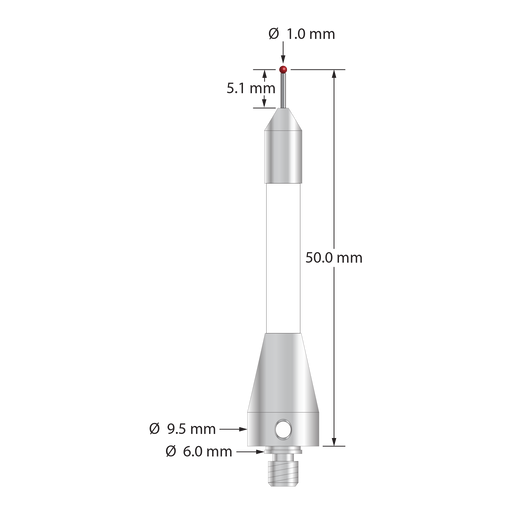

    M4 stylus for Blum probe with 1.0 mm diameter ruby ball, 0.7 mm diameter carbide stem, 4.5 mm diameter ceramic body, and stainless steel fittings. ...

    View full details
  • TM4-2031-BL

    TM4-2031-BL

    $75.00

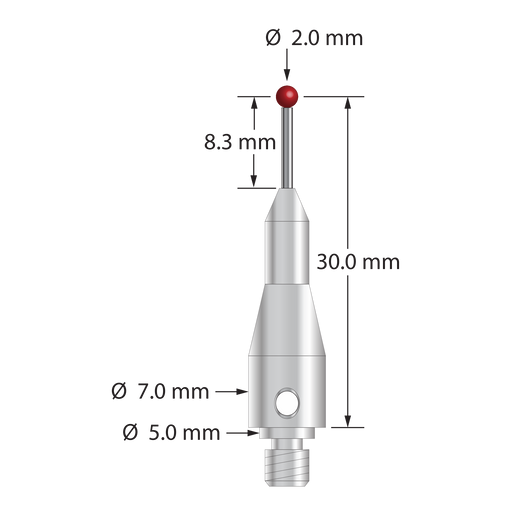

    M4 stylus for Blum probe. 2.0 mm diameter ruby ball, 1.0 mm diameter carbide shaft, and stainless steel body. Stylus length to ball center is 30....

    View full details
  • TM4-2051-C-BL

    TM4-2051-C-BL

    $185.00

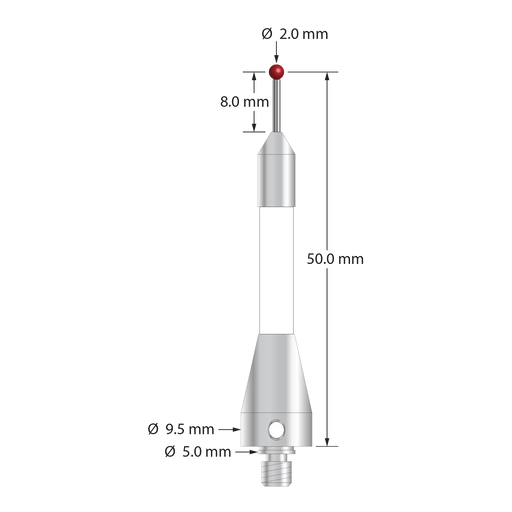

    M4 stylus for Blum probe with 2.0 mm diameter ruby ball, 1.0 mm diameter carbide shaft, 4.5 mm diameter ceramic shaft, and stainless steel fittings...

    View full details
  • View all

    Machine Tool Styli
