XXT-STR-1020

Name: XXT-STR-1020
Brand: Q-Mark Manufacturing Inc.
Price: 350.0 USD
Availability: InStock

$350.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

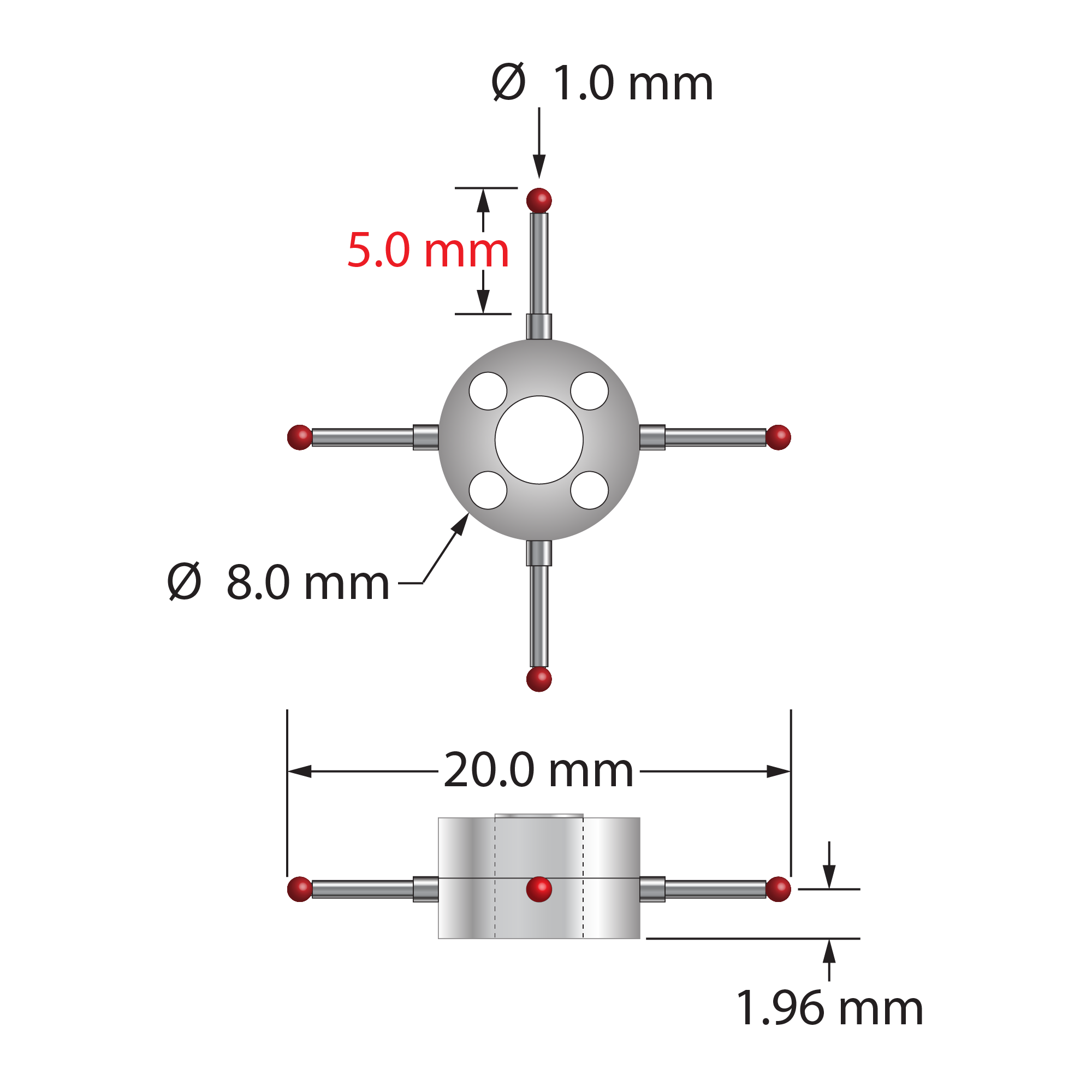

Four-way star stylus with 1.0 mm diameter ruby balls, carbide stems, and two-piece clamping titanium hub. Major stem diameter is 1.0 mm, minor diameter is 0.8 mm. Stylus weight is 1.10 grams.

Q-Mark can repair damaged styli for a lot less than the cost of a new star stylus. Please email sales@cmms.com for more information.

Dimensions

ball diameter: 1.0

body diameter: 8.0

length 1: 20.0

length 2: 6.0

length 3: 5.0

stem diameter: 1.0

stem step diameter: 0.8

Materials

ball material: Ruby

body material: Titanium

stem material: Carbide
