XXT-3030-L

$150.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
{% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

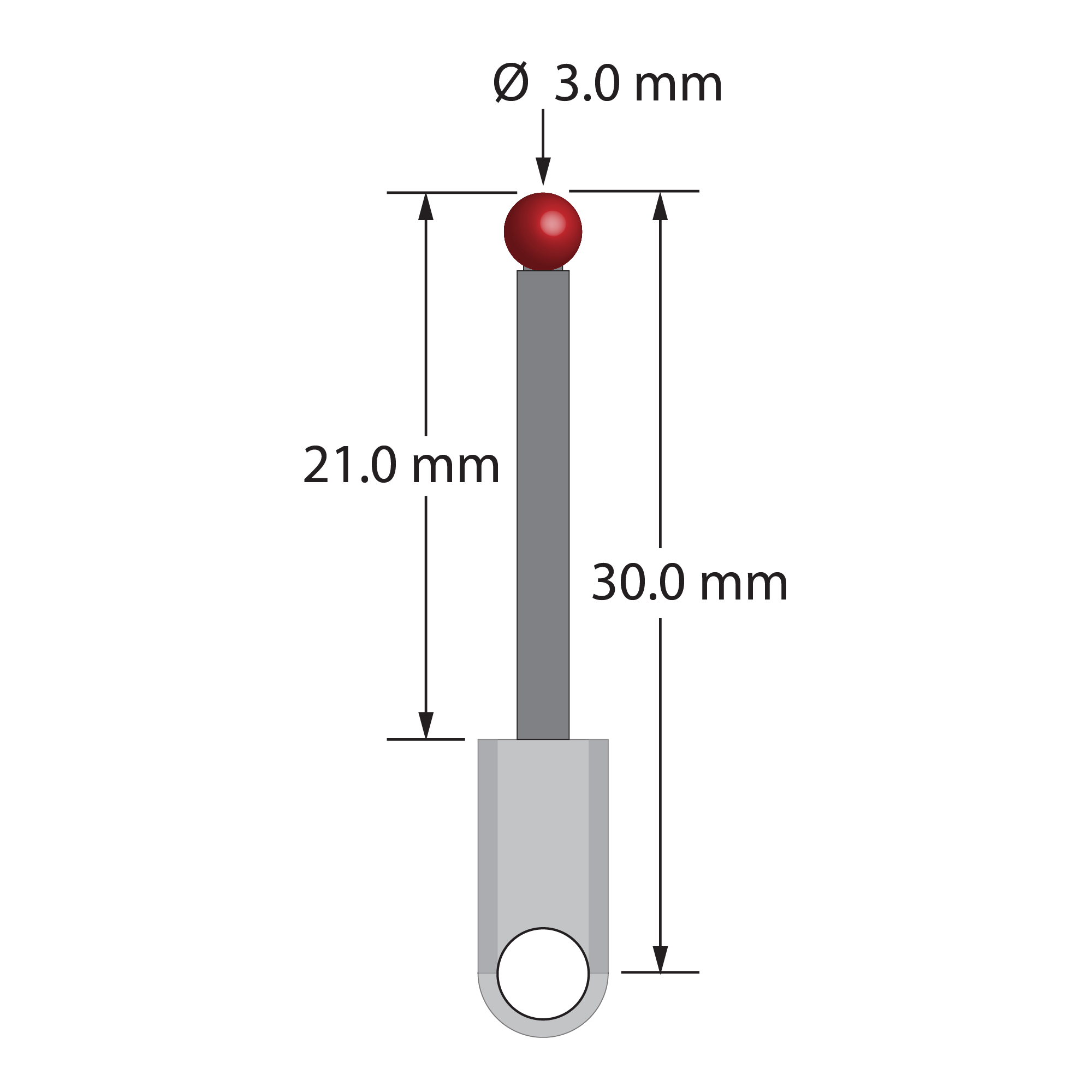

M3 XXT stylus for 1/4 star probe or L-shaped probe. 3.0 mm diameter ruby ball with titanium base and 2.0 mm diameter Therm-X carbon fiber stem.  A clamping screw or clamping stylus is placed through the 3.5 mm hole in the titanium base.  Length is 30.0 mm.  Weight is 0.74 grams.  Compare to Zeiss 626103-0302-030.

Dimensions

ball diameter: 3.0
length 1: 30.0
length 2: 21.0
stem diameter: 2.0

Materials

ball material: Ruby
body material: Titanium
stem material: Carbon Fiber
