TM5-2035-B

$230.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
{% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

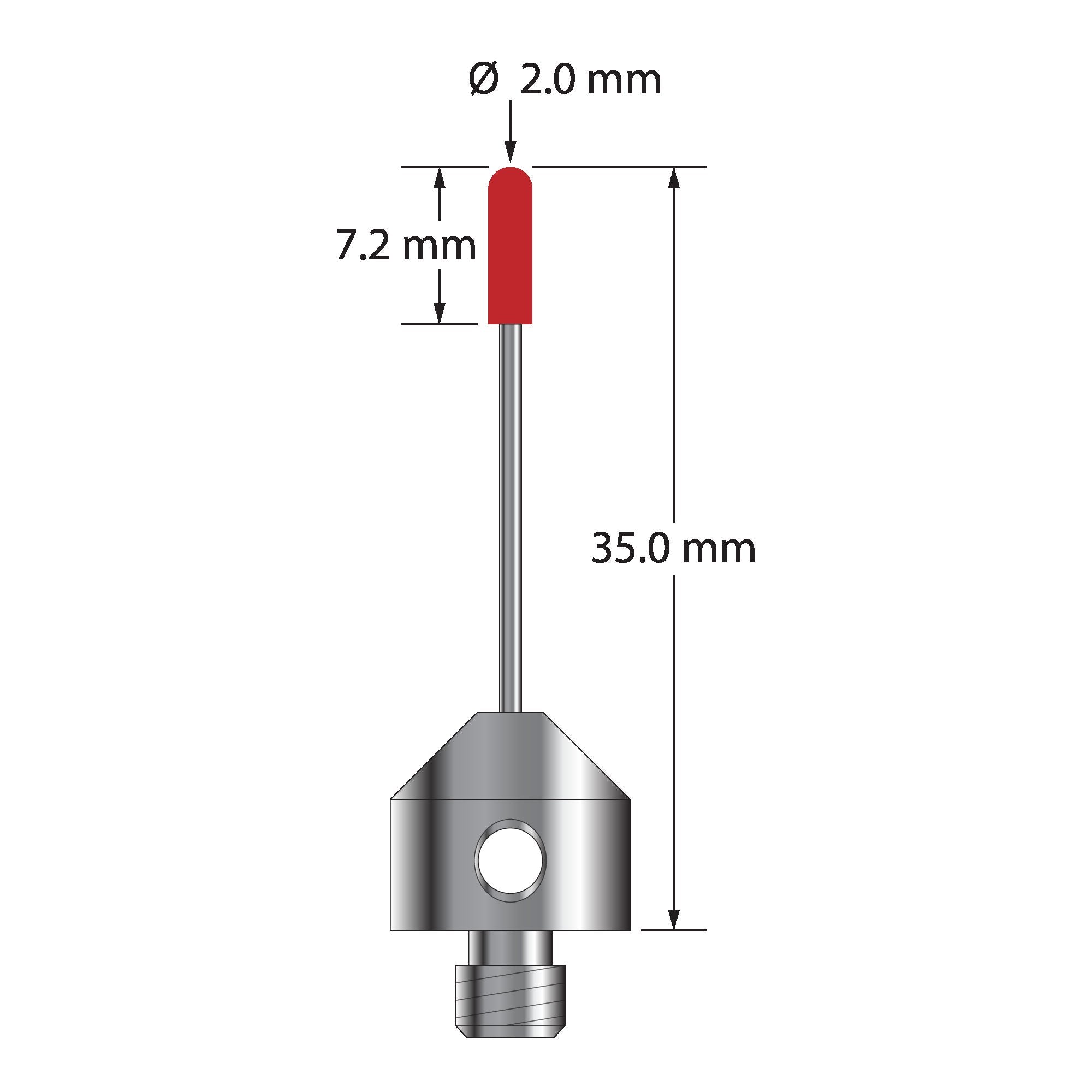

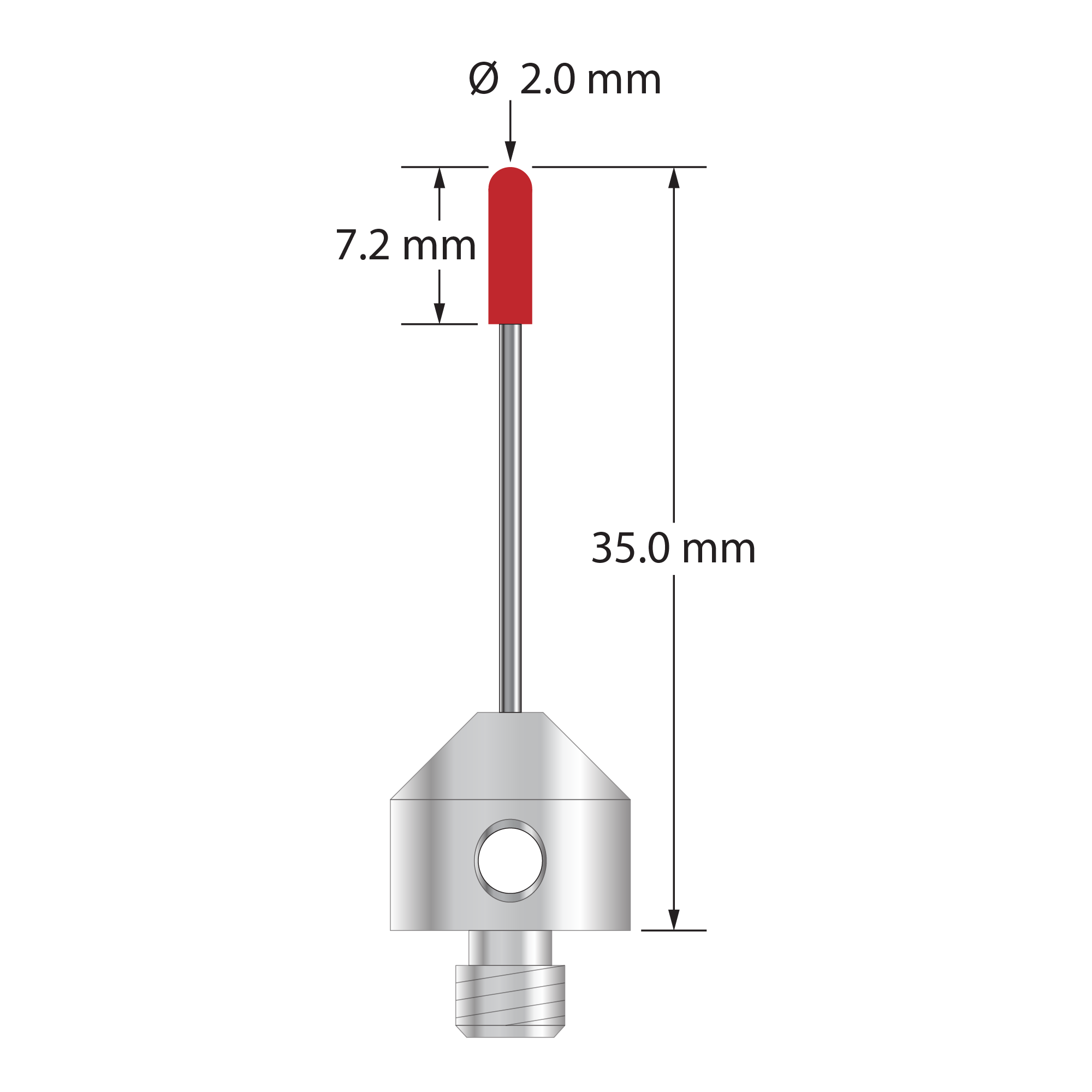

M5 stylus with 2.0 mm diameter ruby cylinder, 1.0 mm diameter carbide stem, and 11.0 mm diameter x 10.0 mm long titanium base.  Overall stylus length is 30.0 mm.  Stylus weight is 3.52 grams.

Cylinder styli are used for edge probing, for example, the edges of stampings, or sheet metal parts.  They are not suitable for high accuracy work because the spherical form of a cylinder is not as precise as a sphere.  Please contact us with any questions about calibrating or using cylinder styli.

Dimensions

ball diameter: 2.0
base diameter: 11.0
length 1: 30.0
length 2: 20.0
length 3: 7.2
stem diameter: 1.0

Materials

ball material: Ruby
base material: Titanium
stem material: Carbide
