TM5-2020-B

$225.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
{% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

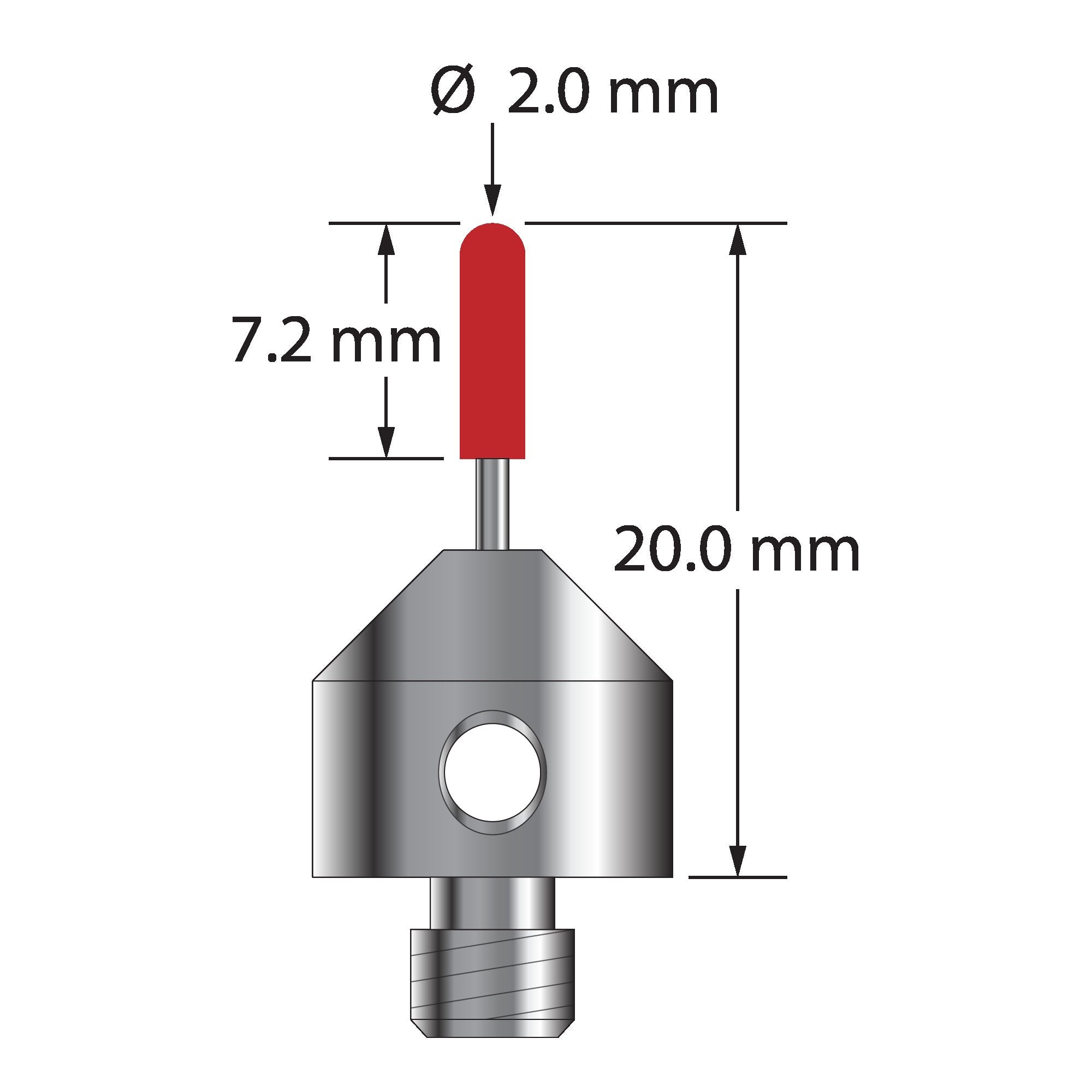

M5 stylus with 2.0 mm diameter ruby cylinder, 1.0 mm diameter carbide stem, and 11.0 mm diameter x 10.0 mm long titanium base.  Overall stylus length is 20.0 mm.  Stylus weight is 3.35 grams.  Compare to Zeiss 626115-0203-020.

Cylinder styli are used for edge probing, for example, the edges of stampings, or sheet metal parts.  They are not suitable for high accuracy work because the spherical form of a cylinder is not as precise as a sphere.  Please contact us with any questions about calibrating or using cylinder styli.

Dimensions

ball diameter: 2.0
base diameter: 11.0
length 1: 20.0
length 2: 10.0
length 3: 7.2
stem diameter: 1.0

Materials

ball material: Ruby
base material: Titanium
stem material: Carbide
