TM3-1511-CYL

$17.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
{% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

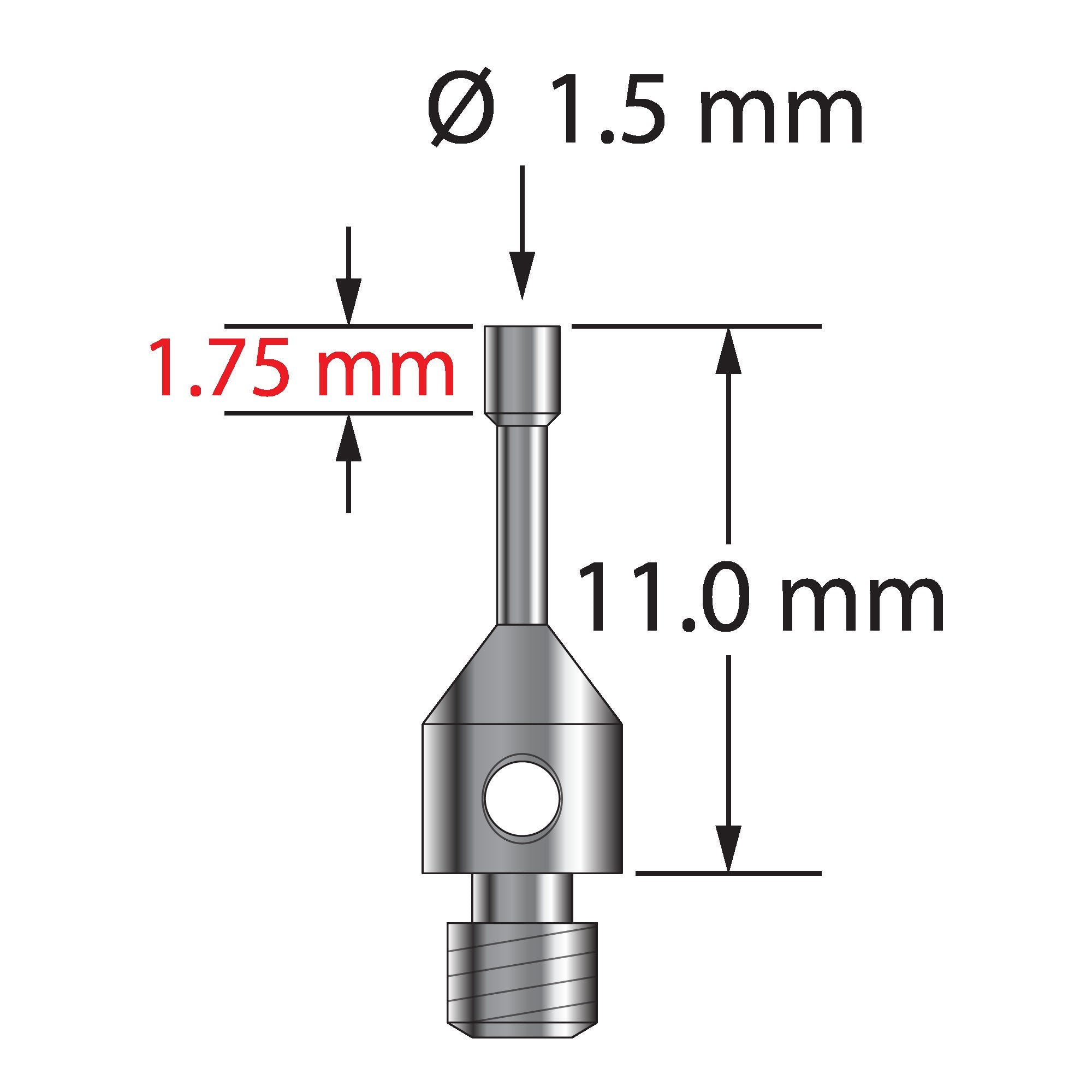

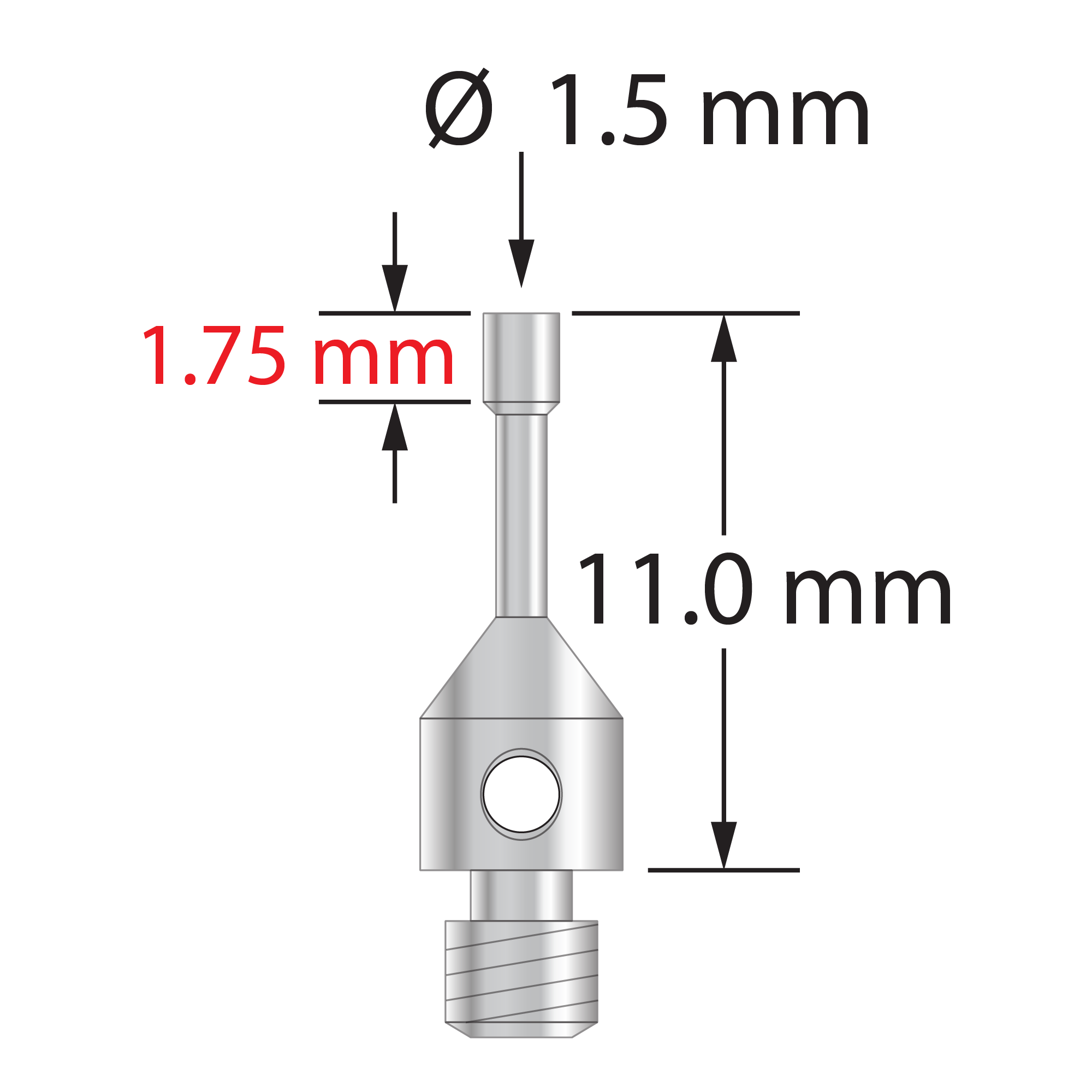

M3 cylinder stylus with 1.5 mm diameter x 1.75 mm long stainless steel cylinder and stainless steel stem and base. Overall length is 11.0 mm. Stylus weight is 0.46 gram. Compare to Renishaw A-5004-0254, Zeiss 602030-8097-000, and Mitutoyo K651153.

Cylinder styli are used for edge probing, like those found on stampings or sheet metal parts. They are not recommended for high accuracy work because their form is less precise than a sphere. Please contact us with any questions about calibrating or using cylinder styli.

Dimensions

ball diameter: 1.5
base diameter: 4.0
length 1: 11.0
length 2: 1.75

Materials

ball material: Stainless Steel
base material: Stainless Steel
stem material: Stainless Steel
