TM3-1016-B-TX

$200.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
{% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

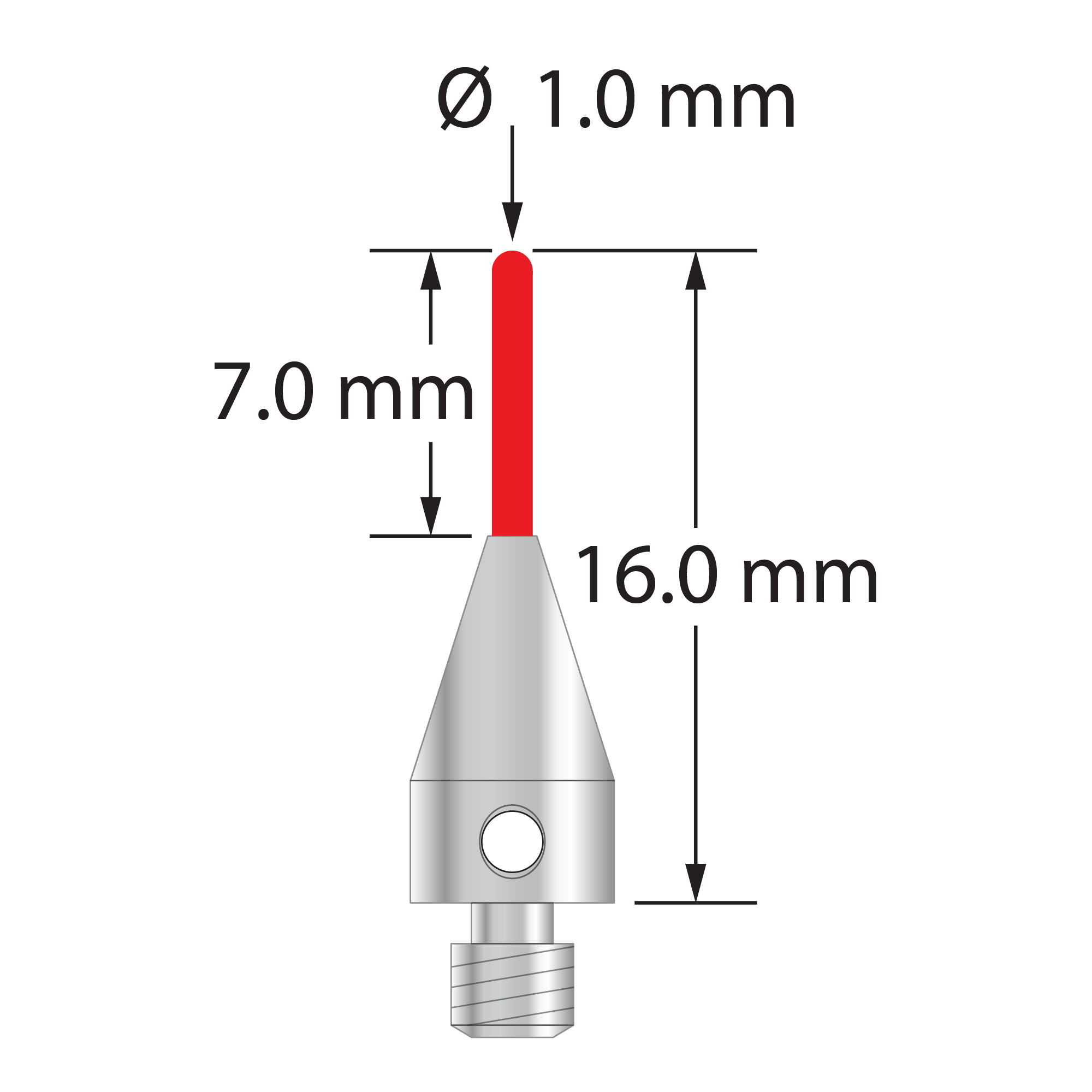

M3 stylus with 1.0 mm diameter ruby cylinder and 5.0 mm diameter x 9.0 mm long titanium base. Overall stylus length is 16.0 mm. Stylus weight is 0.53 gram. Compare to Zeiss 626113-0100-016. Cylinder styli are used for probing narrow edges, like those found on stampings and sheet metal. They are not suitable for high accuracy work because the form of a cylinder is not as precise as a sphere. Please contact us with any questions about calibrating or using cylinder styli.

Dimensions

ball diameter: 1.0
base diameter: 5.0
length 1: 16.0
length 2: 7.0
stem diameter: 1.0

Materials

ball material: Ruby
base material: Titanium
stem material: Ruby
