Q-Mark Probe Styli: Orders Placed by Noon PT Ship Out Same-Day* | Ultra-Fast Service | Always Guaranteed | Proudly USA Made

TM3-0822

Name: TM3-0822
Brand: Q-Mark Manufacturing Inc.
Price: 37.0 USD
Availability: InStock

$37.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

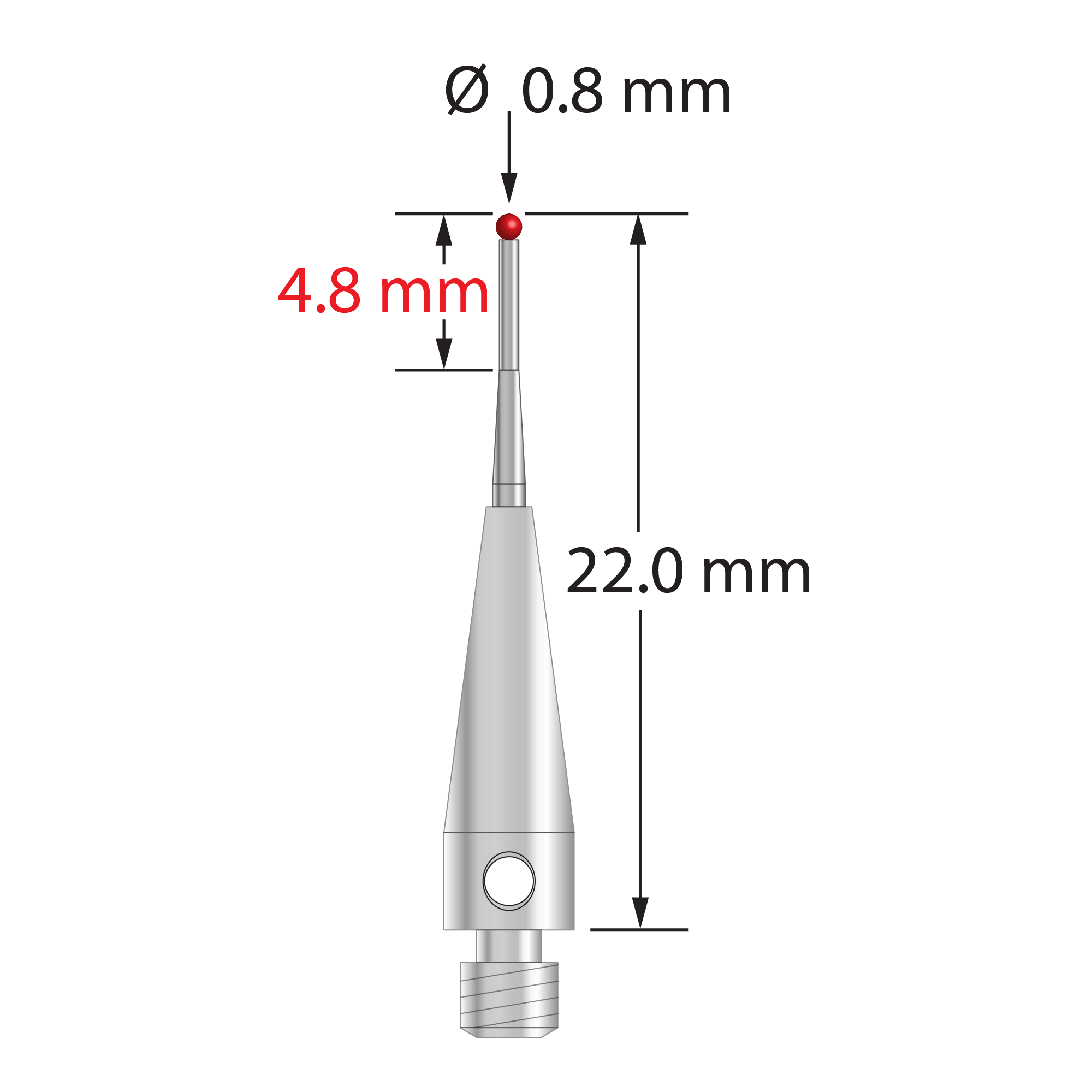

M3 stylus with 0.8 mm diameter ruby ball, tapered carbide stem, and 4.0 mm diameter x 13.0 mm long stainless steel base. Minor stem diameter is 0.6 mm, major diameter is 1.0 mm. Overall stylus length is 22.0 mm. Stylus weight is 0.91 gram. Compare to Zeiss 602030-8117-000, Mitutoyo K651103, and Renishaw A-5555-0269.

Dimensions

ball diameter: 0.8

base diameter: 4.0

length 1: 22.0

length 2: 9.0

length 3: 4.8

stem diameter: 1.0

stem step diameter: 0.6

Materials

ball material: Ruby

base material: Stainless Steel

stem material: Carbide
