TM3-0319-C
TM3-0319-C

TM3-0319-C

$135.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
 {% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

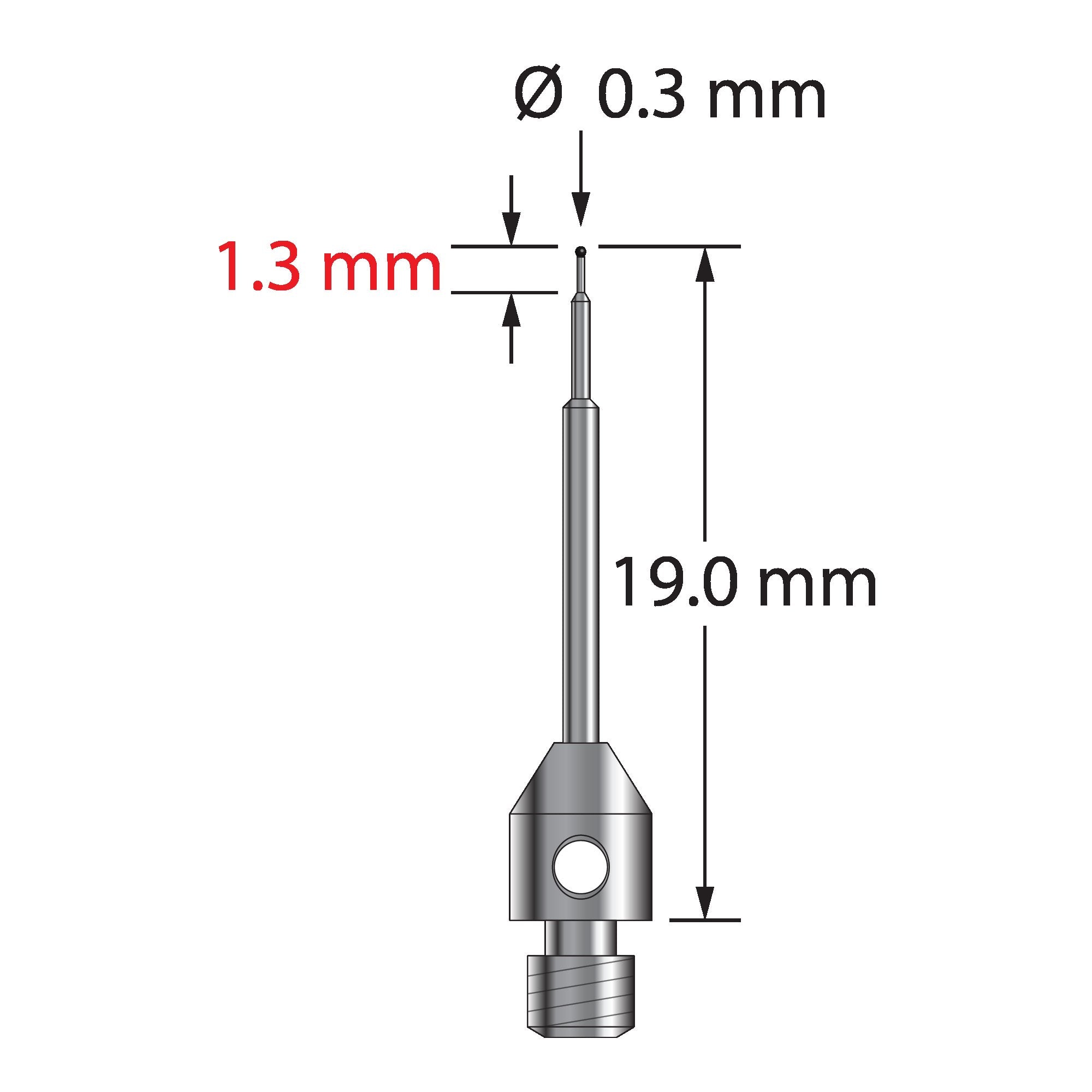

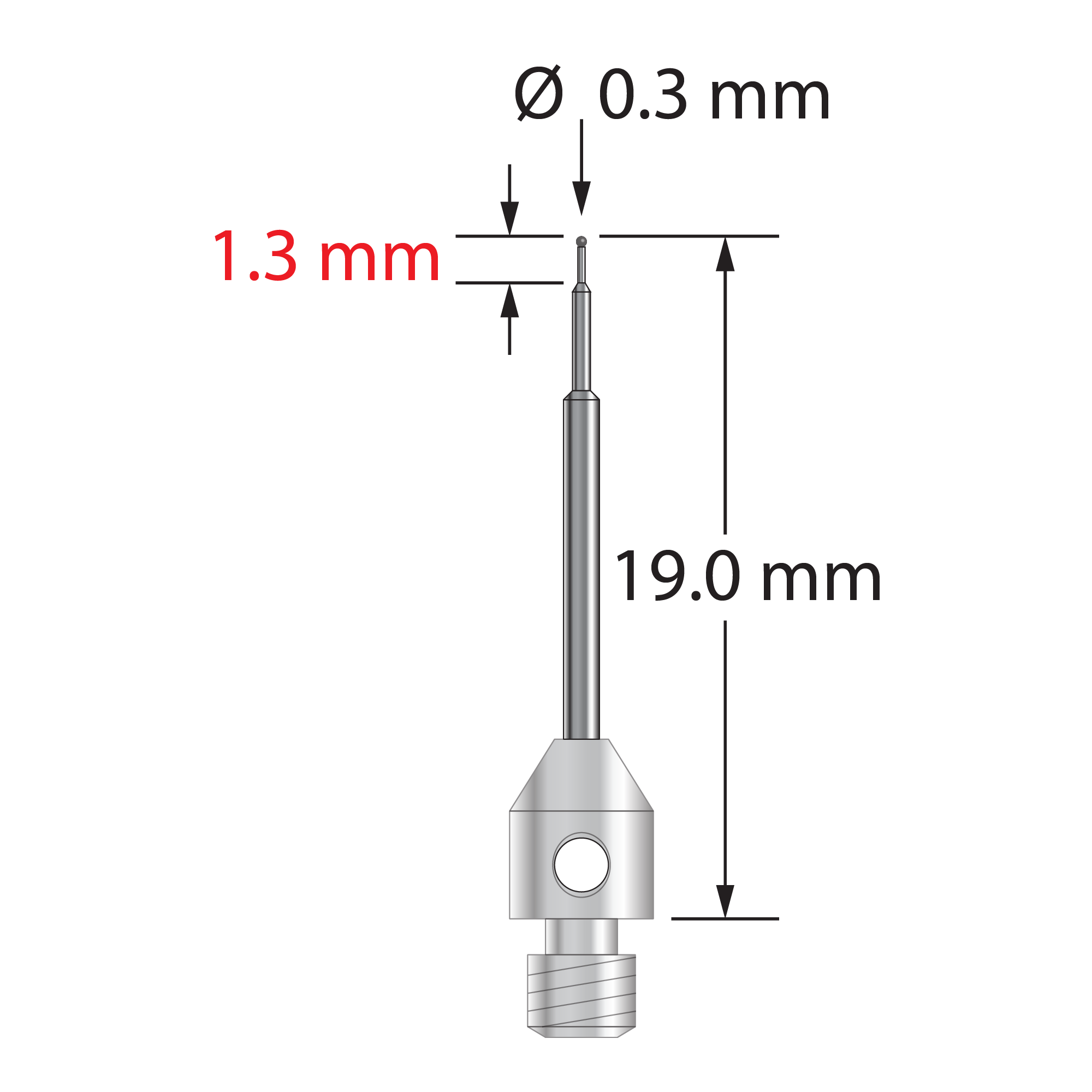

M3 stylus with 0.3 mm diameter carbide ball, stepped carbide shaft, and 4.0 mm diameter x 5.0 mm long stainless steel base. Minor shaft diameter is 0.2 mm, intermediate shaft diameter is 0.5 mm, and major shaft diameter is 1.0 mm. Overall stylus length is 19.0 mm. Stylus weight is 0.54 gram.

Dimensions

ball diameter: 0.3
base diameter: 4.0
length 1: 19.0
length 2: 14.0
length 3: 1.3
stem diameter: 1.0
stem first step diameter: 0.2
stem step diameter: 0.5

Materials

ball material: Carbide
base material: Stainless Steel
stem material: Carbide
